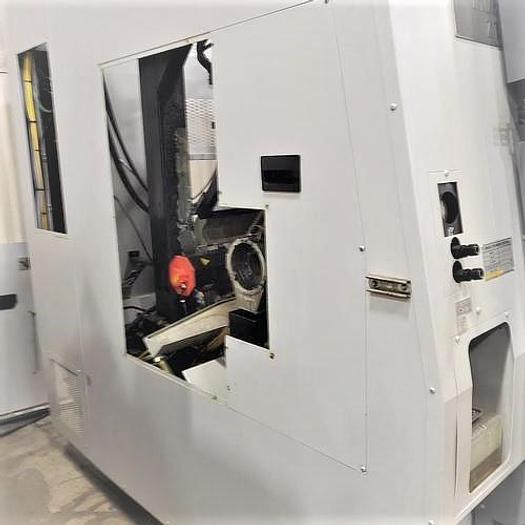

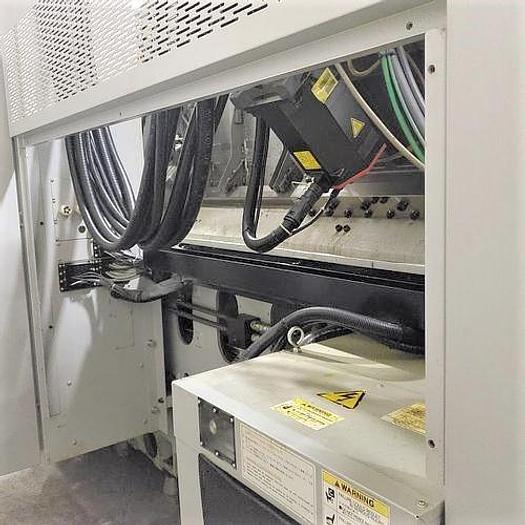

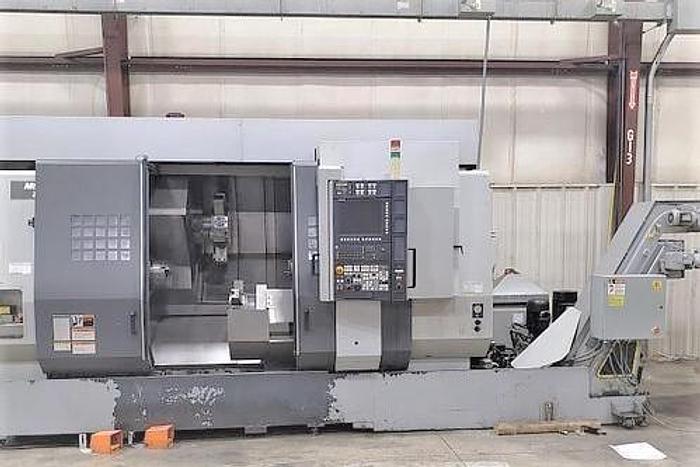

2008 Mori Seiki ZT2500Y
2008 Mori Seiki ZT2500Y
$89,500 (USD)
Location:Ohio
Description

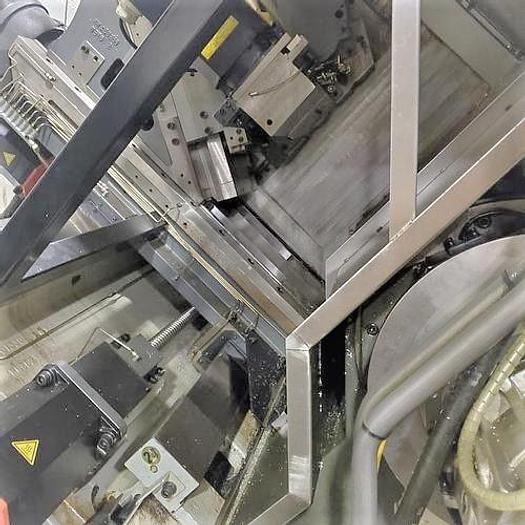

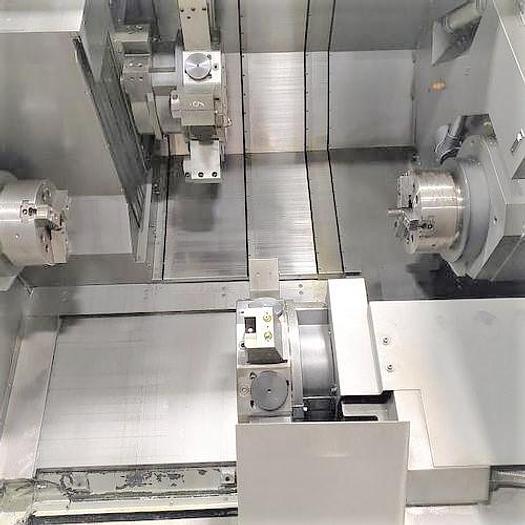

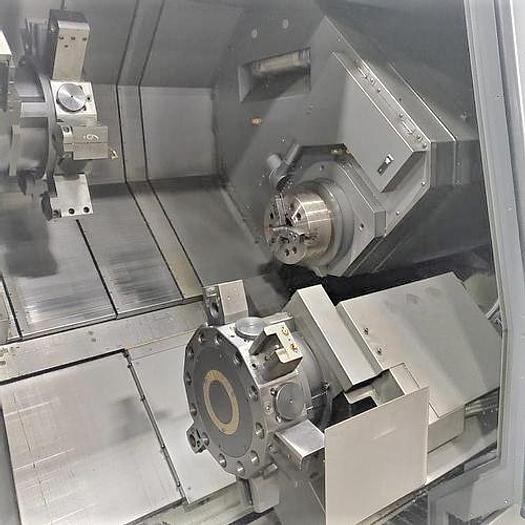

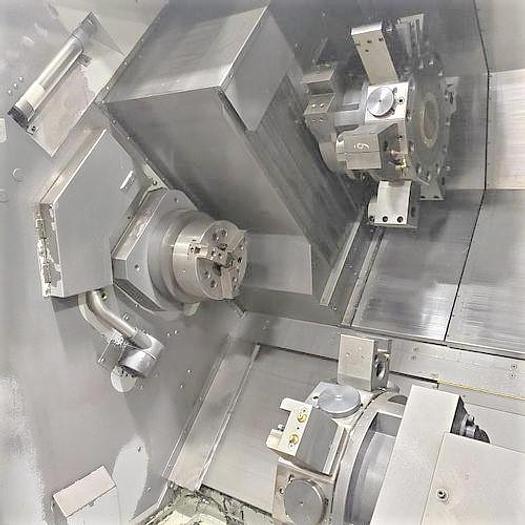

Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design with facing spindles
Y Axis Capability on Upper Turret
Full C Axis on both Main and Second Spindle
Live Milling / Drilling Capability

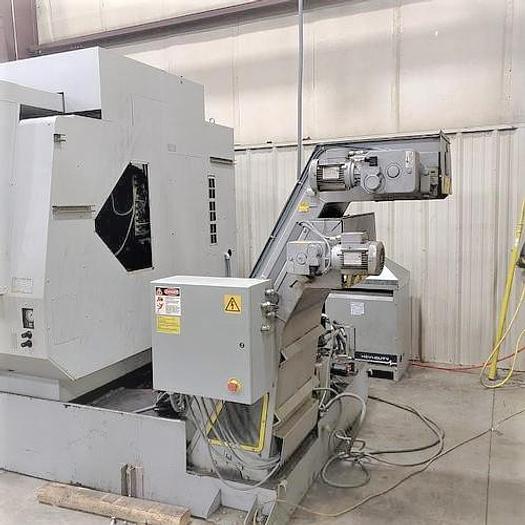

Mayfran ConSep 2000 Chip Conveyor
Parts Catcher
Tool Presetter for both Spindles
Shower Coolant System
Thru Spindle Coolant System, Spindle One
Chuck Air Blast (Both Chucks)
Programmable Data Input G10
Custom Macro B and 600 Common Variables, Interruption Type
Work Coordinate System, 48 Sets
500 MB User Memory, 2 MB part Program Storage (1280 Meter)
10 Sets Additional M-Codes
Automatic Double Door
Chuck High/Low Pressure System (Both Chucks)
Cycle Completion Lamp and Buzzer, Triple
Coolant Oil Skimmer
480V/220V Transformer
Two 110 Volt Receptacles
(6) Turning Holders
(6) Boring Bar Holders
(1) Live Tool Holders

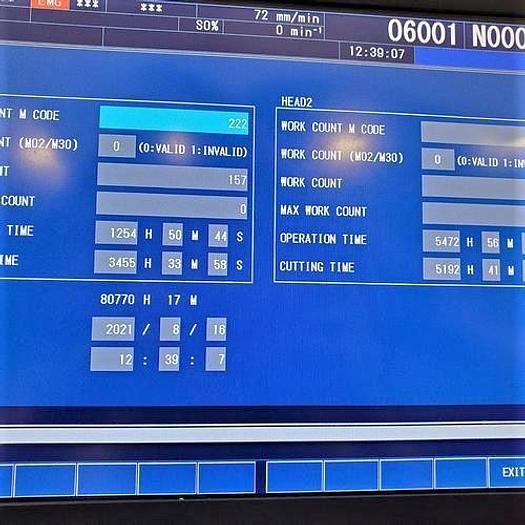

Head 1 Cutting Hours 3455
Head 2 Cutting Hours 5192
Original Price with these options $576k
Specifications
| Manufacturer | Mori Seiki |
| Model | ZT2500Y |
| Year | 2008 |
| Condition | Used |
| Stock Number | 117982 |
| Chuck Sizes | 10" 3-Jaw Hydraulic both spindles |
| Maximum Swing | 27.7" |
| Maximum Turning Diameter Upper Turret / Lower Turret | 15.3" / 14.17" |
| Distance Between Spindles | 51.18" |
| Maximum Turning Length | 37.75" |
| X-Axis Travel Upper Turret / Lower Turret | 11.02" / 7.87" |
| Y-Axis Travel | +/- 2.76" |
| Z-Axis Travel Upper Turret / Lower Turret | 37.8" / 37.8" |
| B-Axis Travel (Subspindle) | 38.78" |
| C-Axis Spindle Rotation - Both | 0.001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.58" / 3.07" |
| Spindle Speeds | 40 - 4,000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Number of Turrets | 2 Turrets |
| Number of Turret Positions | 12 Stations each |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |
| Rapid Traverse Rates | 944 IPM |
| Machine Dimensions LxWxH | 165"x109"x109.33" |
| Machine Weight | 28,600 lbs |
