1981 Mazak M4/1500
No longer available
1981 Mazak M4/1500
$7,950 (USD)
Location:Oklahoma
Description

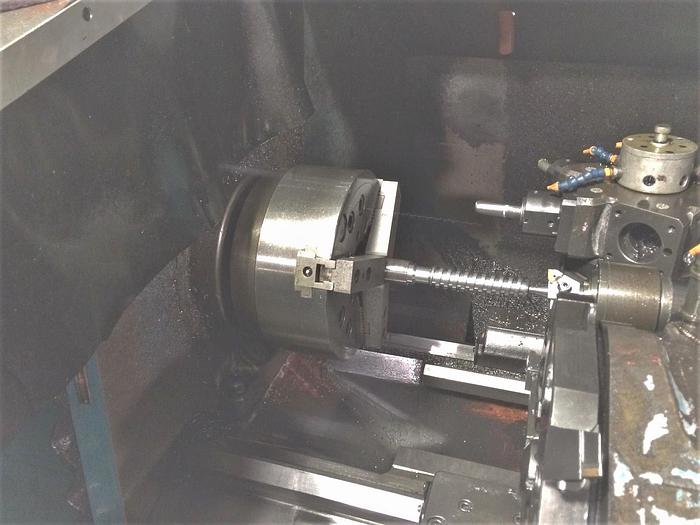

12" 3 Jaw Hydraulic Chuck Tailstock
Chip Conveyor Coolant System with Tank & Pump RS-232C Port for DNC Interface Multi-Tap Transformer All Available Manuals All Available Tooling & Miscellaneous Spare Parts
Runs Good
Specifications

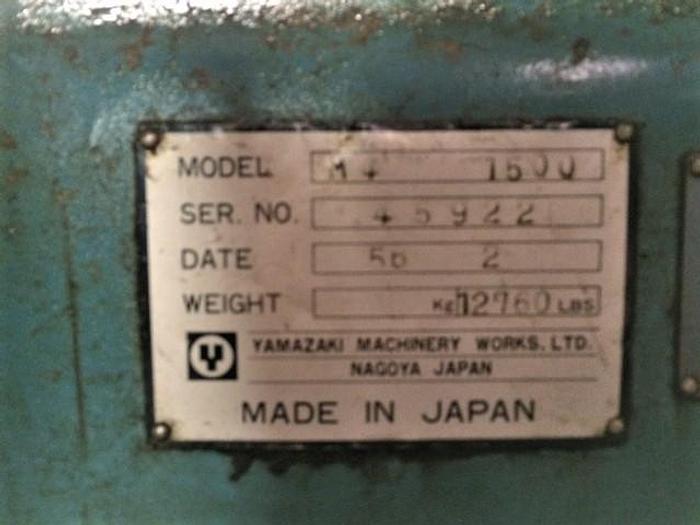

| Manufacturer | Mazak |
| Model | M4/15000 |
| Year | 1981 |
| Condition | Used |
| Stock Number | 117979 |

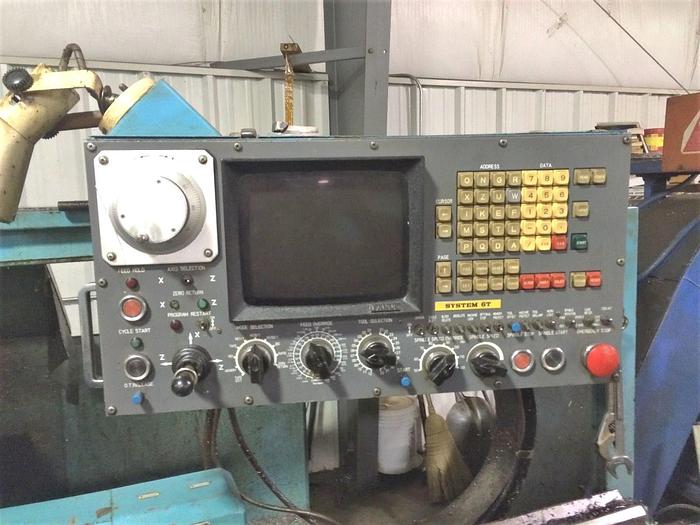

| Control | Fanuc 6TB Control |
| Chuck Size | 12" Hydraulic Chuck |
| Maximum Swing over Bed | 22" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Machining Diameter | 21.26" |
| Maximum Machining Length | 60" |
| Maximum Distance Between Centers | 59.37" |
| X-axis travel | 14.37" |
| Z-Axis Travel | 60.2" |
| Spindle Nose / Spindle Bore | A2-8" / 3.15" |
| Spindle Speed | 5 - 2,200 RPM |
| Spindle Motor | 25 HP |
| Number of Turrets | 2 Turrets |
| Number of Turret Positions | 8 Position Front / 6 Station Rear |
| Rapid Traverse Rates X/Z | 472 IPM / 630 IPM |
| Tailstock Quill Diameter / Center | 3.34" / MT #5 |
| Machine Dimensions | 191.5" x 114" x 77.3" |
| Machine Weight | 12,760 lbs. |
