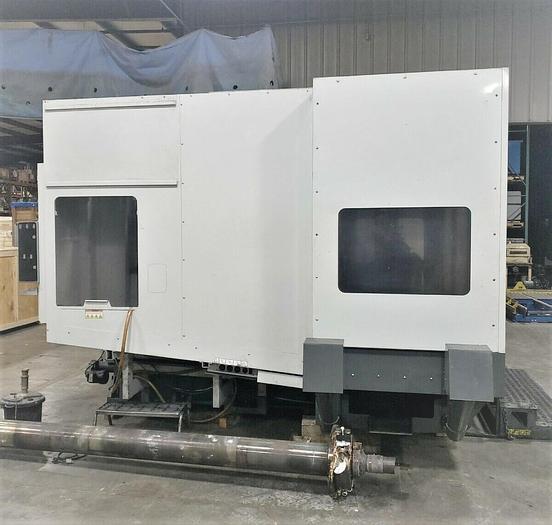

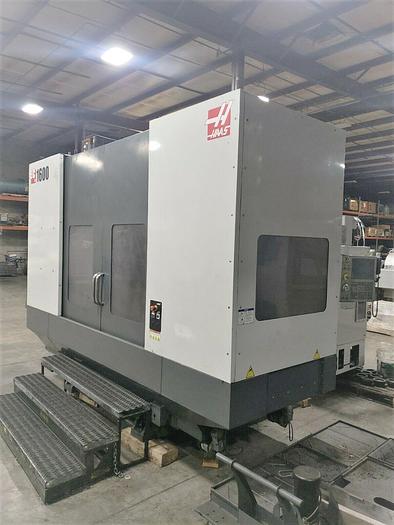

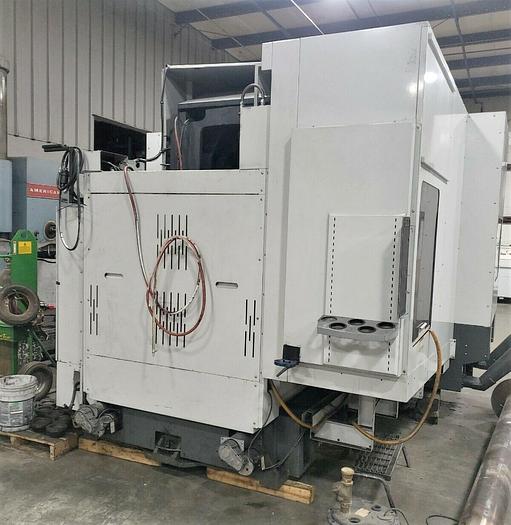

2012 Haas EC-1600
No longer available
2012 Haas EC-1600
$170,000 (USD)
Indiana
Description

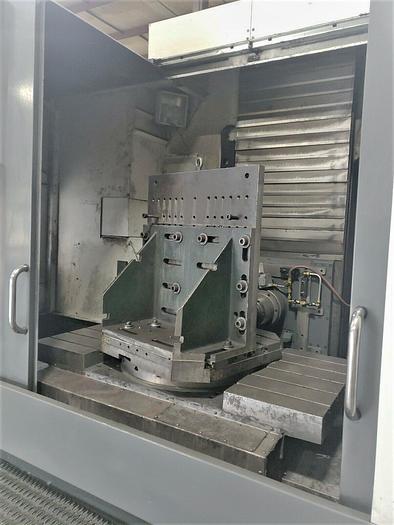

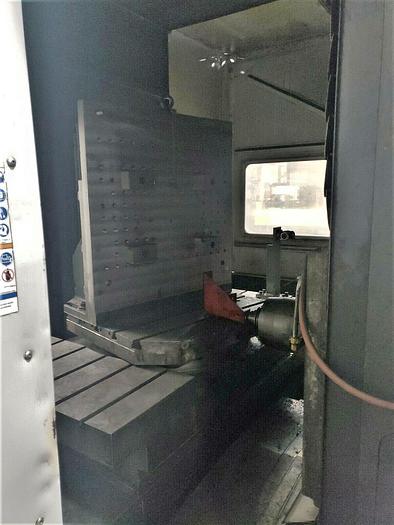

Full 4th Built in Rotary Platter
Wireless Intuitive Probing System (missing 50 taper part probe)

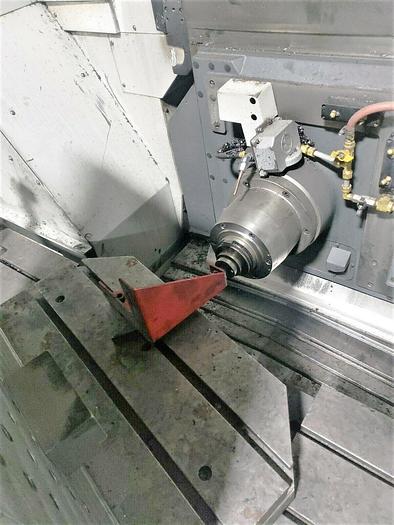

Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros

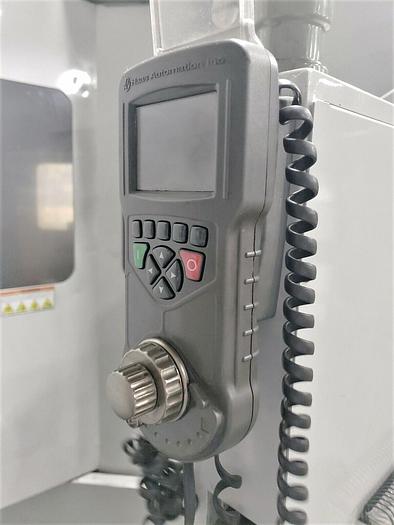

Remote Jog Handle w/ Color LCD
Dual Chip Augers
Programmable Coolant Nozzle
USB Port Interface
RS 232 Port Interface
Rigid Tapping
Power Failure Detection Module
Memory Key Lock Switch

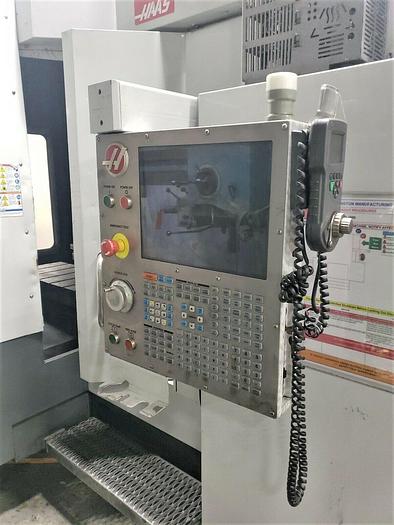

15" Color LCD Monitor
Operator Steps
Specifications
| Manufacturer | Haas |
| Model | EC-1600 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 117977 |
| Table Size | 64" x 36" |
| Maximum Table Load | 10,000 lbs |
| X-axis travel | 64" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 32" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 30 HP - 2-Speed Geared Head |
| Tool Magazine Capacity | 30 Position ATC |
| Rapid Traverse Rates | 540 IPM |
| Maximum Tool Diameter / Length / Weight | 10" / 20" / 30 lbs |
| Machine Dimensions LxWxH | 153" x 146" x 113" |
| Machine Weight | 35,500 lbs |
