2014 Hurco VM-30I
No longer available
2014 Hurco VM-30I
Location:Ontario, Canada
Description
USB Port Interface
RS-232 Interface
Flood Coolant System
Machine Status Condition Lights
Available Manuals
Specifications
| Manufacturer | Hurco |
| Model | VM-30I |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117976 |

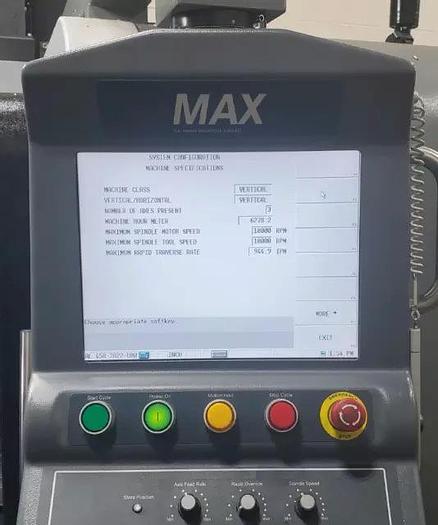

| Machine Control | CNC Max 5 |
| Table Size | 52" x 20" |
| Maximum Table Load | 2,000 lbs |
| X-Axis Travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Speeds | 10,000 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 20 Position Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 4.7" / 11.8" / 15 lbs. |
| Rapid Traverse Rates | 944 ipm |
| Machine Dimensions LxWxH | 160.9"x112.6"x100.1" |
| Machine Weight | 9,339 lbs. |
