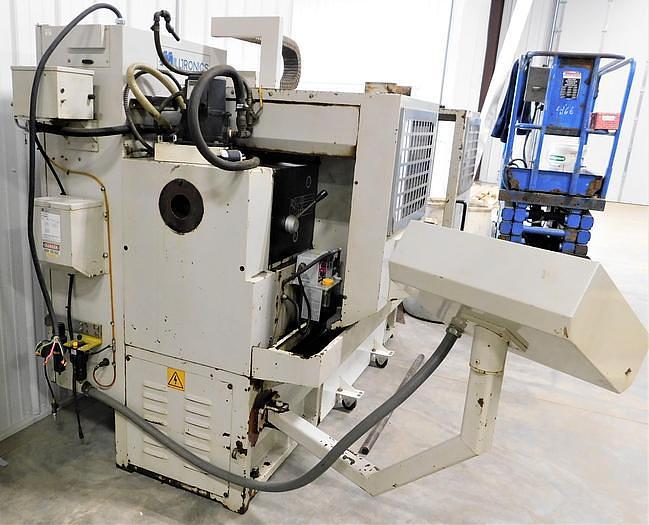

1999 Milltronics ML17
No longer available
1999 Milltronics ML17
Location:Iowa
Description
3-Speed Gearbox
Tailstock

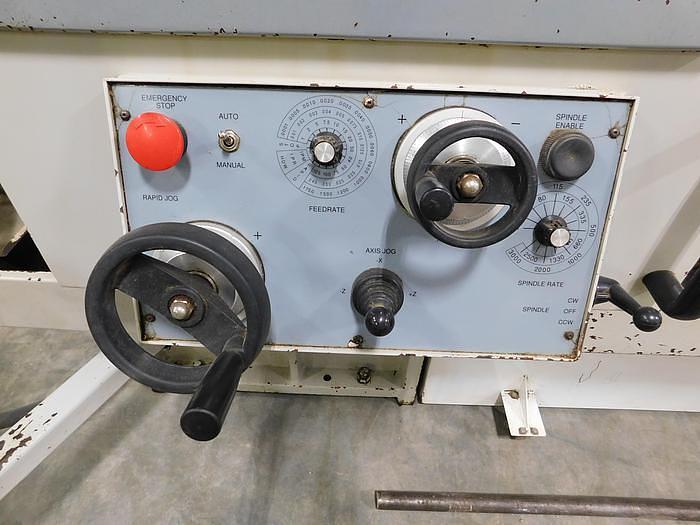

Dual Electronic Handwheel
Flood Coolant
High Torque Vector Drive
Specifications
| Manufacturer | Milltronics |
| Model | ML17 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 117972 |

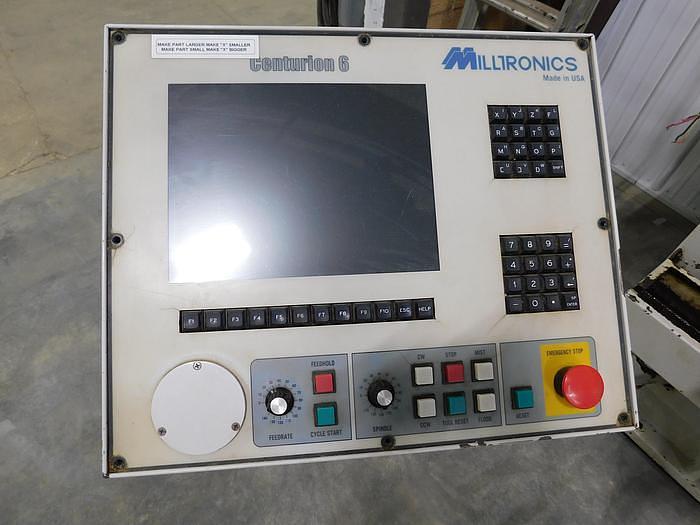

| Machine Control | Centurion 6 |
| Chuck Size | 10" 3-Jaw Manual |
| Maximum Swing over Bed | 17.2" |
| Maximum Swing Over Cross Slide | 7.5" |
| Distance Between Centers | 39" |
| Maximum Swing | 24" |
| X-Axis Travel | 10.25" |
| Z-Axis Travel | 40" |
| Subspindle Nose / Bore / Bar Capacity | D1-6 Camlock / 2.375" / 2.375" |
| Spindle Speeds | 10-2,600 rpm |
| Spindle motor | 12/10 hp |
| Turret Type | Dorian 8-Station |
| Rapid Traverse Rates | 250 ipm |
| Machine Dimensions LxWxH | 120"x60"x76" |
| Machine Weight | 4,500 lbs |
