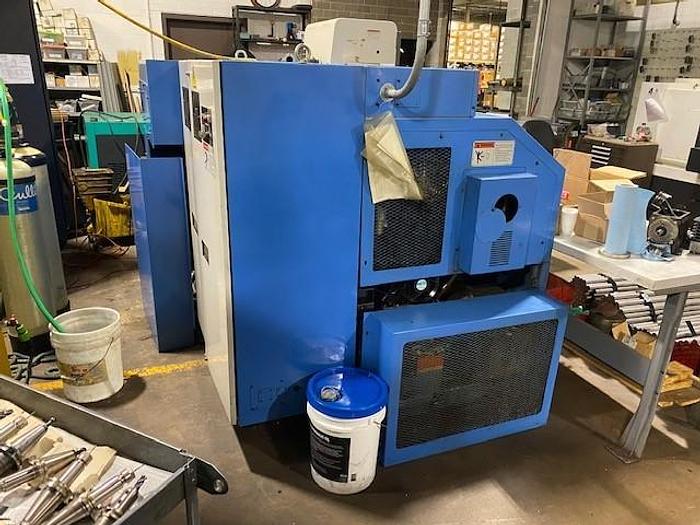

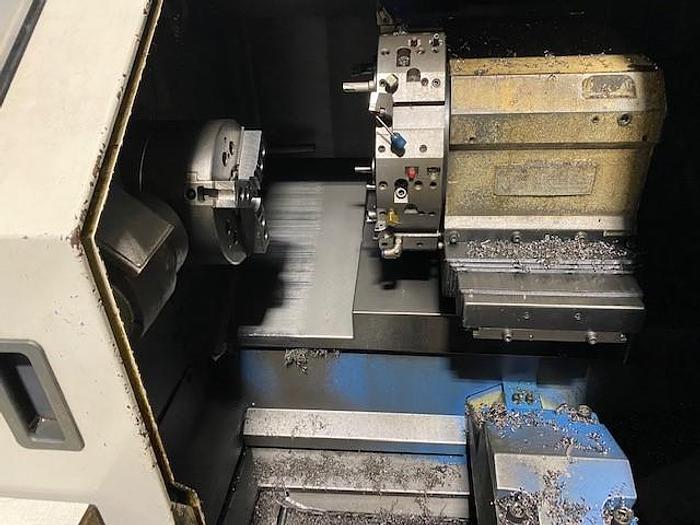

1998 Hyundai Hit-18S

No longer available

1998 Hyundai Hit-18S

Illinois

Description

Tailstock w/Programmable Quill

Chip Conveyor

Coolant System

RS-232 Port

Automatic Tool Eye

All Available Manuals

Specifications

ManufacturerHyundai
ModelHit-18S
Year1998
ConditionUsed
Stock Number117970

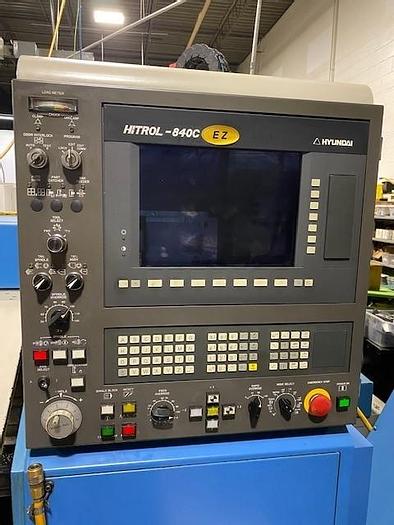

Machine ControlSiemens 840C
Chuck Size10" 3-Jaw Hydraulic
Maximum Swing17.32"
Maximum Cutting Diameter11"
Maximum Cutting Length19.69"
X-axis travel7.09"
Z-Axis Travel20.08"
Spindle Nose / Bore / Bar CapacityA2-8 / 3.15" / 2.8"
Spindle Speeds36 to 3,600 rpm
Spindle Motor 30 Minutes/Continuous20 HP / 15 HP
Number of Turret Positions8 Pos
Rapid Traverse Rates1181 IPM
Tailstock Body Travel / Quill Travel18.9" / 5.12"
Machine Dimensions LxWxH101"x64"x72"
Machine Weight10,500 lbs
