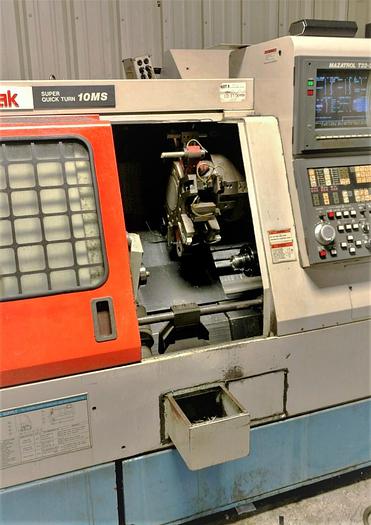

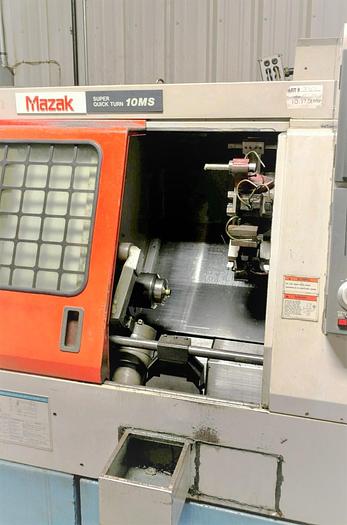

1991 Mazak SQT10MS
No longer available
1991 Mazak SQT10MS
$29,500 (USD)
Location:Georgia
Description
Full "C" Axis Spindle Rotation Live Milling/Drilling Capabilty Subspindle Collet Chuck - Main Collet Chuck - Subspindle
Automatic Parts Catcher

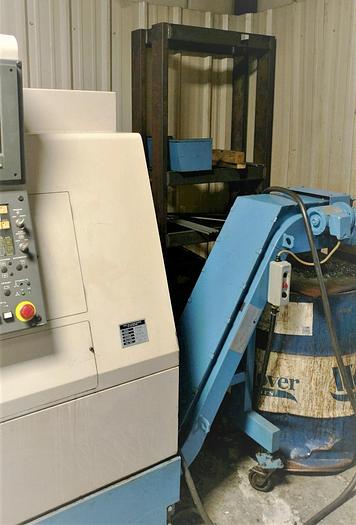

Chip Conveyor Automatic Tool Eye All Available Manuals
All Available Tool Holders Multi-Tap Transformer
Specifications
| Manufacturer | Mazak |
| Model | SQT10MS |
| Year | 1991 |
| Condition | Used |
| Stock Number | 117954 |

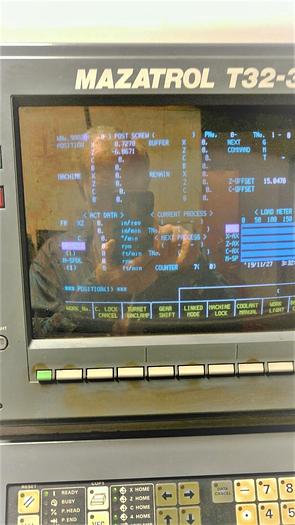

| Control | Mazatrol T32-3 |
| Chuck Sizes Main / Subspindle | Collet Chuck / Collet Chuck |
| Maximum Swing | 17.13" |
| Maximum Swing over Bed | 14.56" |
| Maximum Cutting Diameter | 9" |
| Maximum Turning Length | 12.02" |
| Maximum Bar Capacity | 1.65" |
| X-axis travel | 6.31" |
| Z-Axis Travel | 17.93" |
| B-Axis Travel (Subspindle) | 18.06" |
| Spindle Nose / Spindle Bore | A2-5" / 2.04" |
| Spindle Speeds | 35 - 6,000 RPM |
| Spindle Motor 30 Minutes/Continuous | 15 HP / 10 HP |
| Subspindle Speed | 180 - 6,000 RPM |
| Subspindle Motor | 7.5 HP |
| Rotary Tool Speed / Rotary Motor | 120 - 3,000 RPM / 3 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1180 IPM |
| Machine Dimensions | 105.5" x 58" x 74.5" (machine only) |
| Machine Weight | 8,490 lbs. (machine only) |
