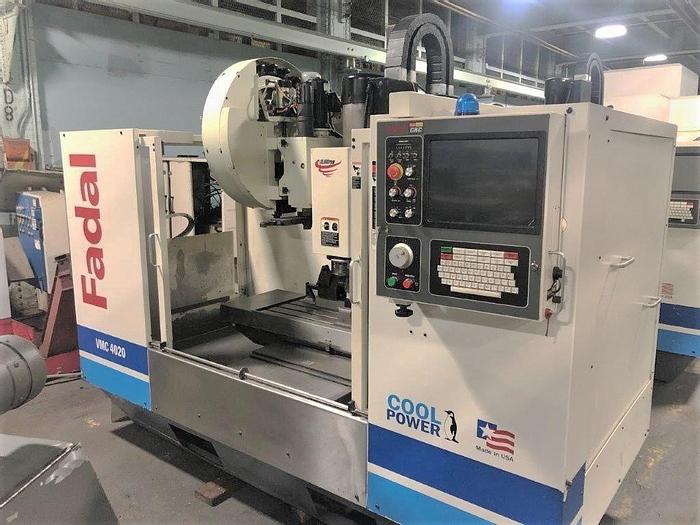

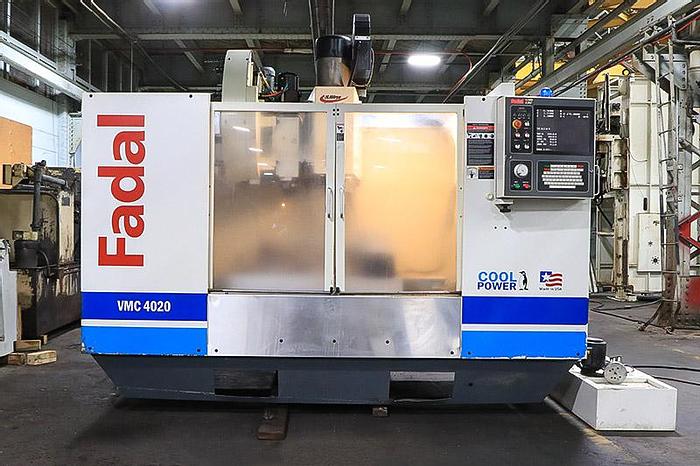

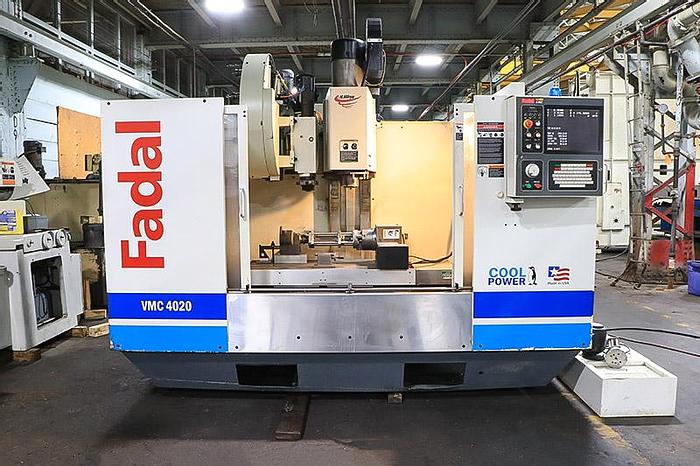

2004 Fadal VMC4020HT
No longer available
2004 Fadal VMC4020HT
$19,950 (USD)
New Jersey
Description

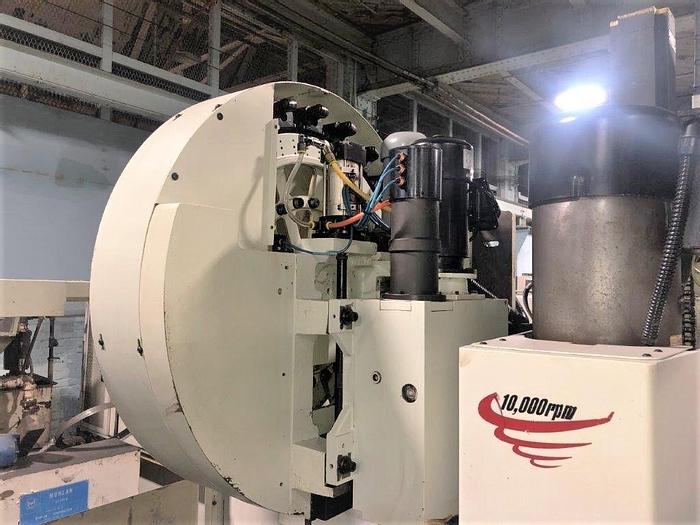

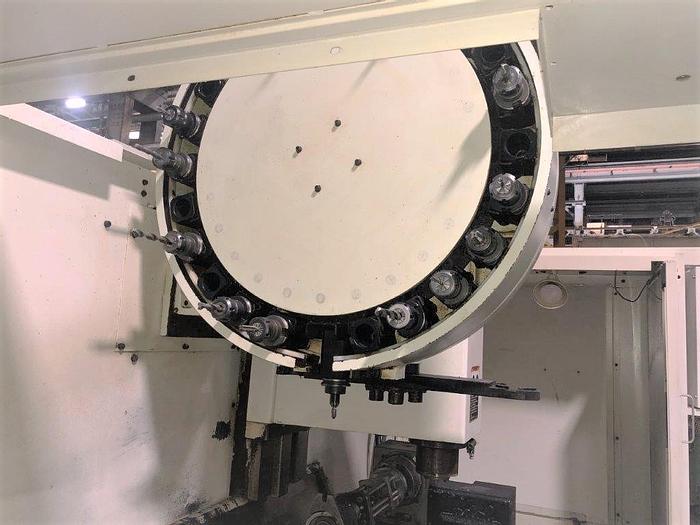

24 Station Side Mounted Tool Changer
4th Axis Drive

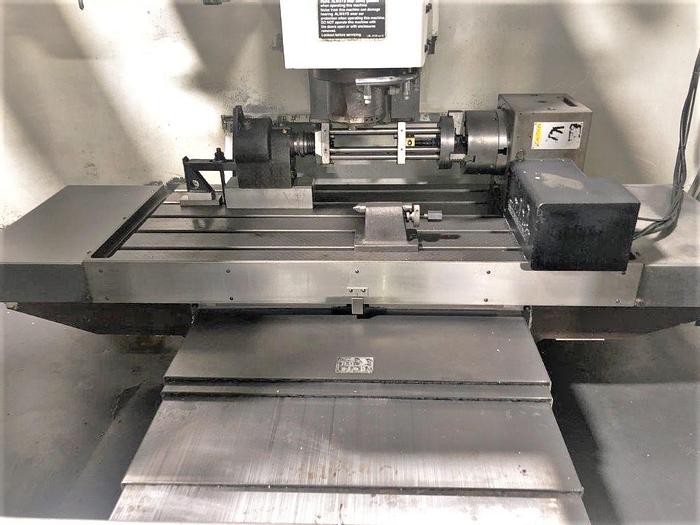

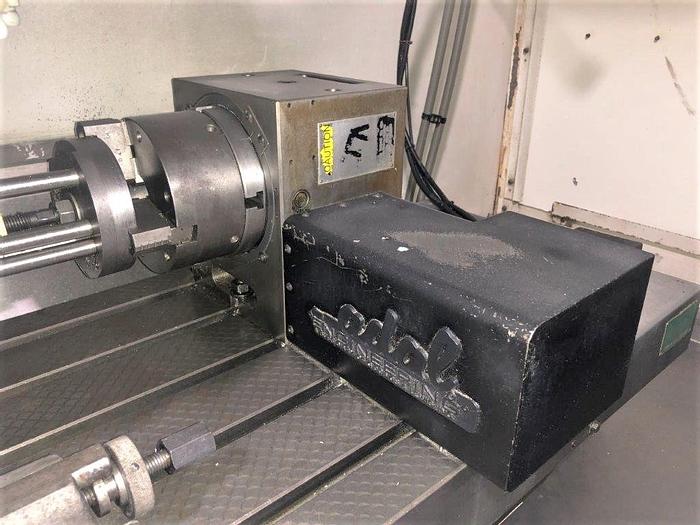

Fadal VH65 4th Axis Rotary Table

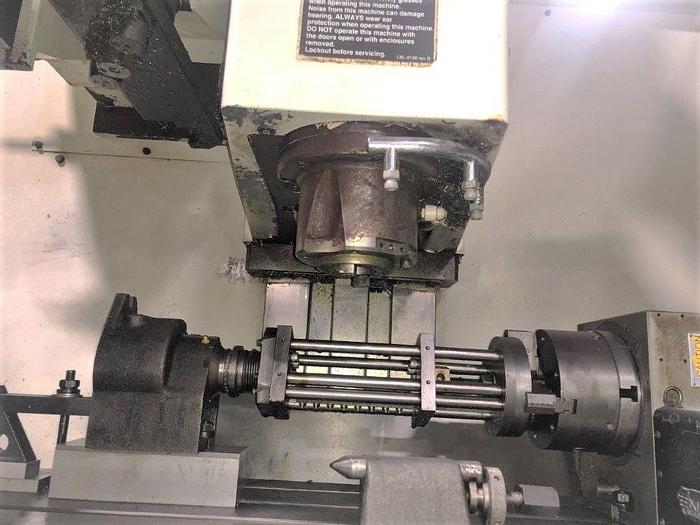

Outboard Support for 4th Axis
10,000 RPM Spindle
Boxed Ways
Rigid Tapping
High Torque Spindle Motor
2 Speed Spindle Drive
RS 232 Port Interface

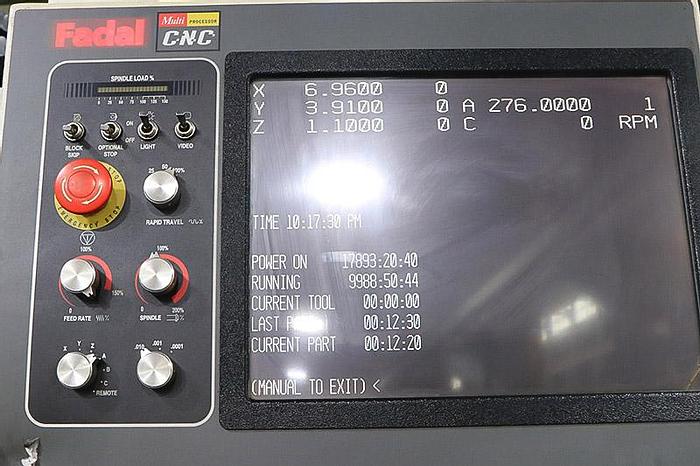

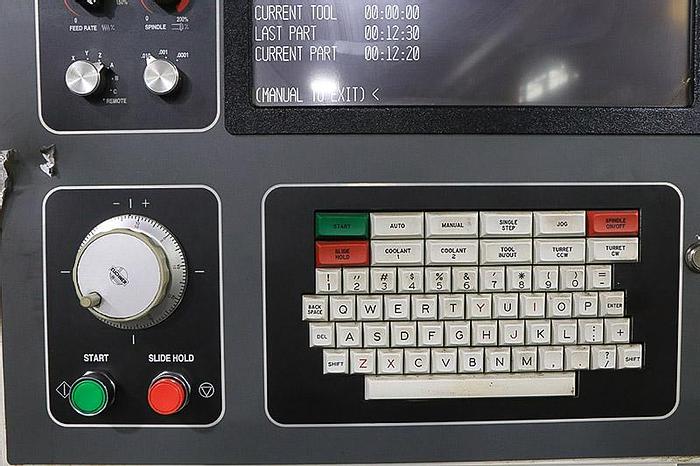

Multi Processor Control
Coolant System with Tank & Pump
Wired 240V 3 Phase Electrics
9,988 Running Hours
Specifications
| Manufacturer | Fadal |
| Model | VMC4020HT |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117951 |
| Control | Fadal Multi Processor Control |
| Table Size | 48" x 20" |
| Maximum Table Load | 3,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 24" |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 HP |
| Tool Magazine Capacity | 24 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 800 IPM |
| Machine Dimensions LxWxH | 116" x 87" x 104" |
| Machine Weight | 11,550 lbs. |
