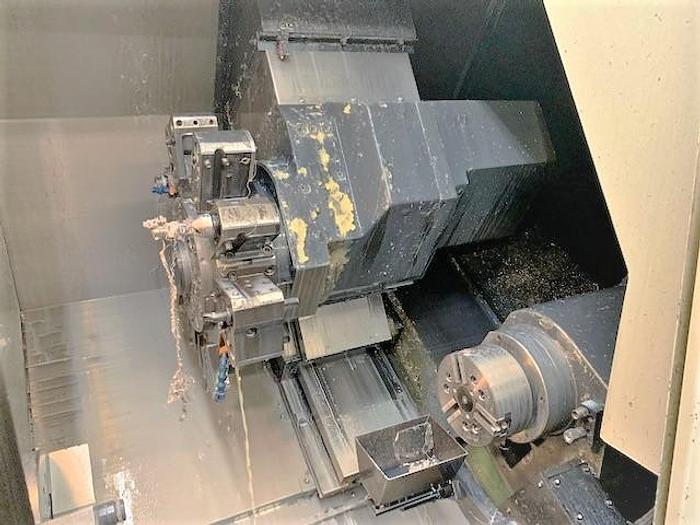

2010 Doosan Puma 2000SY
No longer available
2010 Doosan Puma 2000SY
$89,900 (USD)
Location:California
Description
Subspindle Full C Axis Spindle Rotation - Both Spindles Live Milling/Drilling Capability Y Axis Capability Parts Catcher Parts Exit Conveyor 8" 3 Jaw Hydraulic Chuck on Main Spindle 6" 3 Jaw Hydraulic Chuck Subspindle
Tool Presetter PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways All Available Static Tooling
(3) Live Tool Holders
Specifications
| Manufacturer | Doosan |
| Model | Puma 2000SY |
| Year | 2010 |
| Condition | Used |
| Stock Number | 117948 |
| Control | Fanuc 18i-TB |
| Chuck Sizes Main / Subspindle | 8" Hyd Chuck / 6" Hyd Chuck |
| Maximum Swing over Bed | 23.6" |
| Maximum Cutting Diameter | 13" |
| Distance Between Spindles | 33.8" |
| Maximum Bar Capacity - Main / Subspindle | 2.625" / 1.375" |
| X-axis travel | 9.8" |
| Y-Axis Travel | 3.94" |
| Z-Axis Travel | 32.6" |
| B-Axis Travel (Subspindle) | 22.8" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 2.99" |
| Spindle Speeds - Main | 5,000 RPM |
| Spindle Motor - Main | 20 HP |
| Subspindle Nose / Subspindle Bore | A2-5" / 1.77" |
| Subspindle Speed / Subspindle Motor | 6,000 RPM / 10 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z/Y/B | 790 / 945 / 295 / 787 IPM |
| Machine Dimensions | 125" x 67" |
| Machine Weight | 10,670 lbs. |
