2008 Haas GT-20 Chucker
No longer available

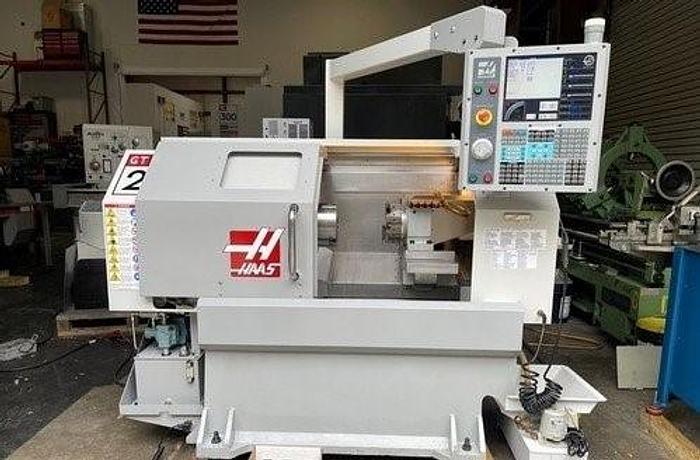

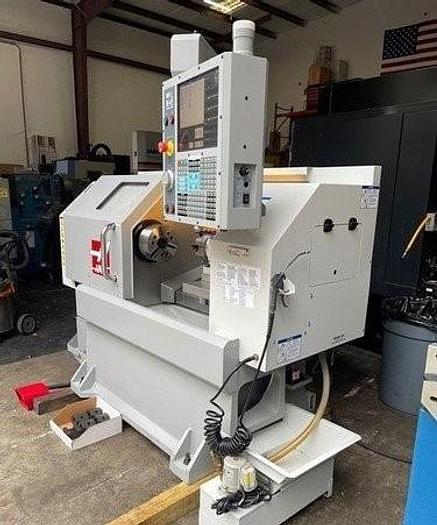

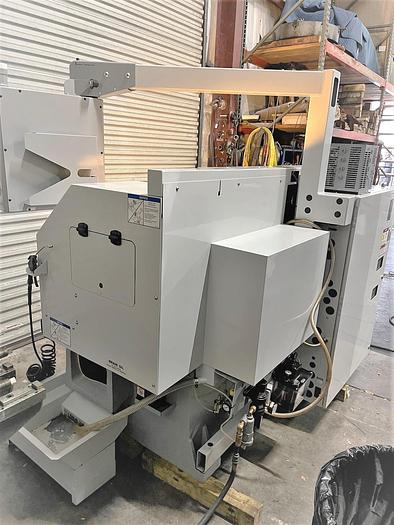

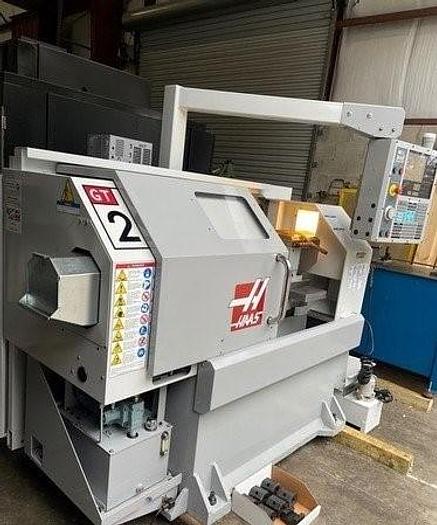

2008 Haas GT-20 Chucker
$28,950 (USD)
Location:Florida
Description

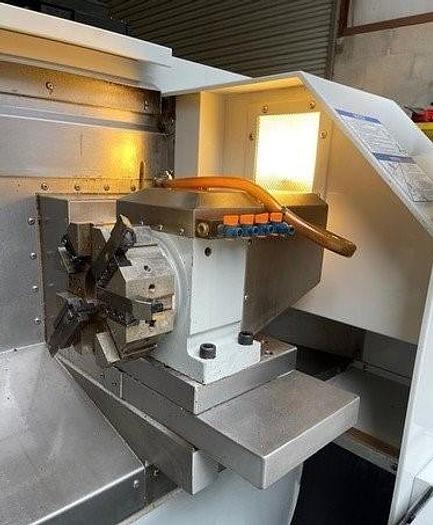

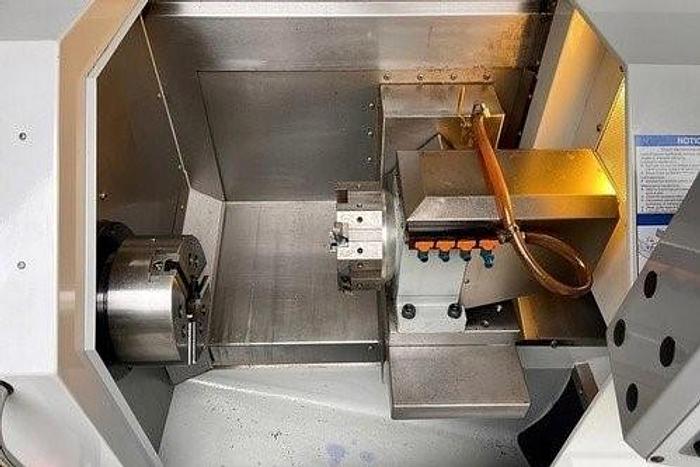

8" Samchully 3 Jaw Hydraulic Chuck 8 Position Bolt On Turret
Visual Quick Code Programming Coolant Pan/Pump RS 232 Port Interface
Brushless Barfeed Interface Only
Leveling Pads All Available Tooling All Available Manuals

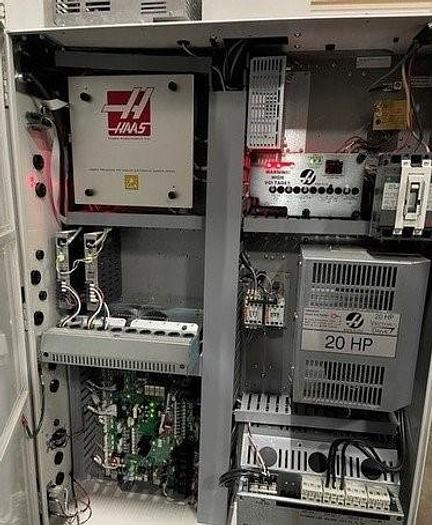

Wired 208-230V Electrics

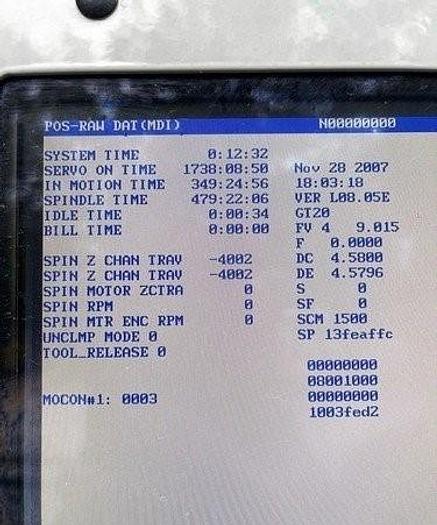

Servo On Hours 1,738
Motion Hours 349
Spindle Hours 479
*From a tech school
Specifications
| Manufacturer | Haas |
| Model | GT-20 Chucker |
| Year | 2008 |
| Condition | Used |
| Stock Number | 117944 |
| Quantity | 1 |
| Control | Haas 32 BIT |
| Chuck Size | 8" Hydraulic Chuck |
| Maximum Swing over Bed | 13" |
| Maximum Turning Diameter | 11" |
| Maximum Turning Length | 12" |
| Maximum Bar Capacity | 1.5" |
| X-Axis Travel | 6" |
| Z-Axis Travel | 12" |
| Spindle Nose / Spindle Bore | A2-6" / 2" |
| Spindle Speeds | 3,000 RPM |
| Spindle Motor | 20 HP |
| Number of Tool Positions | 8 Position Turret |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions | 90" x 48" x 74" |
| Machine Weight | 5,650 lbs. |
