2011 Mazak Integrex i-150
No longer available
2011 Mazak Integrex i-150
$179,000 (USD)
Location:Florida
Description

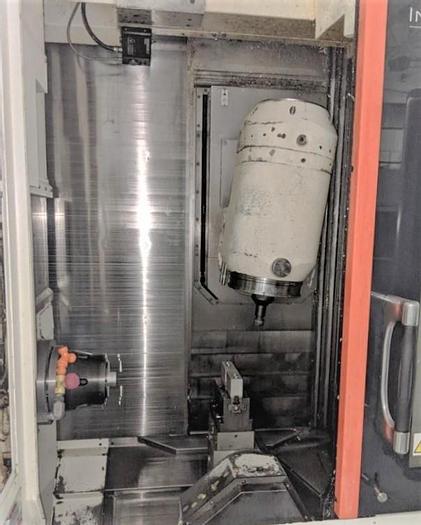

B Axis Pendulum Head 225 Degrees Movement
Full C-Axis
Live Milling / Drilling Capability

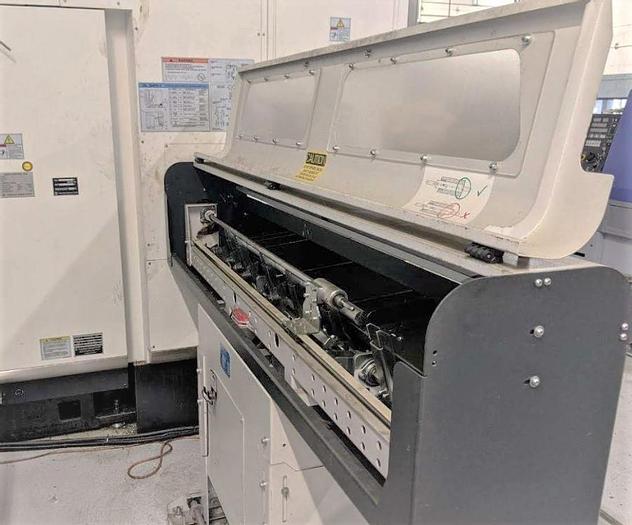

LNS Quick Load Servo Bar Feeder

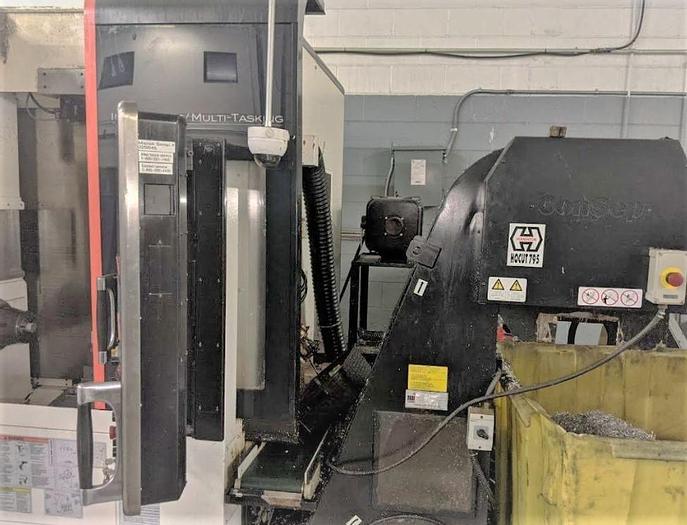

Chip Conveyor
Parts Catcher
Parts Exit Conveyor
Work Holding Device
Collet Chuck
USB Port Interface
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Integrex i-150 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 117942 |
| Machine Control | Mazatrol Matrix Nexus |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 15.75" |
| Maximum Swing over Bed | 13.39" |
| Maximum Machining Length | 15.16" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 14.57" |
| Y-Axis Travel | 7.87" |
| Z-Axis Travel | 17.13" |
| W-Axis Travel | 11.81" |
| B-Axis Tilt Movement | 200 Degrees |
| C-Axis Rotation | .001 Degrees |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates X/Y/Z/C | 1181ipm / 1024 ipm / 1299 ipm / 555 ipm |

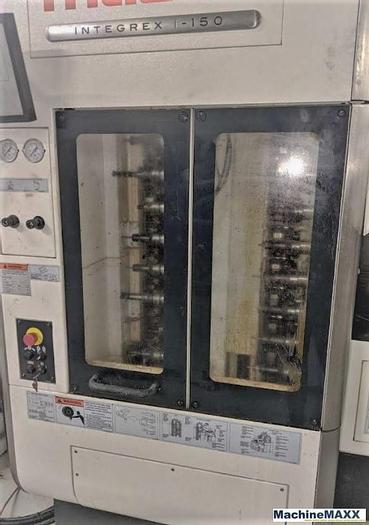

| Tool Magazine Capacity | 36 Position Tool Changer |
| Spindle Taper | KM 63 |
| Rotary Tool Speed / Rotary Motor | 12,000 RPM / 10 HP |
| Maximum Tool Diameter / Length / Weight | 3.54" / 7.87" / NA |
| Machine Dimensions LxWxH | N/A |
| Machine Weight | 19,530 lbs |
