2003 Nakamura Tome WTW-150
No longer available
2003 Nakamura Tome WTW-150
$82,500 (USD)
Location:Ohio
Description
Dual Spindles

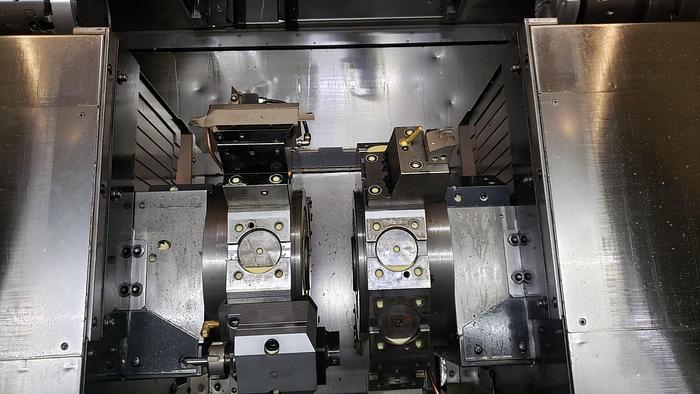

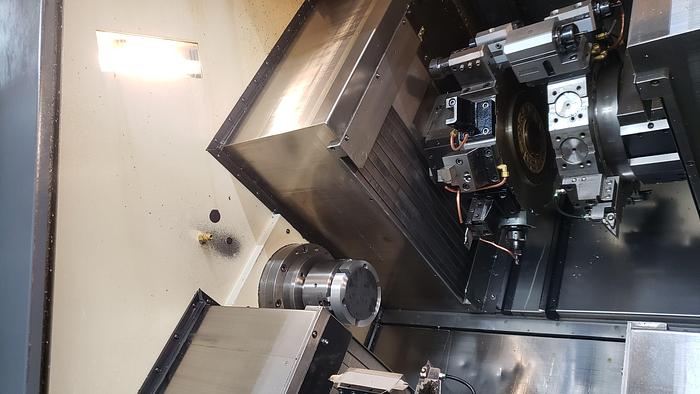

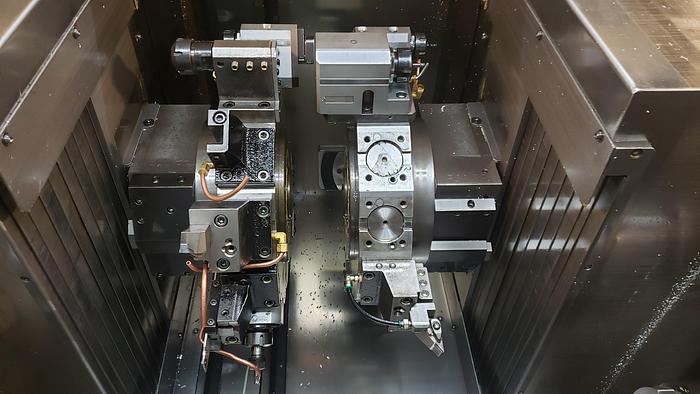

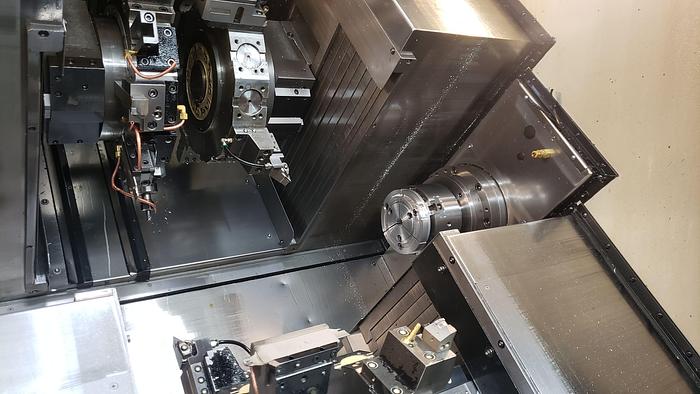

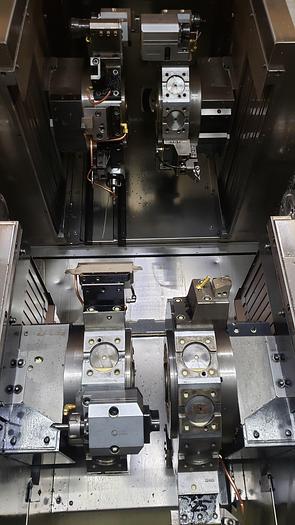

(4) Turret Design with 2 Upper and 2 Lower
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability on the 2 Upper Turrets Only

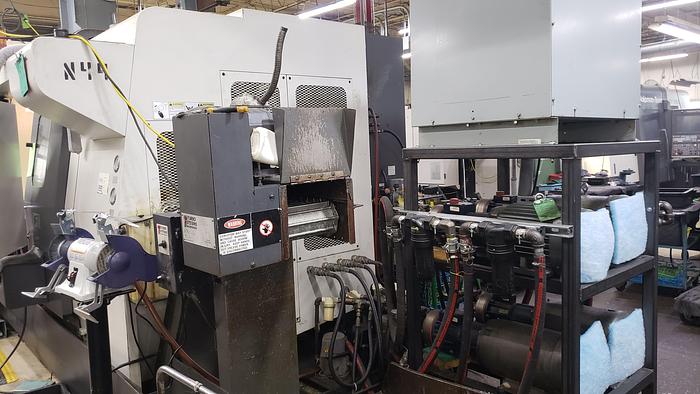

Chip Conveyor
Parts Catcher
Miscellaneous Static Holders
Specifications
| Manufacturer | Nakamura Tome |
| Model | WTW-150 |
| Year | 2003 |
| Condition | Used |
| Stock Number | 117940 |
| Chuck Sizes Main / Subspindle | 6" Hydraulic / 6" Hydraulic |
| Maximum Turning Diameter | 12.2" |
| Maximum Turning Length | 10.04" |
| Maximum Bar Capacity Main Spindle / Subspindle | 2.56" / 2.01" |
| Distance Between Spindles | 42.13" |
| X1-Axis Travel / X2-Axis Travel - Upper Turrets | 8.17" / 8.17" |
| Y1-Axis Travel / Y2 Axis Travel - Upper Turrets | +/- 1.18 / +/- 1.18" (2.36") |
| Z1-Axis Travel / Z2-Axis Travel - Upper Turrets | 11.81" / 11.81" |
| B2-Axis Travel - Subpsindle | 34.47" |
| X3-Axis Travel / X4-Axis Travel - Lower Turrets | 8.17" / 8.17" |
| Z3-Axis Travel / Z4-Axis Travel - Lower Turrets | 11.81" / 11.81" |
| Main & Subspindle Speeds | 4,000 RPM / 5,000 RPM |
| Spindle Motor - Both Spindles | 20 HP |
| Live Milling Speed / Motor - All Turrets | 6,000 RPM / 5 HP |
| Number of Turret Positions | 12 Sided / 24 Positions - All Turrets |
| Machine Dimensions LxWxH | 151.57" x 91.73" x 91.34" |
| Machine Weight | 23,148 lbs |
