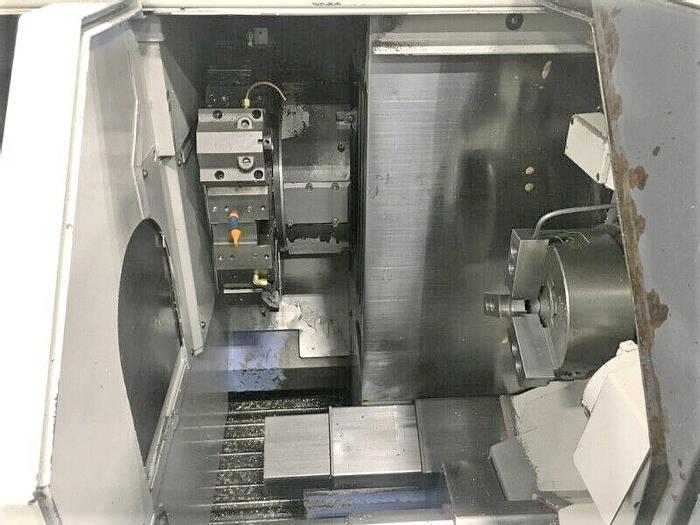

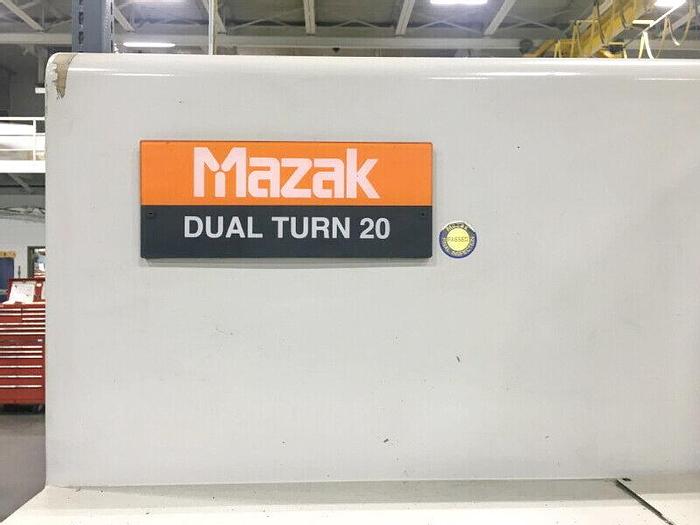

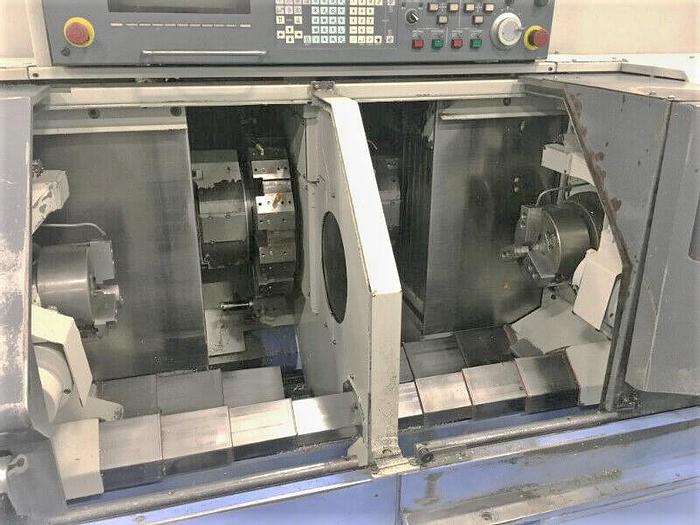

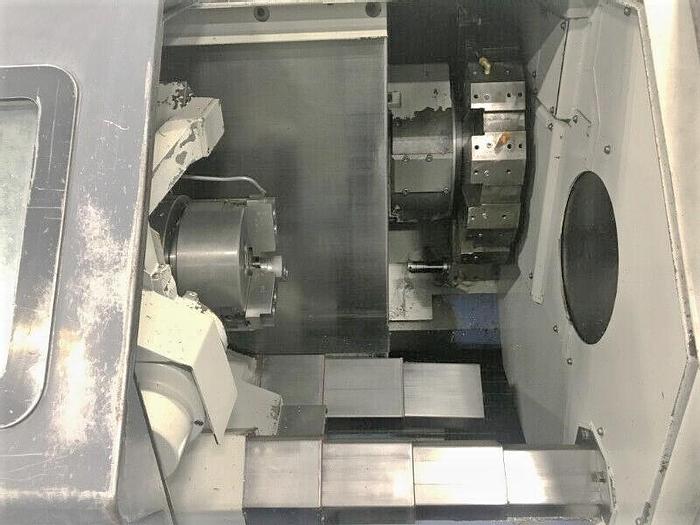

1996 Mazak Dualturn 20
No longer available
1996 Mazak Dualturn 20
$24,500 (USD)
Location:Quebec, Canada
Description
(2) 8" Kitagawa B-208 3 Jaw Hydraulic Chucks

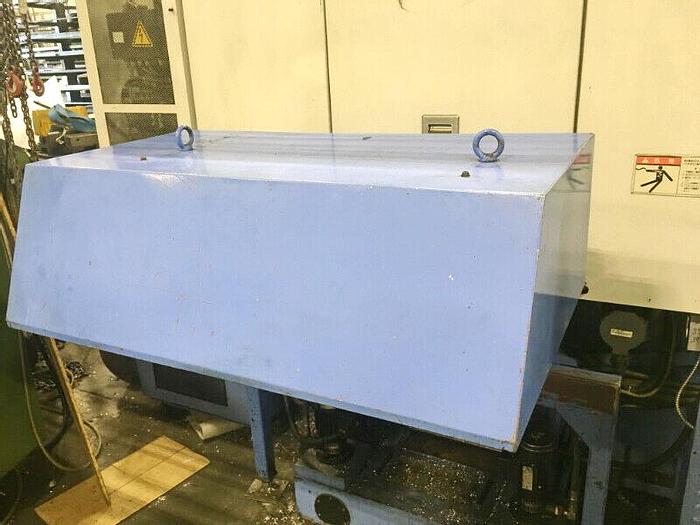

Rear Exit Chip Conveyor
Automatic Tool Eye (L&R)
Workpiece Unloading Package
Automatic Workpiece Transfer
Coolant System with Tank & Pump
RS 232 Port Interface
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Dualturn 20 |
| Year | 1996 |
| Condition | Used |
| Stock Number | 117924 |
| Machine Control | Mazatrol T-Plus Control |
| Chuck Size | (2) 8" 3-Jaw Hydraulic |
| Maximum swing | 12.6" |
| Maximum Cutting Diameter | 10" |
| Maximum Cutting Length | 5.91" |
| Distance Between Spindle Faces | 49.21" |
| Travel X-Axis Turret 1 / Turret 2 | 9.06" / 9.06" |
| Travel Z-Axis Turret 1 / Turret 2 | 19.69" / 19.69" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.4" / 2" |
| Spindle Speeds | 35 - 4,750 RPM - Both |
| Spindle Motor | 20 HP - Both |
| Spindle Torque | 246 ft/lbs |
| Number of Turrets | (2) 12 Position Drum |
| Rapid Traverse Rates X/Z | 1200 IPM / 1300 IPM |
| Machine Dimensions LxWxH | 154" x 73" x 81" |
| Machine Weight | 13,700 lbs |
