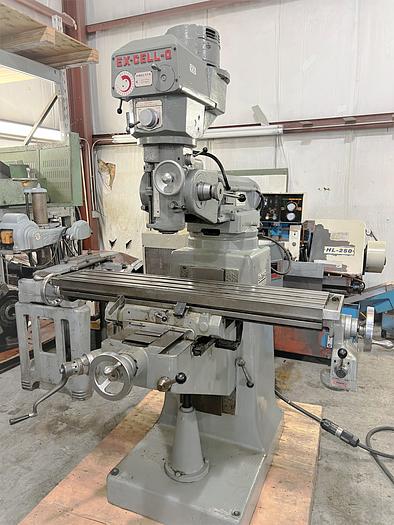

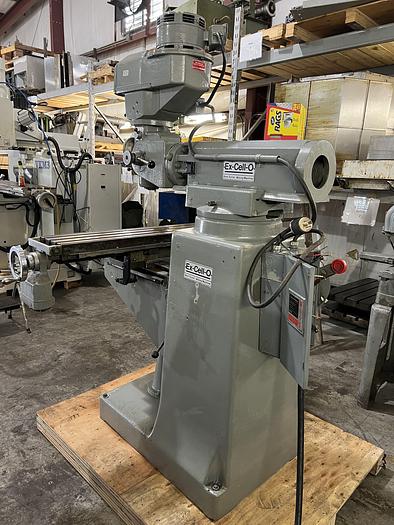

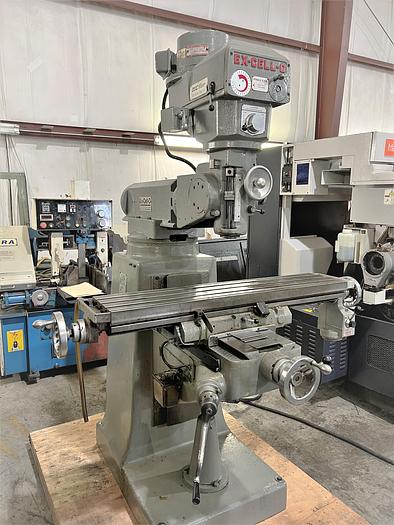

1982 Ex-Cell-O Style 602 Ram Turret Milling Machine
No longer available
1982 Ex-Cell-O Style 602 Ram Turret Milling Machine
$3,950 (USD)
Dundee, FL
Description

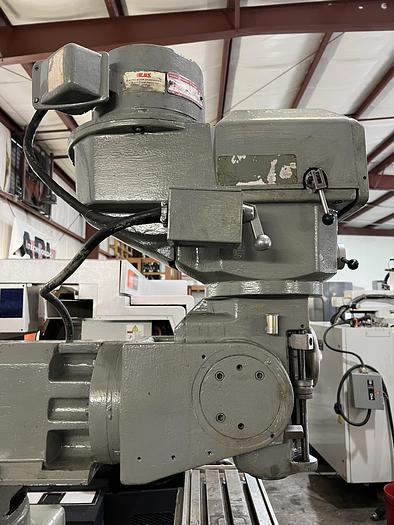

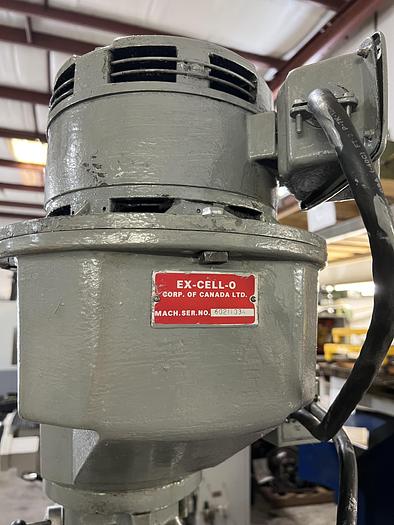

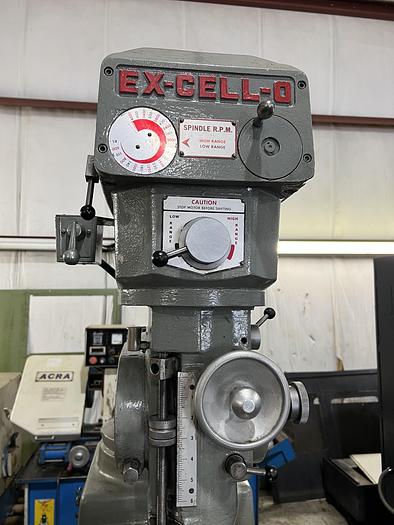

2 HP Variable Speed Milling Head
Compound Swivel Mount for Versatility in Setup's
Standard R8 Spindle Taper
Infinitely Variable Spindle Speeds

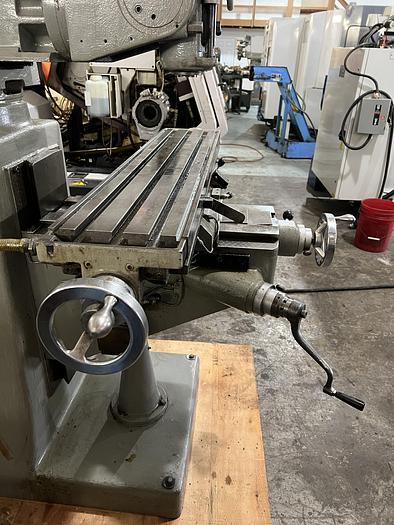

Hand Dials for Table and Cross Travel

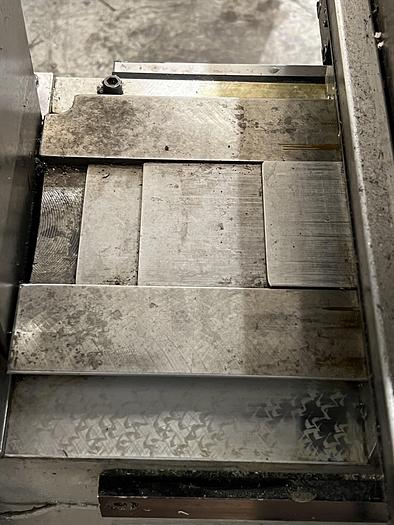

Front and Rear Way Covers
Wired 230V 3 Ph, 60 Hz

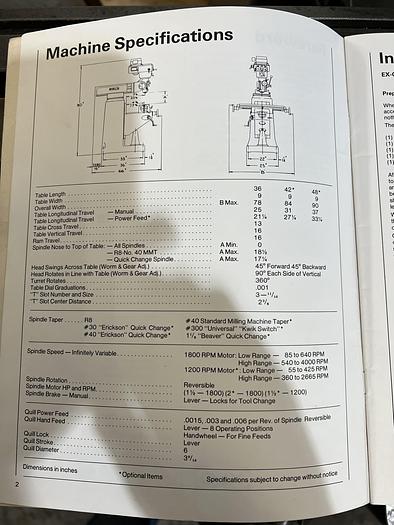

Specifications
| Manufacturer | Ex-Cell-O |
| Model | Style 602 |
| Year | 1982 |
| Condition | Used |
| Stock Number | 117913 |

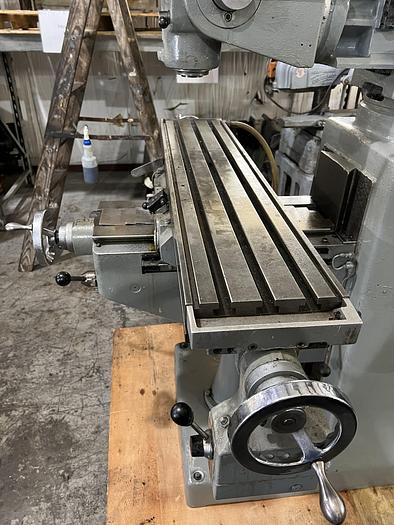

| Table Size | 42" x 9" |
| X-Axis Travel | 31" |
| Y-Axis Travel | 13" |
| Z-Axis Travel | 16" - Knee |
| Quill Stroke | 6" |
| Spindle Taper | R8 |
| Spindle Speeds | 85 - 4,000 RPM Infinitely Variable |

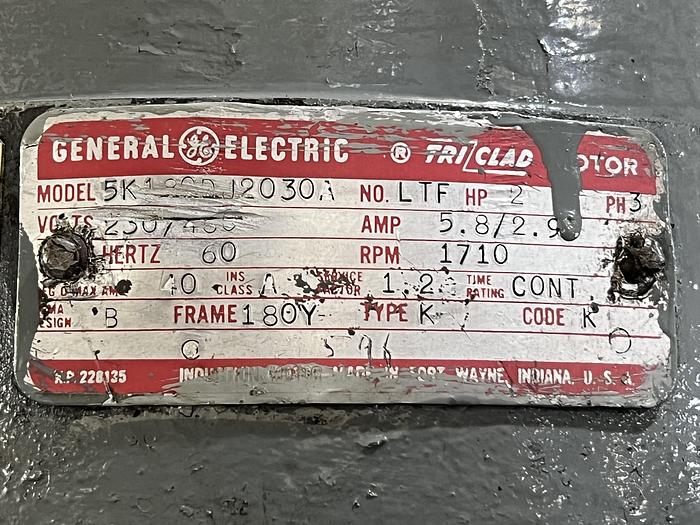

| Spindle Motor | 2 HP |
| Spindle Nose to Table Top | 0 - 18.5" |
| Head Movement - Left to Right | 90 Degrees |
| Head Movement - Front to Back | 45 Degrees |
| Turret Rotation | 360 Degrees |
| Machine Dimensions | 66" x 84" x 80" |
| Machine Weight | 2,950 lbs. |
