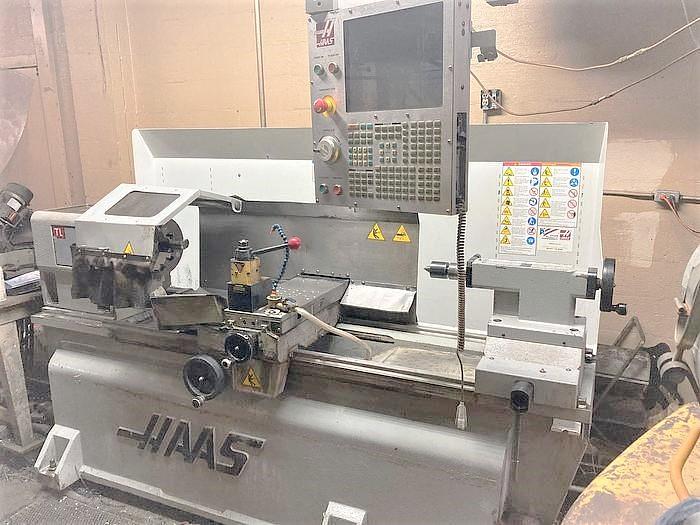

2009 Haas TL-2
2009 Haas TL-2
$34,500 (USD)
Location:Virginia
Description
10" 3-Jaw Manual Chuck
Upgraded A2-6" Spindle Nose with 3.00" Spindle Bore
2,000 RPM Spindle
Tailstock with Live Center
Manual Steady Rest
Rigid Tapping
Quick Change Tool Post
Visual Quick Code
Haas Intuitive Programming System
Work Light
Manual Hand Wheels
Coolant System with Tank & Pump
USB Port Interface
1 MB Program Memory
RS 232 Port Interface
15" LCD Monitor
Integral Chip-Flow Channel Flip Down Safety Enclosure Vector Drive Spindle Machine Can Run Either Single Phase or Three Phase Power

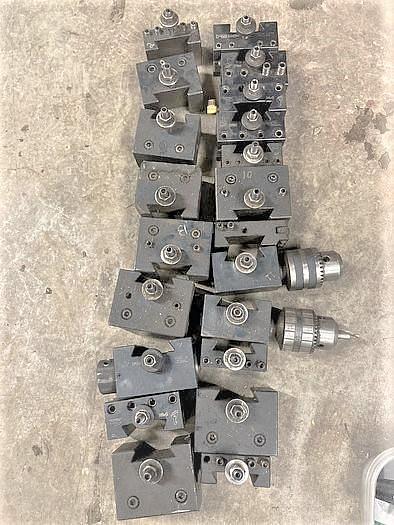

1- D35CXA-1-100 turning tool holder
3- D36TC-1. Coolant thru turning tool holder.
1- V35TC-4 CNC coolant thru boring bar holder
1- V35TC-36 Coolant thru 5C collet holder
1- 250-301 Turning holder
3- 250-302 turning holder
5- 250-341 1.25” boring bar holder
3- 250-304. 1” boring bar holder
1- 250-310. Turning/knurling
2- 250-305. Morse taper holder with Jacobs chucks
***Price New As Equipped at $52,950***
Specifications
| Manufacturer | Haas |
| Model | TL-2 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 117908 |
| Control | Haas 32 BIT |
| Chuck Size | 10" 3 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 3.00" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 12 HP |
| Number of Turret Positions | Quick Change Tool Post |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
