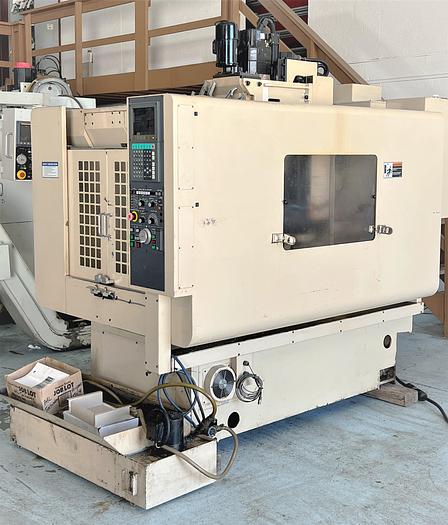

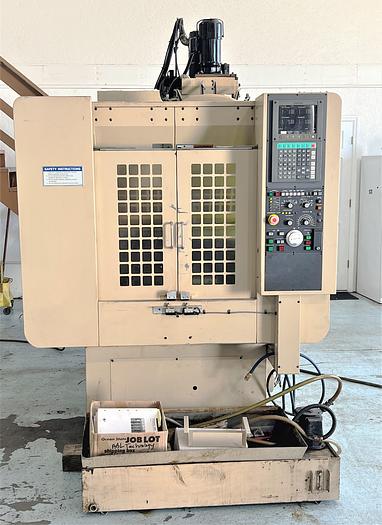

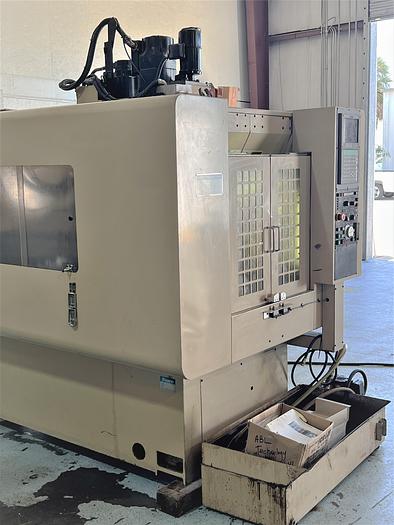

1996 Miyano TSV-C41 with 2 Pallet Changer
No longer available
1996 Miyano TSV-C41 with 2 Pallet Changer
$7,450 (USD)
Location:Florida
Description
180 Degree Fast 2 Pallet Changer System

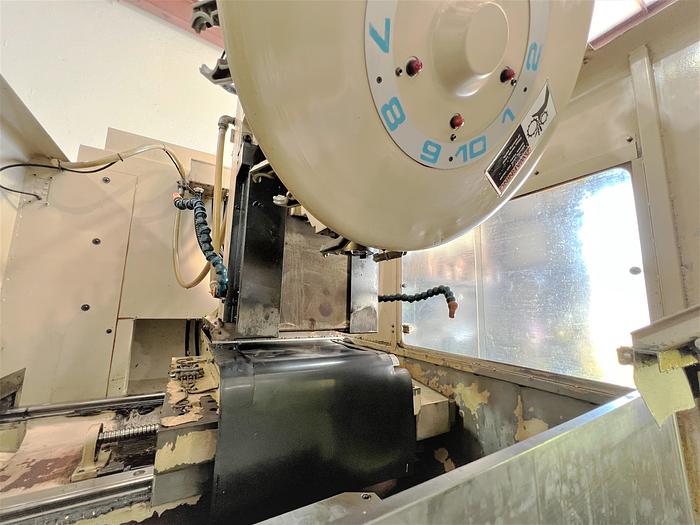

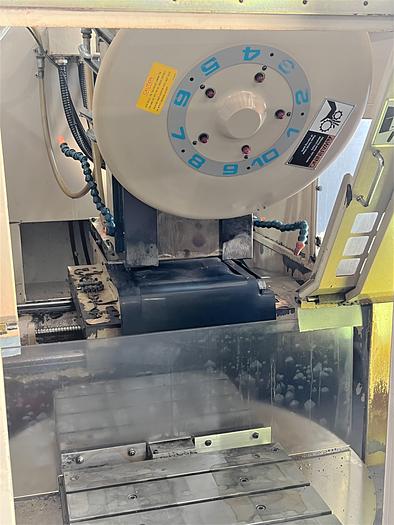

Rigid Tapping (maximum tapping speed 2,500 rpm) 10 Station Tool Changer - Bi-Directional
RS 232 Port Interface
Flood Coolant System
Tool Length Measurement
Helical Interpolation
Cutter Compensation C
Tool Radius Compensation C
Canned Cycles
Hole Pattern Cycle
Backround Editing
Work Coordinate System
Air Blow on Spindle

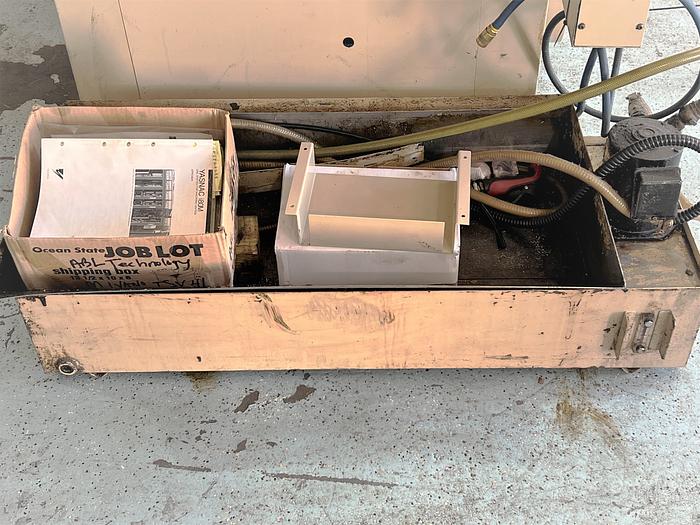

Coolant Tank with Pump
Standard 524 ft. of Part Program Storage
Additional Part Program Storage

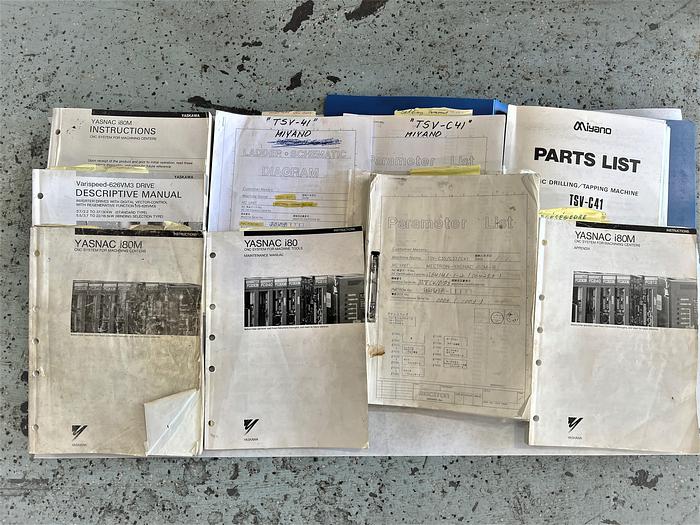

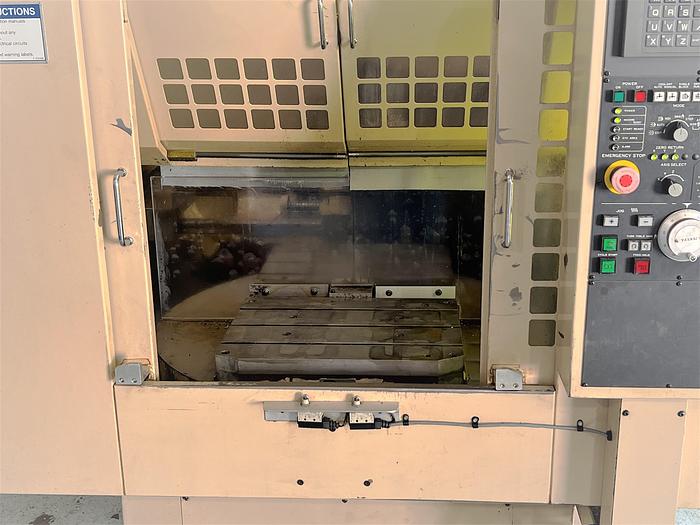

Auto Door All Available Manuals

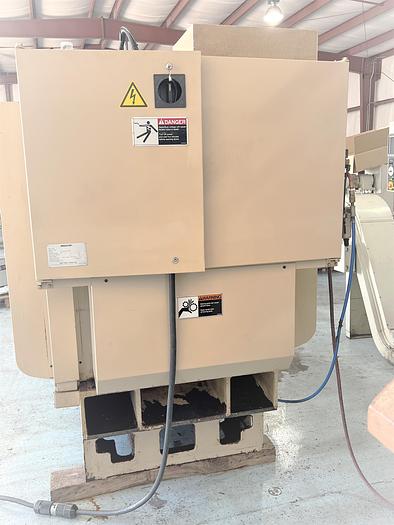

Wired 230V Electrics

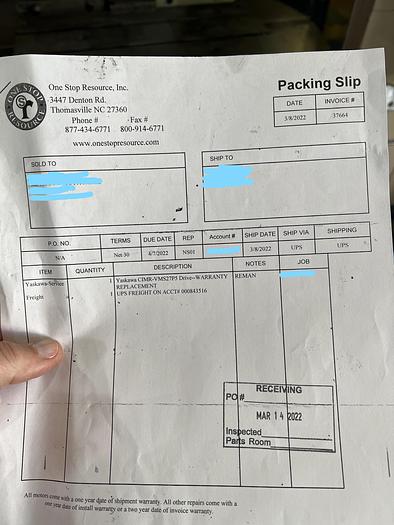

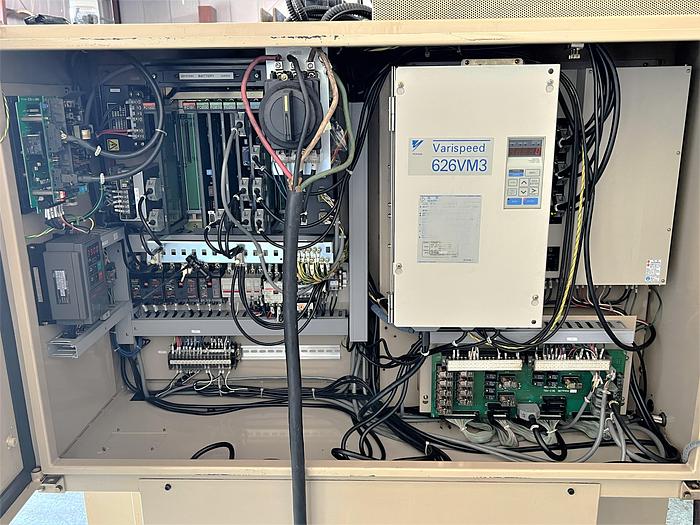

*Yaskawa Power Supply just rebuilt and reinstalled 4/2022
Specifications
| Manufacturer | Miyano |
| Model | TSV-C41 2 Pallet Vertical Machining Center |
| Year | 1996 |
| Condition | Used |
| Stock Number | 117904 |

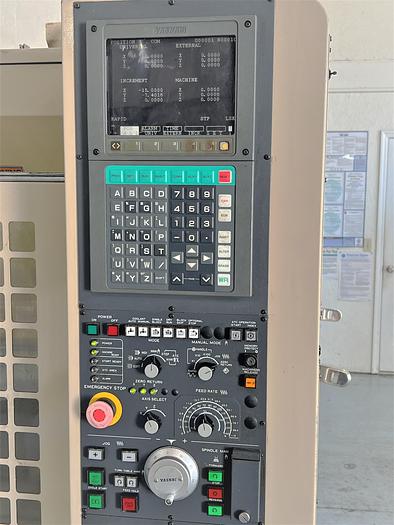

| Control | Yasnac i-80MB Control |

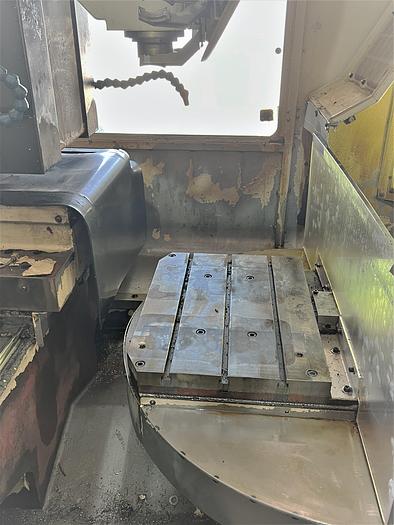

| Table Size | 18.9" x 14.1" (2) Pallets |
| Maximum Table Load | 220 lbs. |
| Table Indexing Time | 2.5 seconds |
| Distance Spindle Nose to Table Top | 9.8" - 19.7" |
| X-Axis Travel | 15.7" |
| Y-Axis Travel | 11.8" |
| Z-Axis Travel | 9.8" |
| Spindle Taper | BT #40 |
| Spindle Speed | 50 - 5,000 rpm |
| Spindle Motor | 8.8 HP |

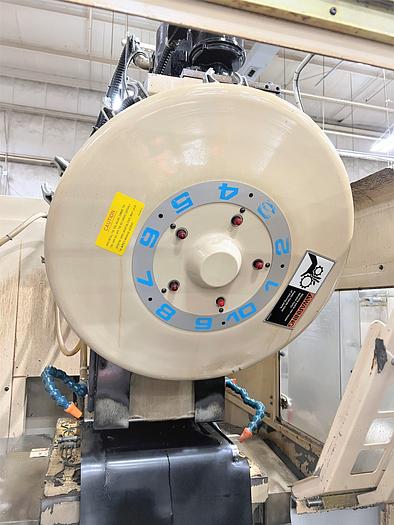

| Tool Magazine Capacity | 10 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.125" / 7.875" / 8.8 lbs. |
| Tool Change Time Chip to Chip | 3.5 seconds |
| Tool Change Time Tool to Tool | 2.2 seconds |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions LxWxH | 105" x 60" x 78" |
| Machine Weight | 6,830 lbs. |
