2020 Doosan NHP 4000
No longer available
2020 Doosan NHP 4000
$239,500 (USD)
Location:California
Description
2 Pallet Changer System
Full 4th Axis Rotary Table
Coolant Through the Spindle

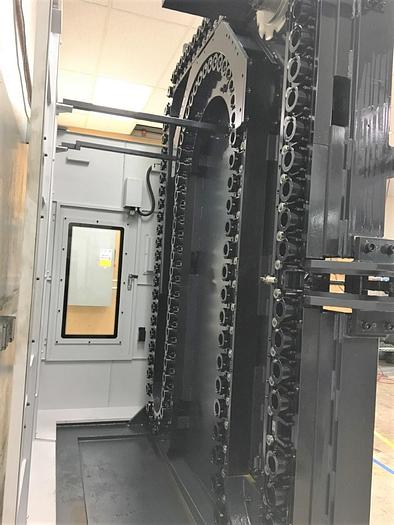

120 Station Tool Changer
Rigid Tapping
Remote Jog Handle
Spindle Orientation
Work Light
Auto Doors on Loading Station
Fanuc Robotic Interface
Wired 220V Electrics
All Available Manuals
Prepped for Probe System
**No Chip Conveyor**
Specifications
| Manufacturer | Doosan |
| Model | NHP 4000 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 117903 |
| Machine Control | Fanuc |
| Pallet Size / Number of Pallets | 15.7" x 15.7" / 2 Pallets |
| Maximum Table Load | 882 lbs. |
| Pallet Indexing | .001 Degree Full 4th Axis |
| Maximum Workpiece Size D x H | 24.8" x 35.4" |
| X-Axis Travel | 22" |
| Y-Axis Travel | 25.2" |
| Z-Axis Travel | 26" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 40.2 HP |
| Number of Tool Positions | 120 Station Tool Changer |
| Rapid Traverse Rates | 2362 IPM |
| Cutting Feedrates | 2362 IPM |
| Machine Dimensions | 194" x 90.6" x 105.9" |
| Machine Weight | 21,340 lbs. |
