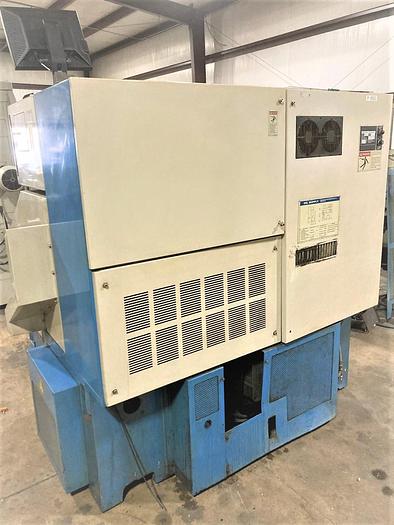

1997 Hyundai Hit-8S

1997 Hyundai Hit-8S

$9,500 (USD)

Mississippi

orCall (863) 439-6066

Description

Tailstock

Tool Eye

Coolant System w/Tank & Pump

RS 232 Interface

All Available Manuals

Specifications

ManufacturerHyundai
ModelHit-8S
Year1997
ConditionUsed
Stock Number117901
Machine ControlSiemens 840C
Chuck Size6" 3-Jaw Hydraulic
Maximum Swing11.8"
Maximum Cutting Diameter6.3"
X-Axis Travel3.93"
Z-Axis Travel11.4"
Spindle Nose / Bore / Bar CapacityA2-5 / 1.96" / 1.58"
Spindle Speed60-6,000 rpm
Spindle Motor14 hp
Spindle Torque63.5 ft./lbs
Rapid Traverse Rates1181 ipm
Number of Turret Positions8
Tailstock Quill Diameter / Center2.17" / #4 MT
Tailstock Body Travel / Quill Travel14.33" / 3.74"
Machine Dimensions LxWxH67x55"x70"
Machine Weight5,732 lbs
