1998 Hyundai Hit-30S
No longer available
1998 Hyundai Hit-30S
$13,500 (USD)
Location:Mississippi
Description

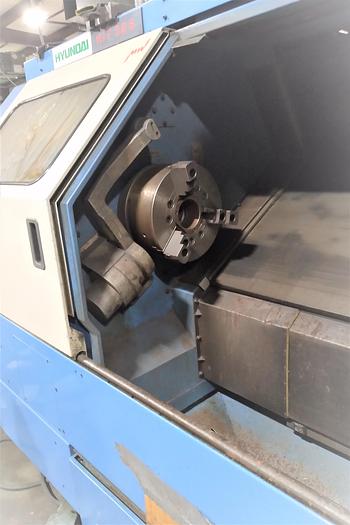

15" 3-Jaw Hydraulic Chuck
Tailstock

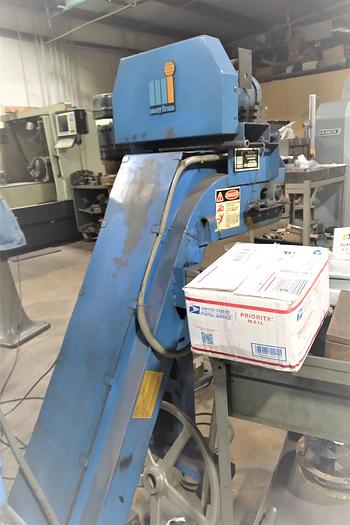

Chip Conveyor
RS 232 Port
All Available Manuals
Specifications
| Manufacturer | Hyundai |
| Model | Hit-30S |
| Year | 1998 |
| Condition | Used |
| Stock Number | 117900 |
| Machine Control | Siemens 840C |
| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing | 20.8" |
| Maximum Swing Over Cross Slide | 12.6" |
| Distance Between Centers | 39.37" |
| X-Axis Travel | 7.87" |
| Z-Axis Travel | 40.16" |
| Maximum Cutting Diameter | 12.6" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.15" / 2.75" |
| Spindle Speeds | 30-3,000 rpm |
| Spindle Motor | 30 hp |
| Number of Turret Positions | 16 |
| Tailstock Center | #4MT |
| Rapid Traverse Rates X/Z | 945 ipm / 708 ipm |
| Machine Dimensions LxWxH | 136"x70:x75" |
| Machine Weight | 13,000 lbs |
