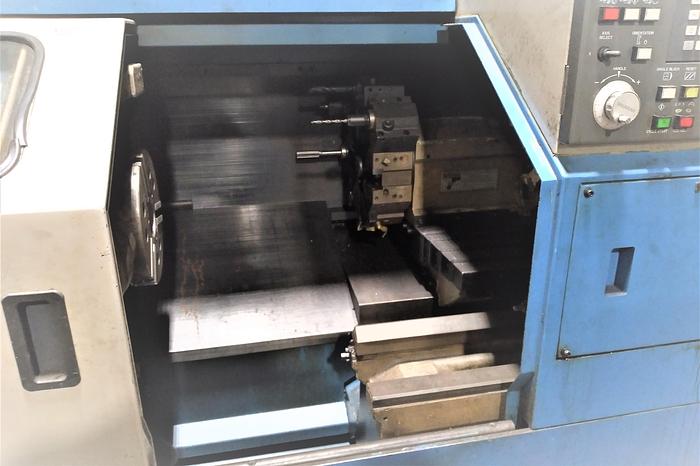

1997 Hyundai Hit-18S
No longer available
1997 Hyundai Hit-18S
$10,500 (USD)
Mississippi
Description
Tailstock w/Programmable Quill
Chip Conveyor
Coolant System
RS-232 Port
Automatic Tool Eye
All Available Manuals
Specifications
| Manufacturer | Hyundai |
| Model | Hit-18S |
| Year | 1997 |
| Condition | Used |
| Stock Number | 117898 |

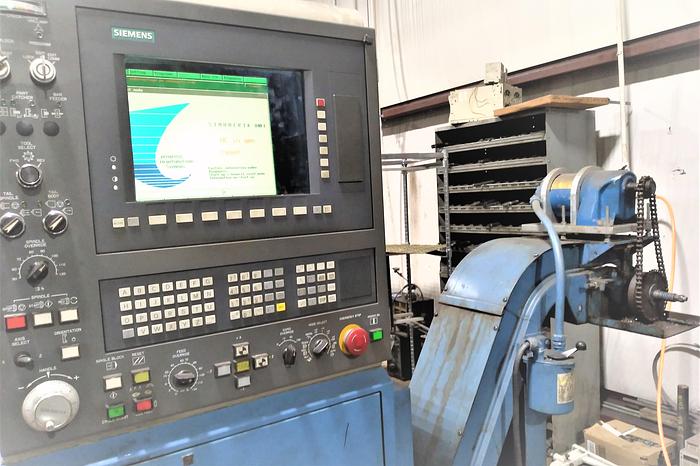

| Machine Control | Siemens 840C |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 17.32" |
| Maximum Cutting Diameter | 11" |
| Maximum Cutting Length | 19.69" |
| X-axis travel | 7.09" |
| Z-Axis Travel | 20.08" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.15" / 2.8" |
| Spindle Speeds | 36 to 3,600 rpm |
| Spindle Motor 30 Minutes/Continuous | 20 HP / 15 HP |
| Number of Turret Positions | 8 Pos |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Quill Travel | 18.9" / 5.12" |
| Machine Dimensions LxWxH | 101"x64"x72" |
| Machine Weight | 10,500 lbs |
