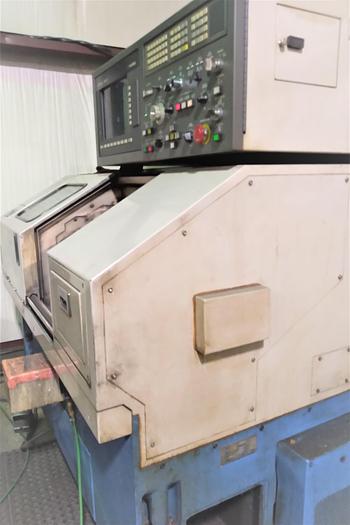

1997 Hyundai Hit-8S
No longer available
1997 Hyundai Hit-8S
$9,500 (USD)
Location:Mississippi
Description

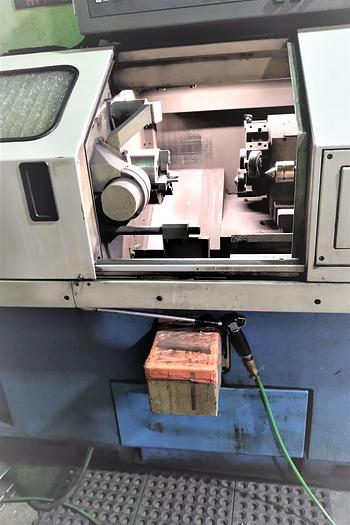

Tailstock
Tool Eye
Coolant System w/Tank & Pump
RS 232 Interface
All Available Manuals
Specifications
| Manufacturer | Hyundai |
| Model | Hit-8S |
| Year | 1997 |
| Condition | Used |
| Stock Number | 117896 |

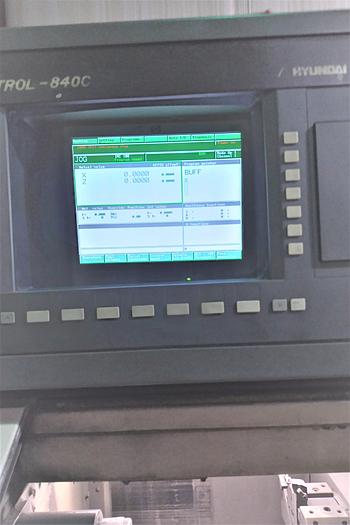

| Machine Control | Siemens 840C |
| Chuck Size | 6" 3-Jaw Hydraulic |
| Maximum Swing | 11.8" |
| Maximum Cutting Diameter | 6.3" |
| X-Axis Travel | 3.93" |
| Z-Axis Travel | 11.4" |
| Spindle Nose / Bore / Bar Capacity | A2-5 / 1.96" / 1.58" |
| Spindle Speed | 60-6,000 rpm |
| Spindle Motor | 14 hp |
| Spindle Torque | 63.5 ft./lbs |
| Rapid Traverse Rates | 1181 ipm |
| Number of Turret Positions | 8 |
| Tailstock Quill Diameter / Center | 2.17" / #4 MT |
| Tailstock Body Travel / Quill Travel | 14.33" / 3.74" |
| Machine Dimensions LxWxH | 67x55"x70" |
| Machine Weight | 5,732 lbs |
