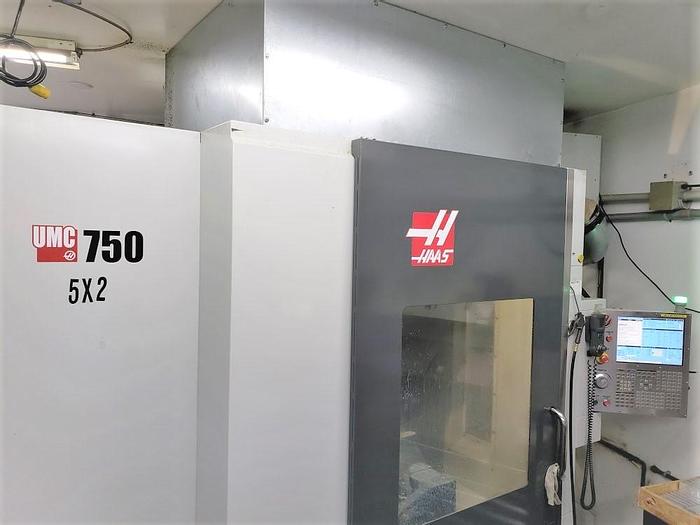

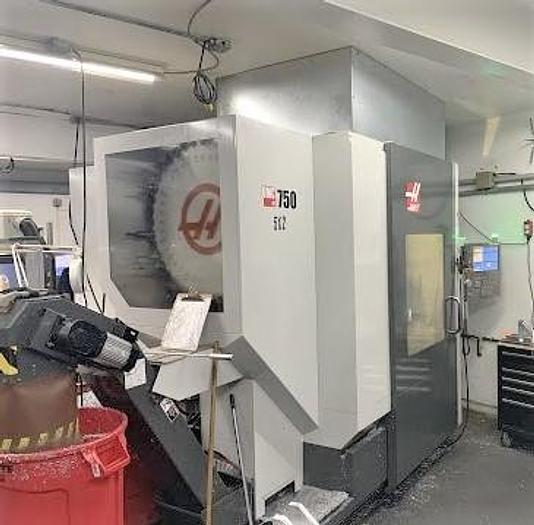

2015 Haas UMC-750SS
No longer available
2015 Haas UMC-750SS
$109,500 (USD)
Location:New Hampshire
Description

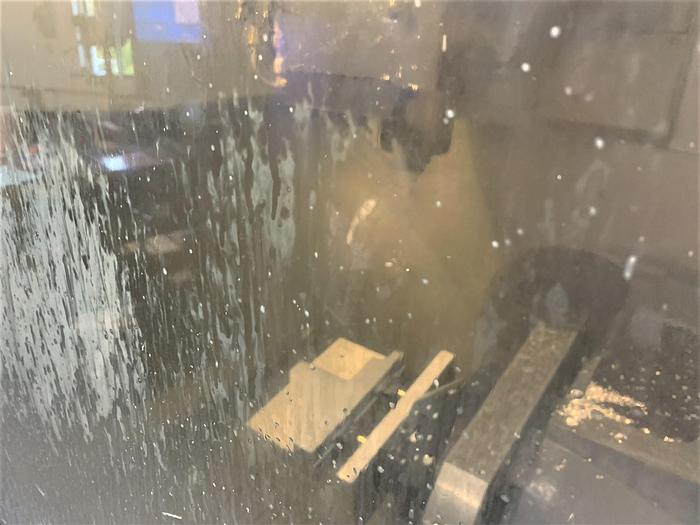

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI
Renishaw Probing Package-Tool & Part
Chip Conveyor
High Speed Machining
Remote Jog Handle

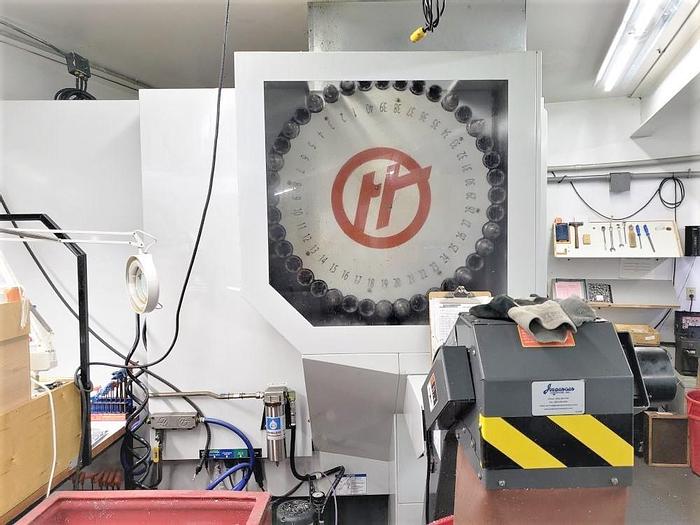

40 Station Tool Changer
Programmable Coolant Nozzle
Raptor Vice Riser
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals
Wired 195-260V Electrics

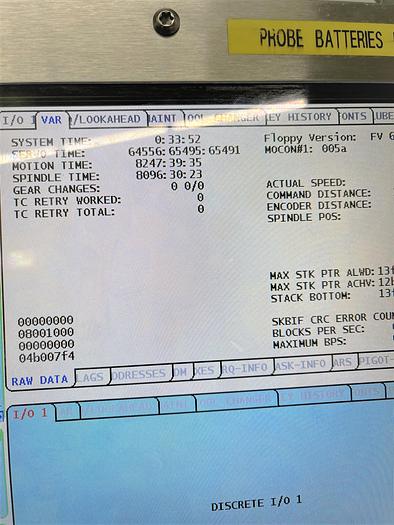

8,247 Motion Hours
8,096 Spindle Hours
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2015 |
| Condition | Used |
| Stock Number | 117895 |
| Table size | 19.7" Diameter |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1000 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 162" x 113" x 101" |
| Machine weight | 19,100 lbs |
