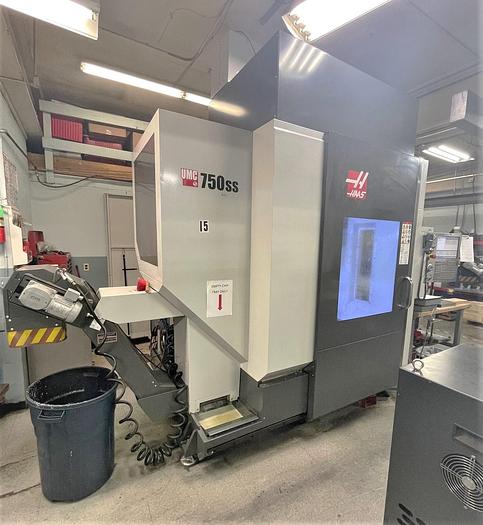

2017 Haas UMC-750SS
No longer available
2017 Haas UMC-750SS
$139,500 (USD)
Illinois
Description

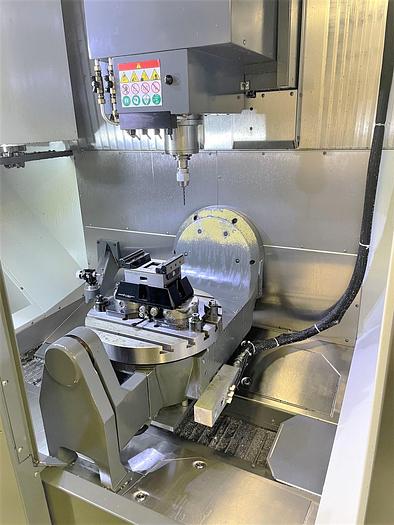

Trunnion Style 5th Axis Table
Coolant Through the Spindle
Renishaw Probing Tool & Part Probing
Chip Conveyor

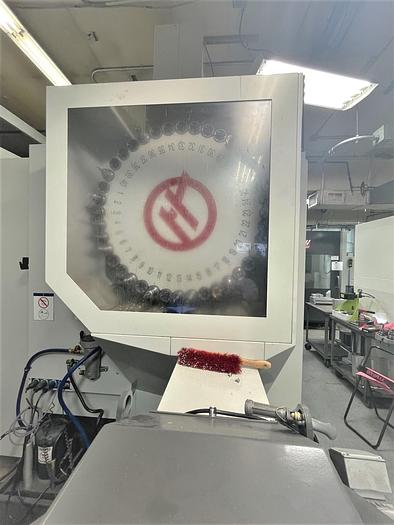

40 Station Tool Changer
Early Power Failure Detection Module
High Speed Machining
Rigid Tapping
RS 232 Port Interface

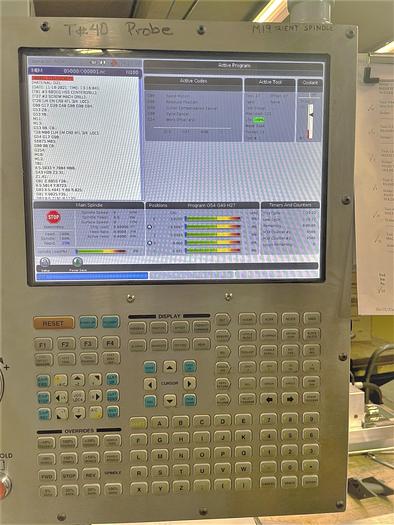

Next Gen Control
Spindle Air Blast
Coolant System with Tank & Pump

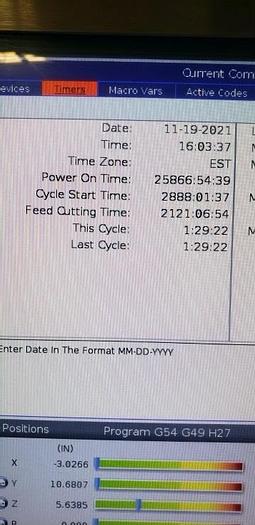

Cycle Start Hours 2,888
Feed Cutting Hours 2,121
All Available Manuals
Price out new as equipped at $227,280
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2017 |
| Condition | Used |
| Stock Number | 117894 |
| Table size | 19.7" Diameter |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
