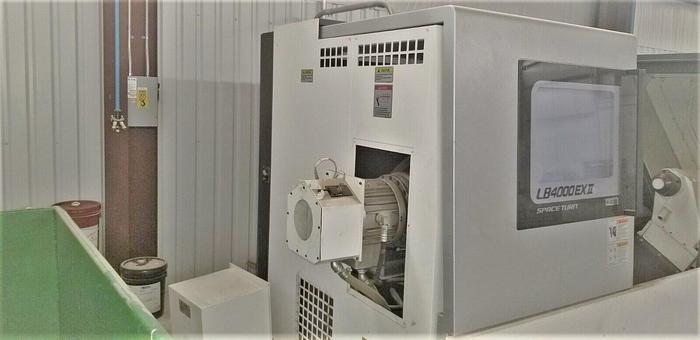

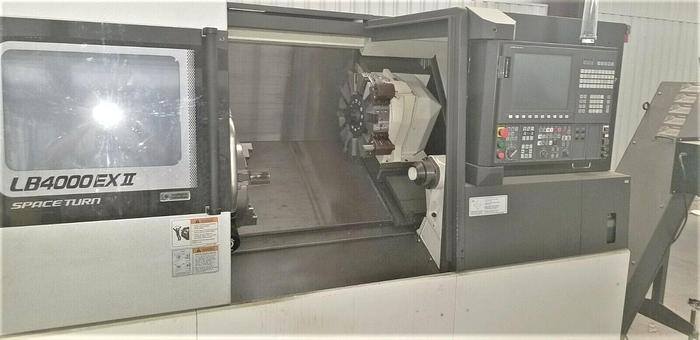

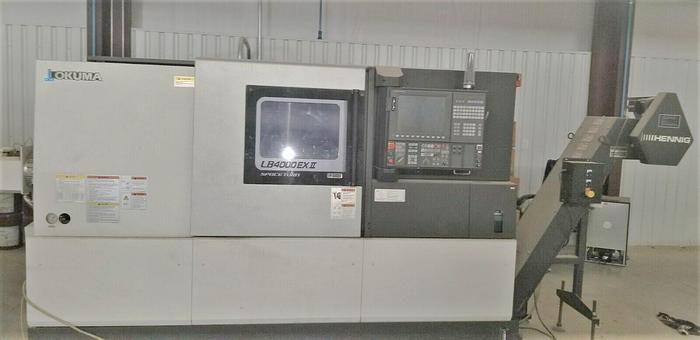

2018 Okuma Space Turn LB4000 EXII
No longer available
2018 Okuma Space Turn LB4000 EXII
$167,500 (USD)
Location:Texas
Description

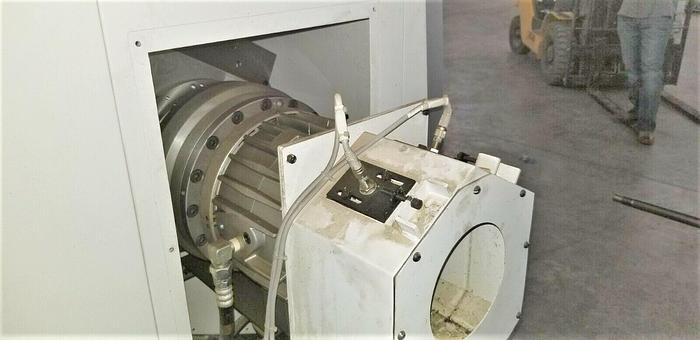

Big Bore Spindle Option

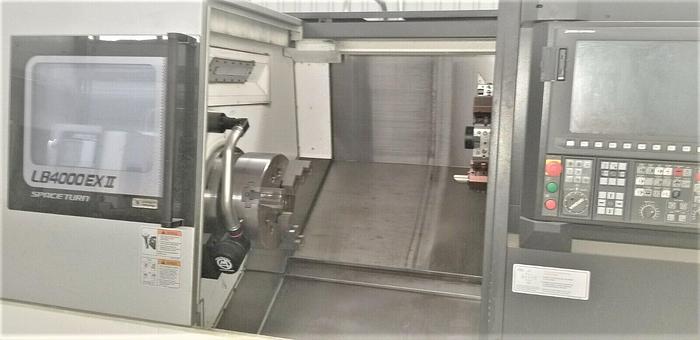

15" 3-Jaw Hydraulic Chuck

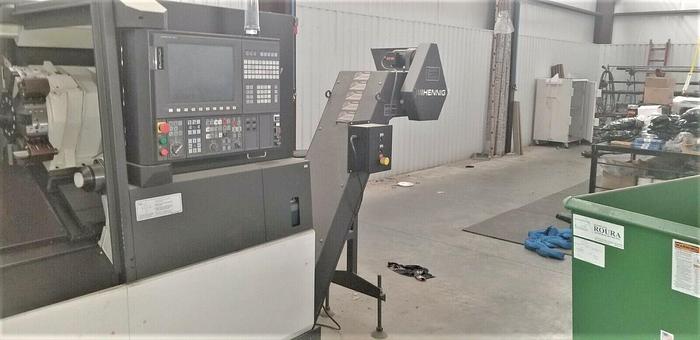

Chip Conveyor

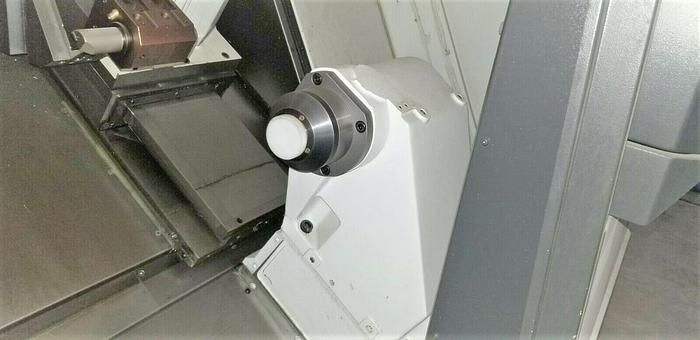

Tailstock - Ballscrew Driven
Tool Presetter

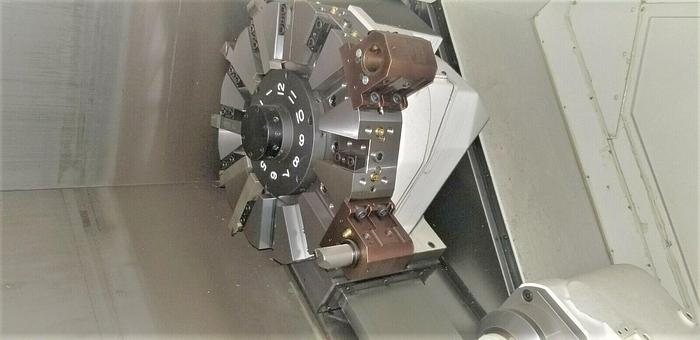

NC Type 12 Station Turret
High Oil Temperature Regulator
Advanced One Touch IGF - Conversational
USB Port Interface
RS 232 Port Interface
High Torque Motor
All Available Tool Blocks
All Available Manuals
Specifications
| Manufacturer | Okuma |
| Model | Space Turn LB4000 EXII |
| Year | 2018 |
| Condition | Used |
| Stock Number | 117883 |
| Machine Control | OSP-P300LA Control |
| Chuck Size | 15" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 26.38" |
| Maximum Turning Diameter | 18.90" |
| Maximum Machining Length | 29.52" |
| X-Axis Travel | 11.81" |
| Z-Axis Travel | 33.07" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 4.41" / 4.0" |
| Spindle Speeds | 42 - 4,200 RPM |
| Spindle Motor | 40 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 984 IPM / 1181 IPM |
| Tailstock Body Travel / Center | 30.71" / MT #5 |
| Machine Dimensions LxWxH | 130" x 75" x 77" |
| Machine Weight | 13,500 lbs |
