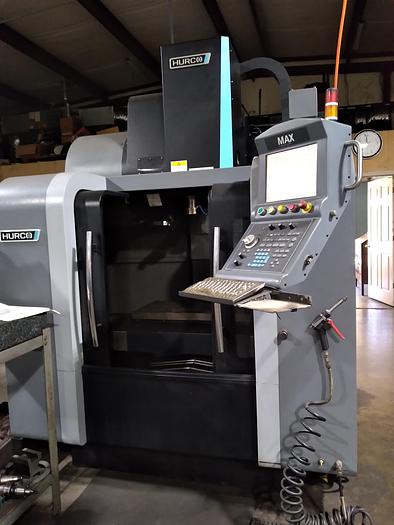

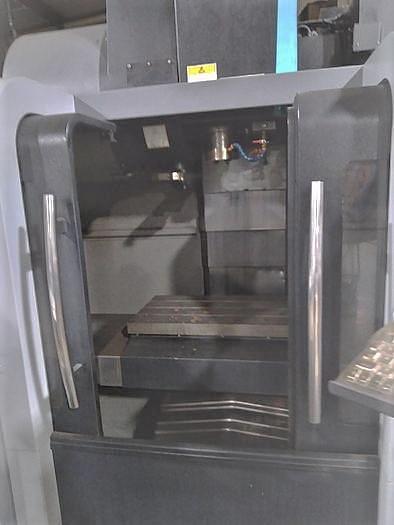

2014 Hurco VM10
No longer available
2014 Hurco VM10
$37,950 (USD)
Location:Mississippi
Description
20 Station Side Mounted Tool Changer
Conversational Capability
G&M Code Capability
Flood Coolant
USB Port Interface
RS 232 Port Interface
Coolant Tank with Pump
All Available Manuals
Specifications
| Manufacturer | Hurco |
| Model | VM10 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117881 |

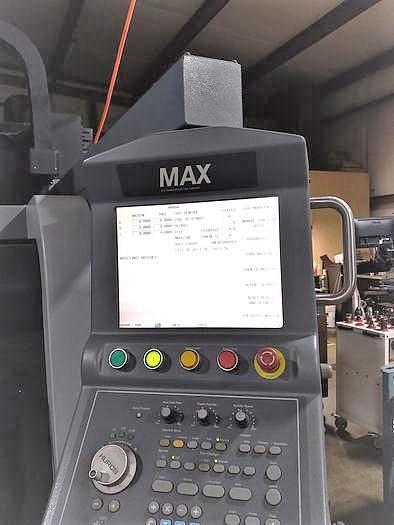

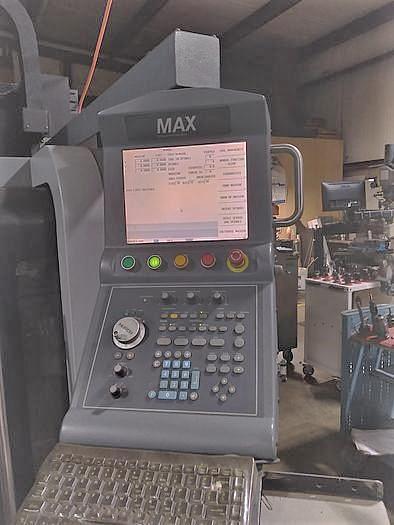

| Machine Control | Hurco Max |
| Table Size | 30"x16" |
| Maximum Table Load | 750 lbs |
| X-Axis Travel | 26" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Taper | BT 40 |
| Spindle Speed | 8,000 RPM |
| Spindle motor | 15 HP |
| Tool Magazine Capacity | 20 Position Side Mounted |
| Maximum Tool Diameter / Length / Weight | 3.5" / 9.8" / 15.5 lbs |
| Rapid Traverse Rates X, Y / Z | 945 ipm / 945 ipm / 750 ipm |
| Machine Dimensions LxWxH | 1198"x103"x100" |
| Machine Weight | 6,500 lbs |
