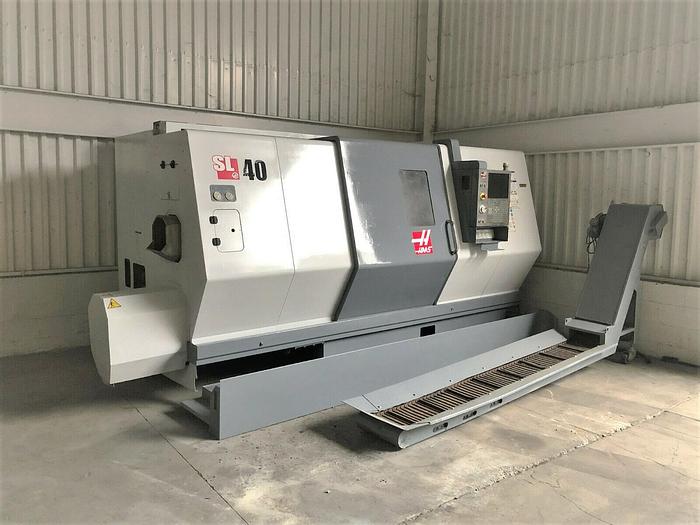

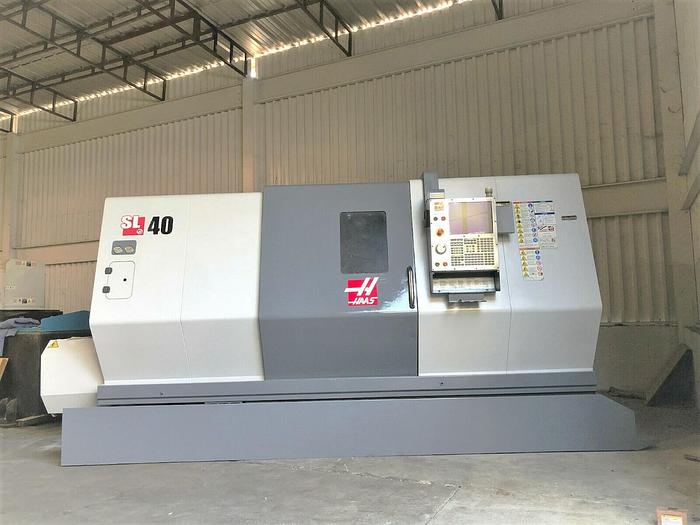

2009 Haas SL-40T

2009 Haas SL-40T

$44,950 (USD)

California

orCall (863) 439-6066

Description

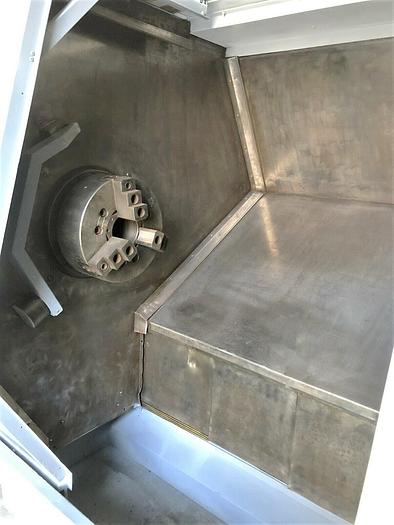

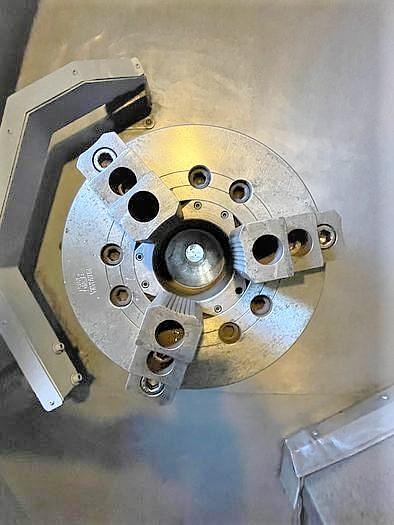

15" 3 Jaw Hydraulic Chuck 4" Bar Capacity Tool Presetter Chip Conveyor - Belt Style Extra Performance Package with 55 HP Spindle Motor

Fully Programmable Tailstock

Intuitive Programming 2 Speed Geared Headstock RS 232 Port Interface Rigid Tapping 95 Gallon Coolant Tank with Pump

Wired 195/260V Electrics All Available Manuals

All Available Tool Blocks

Specifications

ManufacturerHaas
ModelST-40T
Year2009
ConditionUsed
Stock Number117878

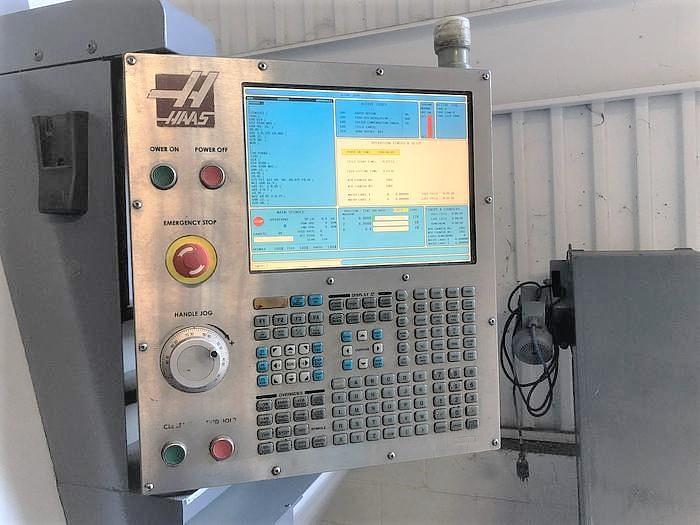

ControlHaas 32 BIT
Maximum Swing40"
Maximum Swing Over Cross Slide25"
Maximum Cutting Diameter25.5"
Maximum Cutting Length44"
Maximum Distance Between Centers51"
Maximum Bar Capacity4"
X-Axis Travel17"
Z-Axis Travel44"
Spindle Nose / Spindle BoreA2-8" / 4.62"
Spindle Speeds2,400 RPM
Spindle Motor55 HP

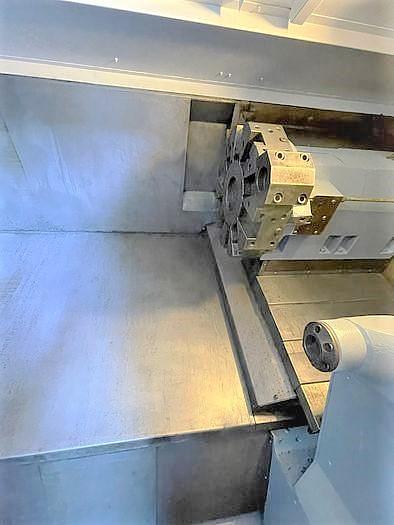

Number of Turret Positions10 Station Turret
Rapid Traverse Rates710 IPM
Tailstock Body Travel / Tailstock Taper44" / MT #5
Machine Dimensions170" x 102" x 89"
Machine Weight25,000 lbs.
