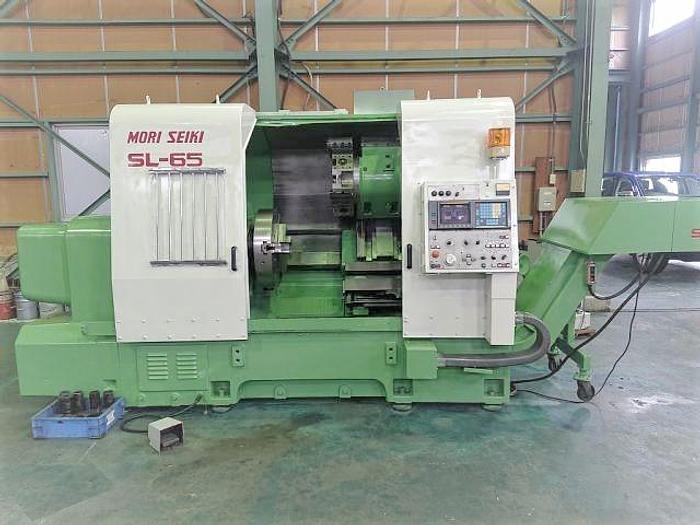

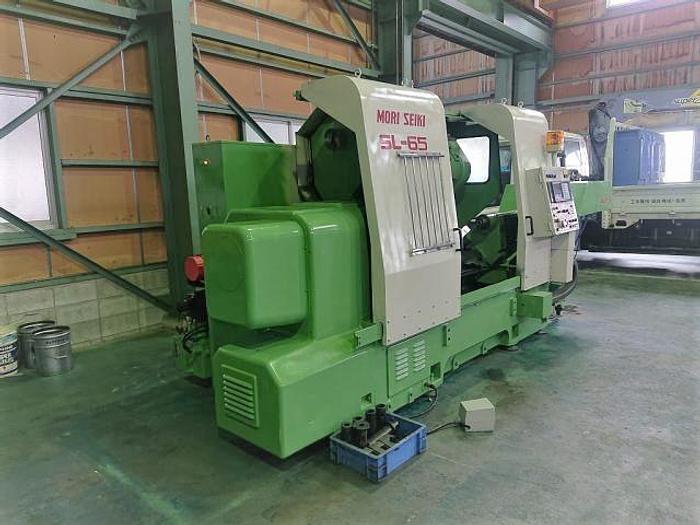

1991 Mori Seiki SL65A with Fanuc MF-T4 (Fanuc 0TC)
No longer available
1991 Mori Seiki SL65A with Fanuc MF-T4 (Fanuc 0TC)
$44,500 (USD)
Location:Texas
Description

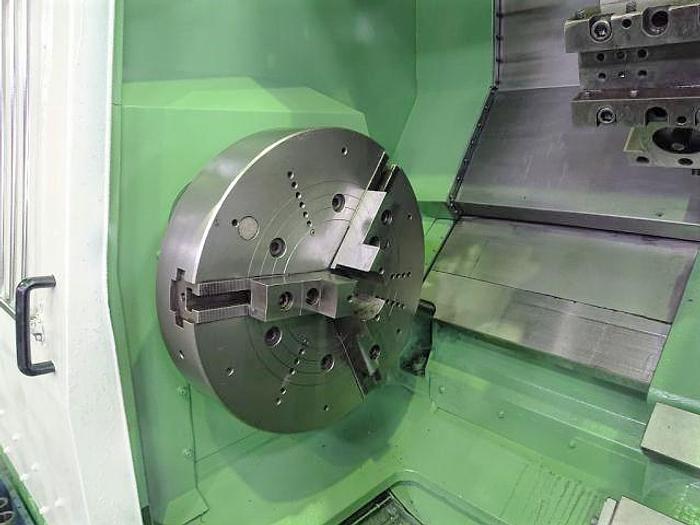

24" 3 Jaw Hydraulic Chuck
Tailstock
Chip Conveyor
Slant Bed Design with Boxed Ways
RS 232 Port Interface
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mori Seiki |
| Model | SL65A Fanuc MF-T4 (Fanuc 0TC) |
| Year | 1991 |
| Condition | Used |
| Stock Number | 117877 |
| Chuck size | 24" Hydra. Chuck |
| Swing over bed | 35" |
| Swing over cross slide | 22" |
| Maximum machining diameter | 25.5" |
| Center distance | 34" |
| X-axis travel | 14" |
| Z-axis travel | 34" |
| Spindle Nose / Spindle Bore | A1-11" / 4.1" |
| Spindle speed | 1,800 RPM |
| Spindle motor | 50 HP |
| Turret type - vdi type | 12 Station Turret |
| Tailstock travel | 26.8" |
| Tailstock quill diameter | 4.3" |
| Rapid Traverse Rates X/Z | 197 IPM / 315 IPM |
| Machine dimensions | 120"x62"x71" |
| Machine weight | 20,000 lbs. |
