2016 Nakamura Tome NTRX-300
No longer available
2016 Nakamura Tome NTRX-300
Ontario, Canada
Description
Nakamura NT SMART X SOFTWARE

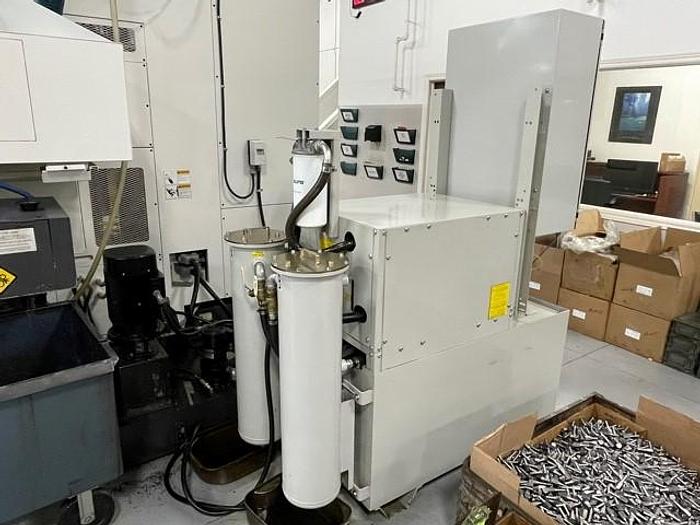

1,000 PSI Chip Blaster High Pressure Coolant Pump
Part Conveyor
Parts Catcher

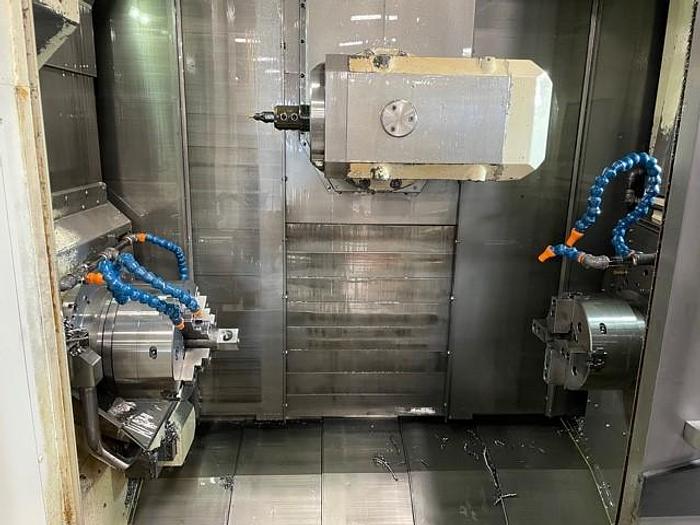

(2) 12" 4 Jaw Hydraulic Chucks
Load/Unload Package with Tool Gripper

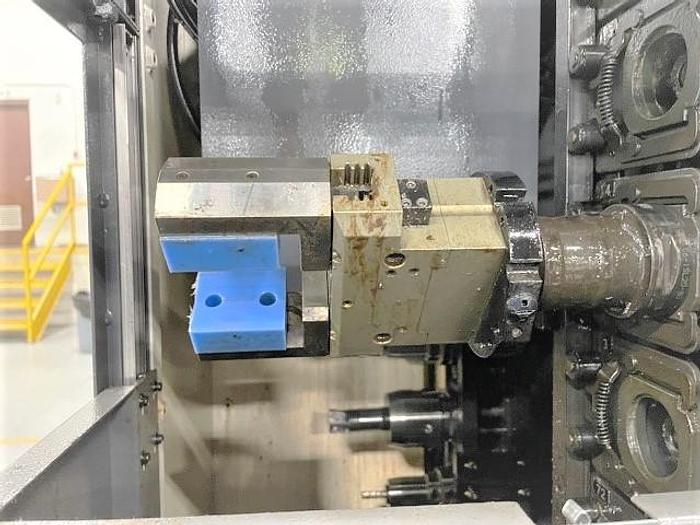

TS-G Tool Spindle Gripper
80 Station Tool Changer
(40) Pieces of Capto 6 ($25000 VALUE)
Manual Detachable Tool Setter ($12,900 Value)
Chip Conveyor
C-Axis Function including Brake (L\R)
Speed Override (L\R)
Helical Interpolation
Drill Breakage Detection for Tool
Spindle Coolant Non Return Valve
Fixed Type Air Blow for Spindle
Barfeed Interface
NT Nurse II System
NT Work Navigator
NT Collision Guard
Turn Mill Software Included
Precision Milling Support Package
High Speed 5-Axis Milling Software
TCP
Replacement cost is $ 570,000
Specifications
| Manufacturer | Nakamura Tome |
| Model | NTRX-300 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 117874 |
| Machine Control | NT-Smart X-Controller Fanuc 31i-B5 |
| Chuck Sizes Main / Subspindle | 12" / 12" 4 jaw Hydraulic Chucks |
| Maximum Turning Diameter | 25.2" |
| Standard Turning Diameter | 13" |
| Maximum Turning Length | 45.3" |
| Distance Between Spindles | 53.1" |
| Y-Axis Travel | 9.9" |
| W-Axis Travel (subspindle) | 43.3" |
| B-Axis Tilt Movement | 225 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.6" / 3.1" |
| Subspindle Nose / Bore / Bar Capacity | A2-8" / 3.2" / 2.75" |
| Main & Subspindle Speeds | 3,500 RPM / 3,500 RPM |
| Spindle Motor / Sub Spindle Motor | 30 HP / 30 HP |
| Tool Shank Type | Capto C6 |
| Milling Spindle Speed | 12,000 RPM |
| Milling Spindle Motor | 25 HP /15 HP |
| Tool Magazine Capacity | 80 Position Tool Changer |
| Rapid Traverse Rates Y / W | 1417 IPM / 1063 IPM |
| Machine Weight | 37,479 lbs |
