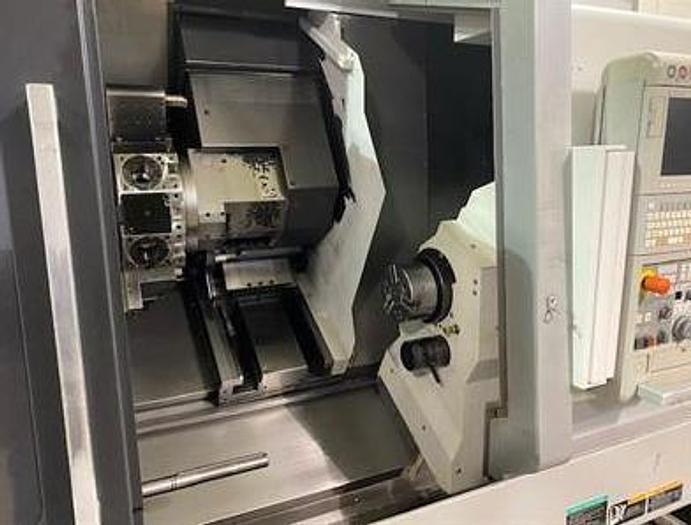

2013 DMG-Mori NLX2500SY/700
No longer available
2013 DMG-Mori NLX2500SY/700
$159,000 (USD)
Location:Illinois
Description
MAPPS Conversational Programming

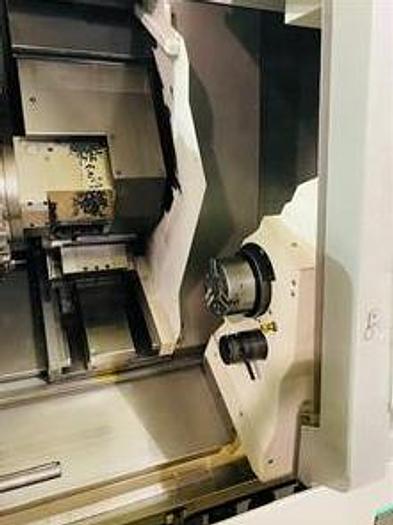

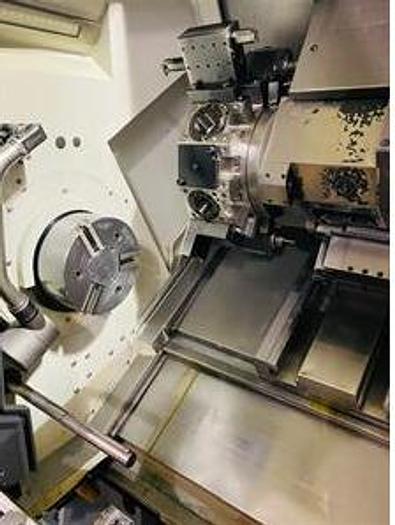

Subspindle Full C Axis Spindle Rotation Live Milling/Drilling Capability Chip Conveyor Parts Catcher
Tool Presetter Both Spindles
RS 232 Port Interface Coolant System with Tank & Pump
Full Compliment of Rotary Tools & Static Tool Holders
All Available Manuals
**Out of an Aerospace Facility**
Specifications
| Manufacturer | DMG-Mori |
| Model | NLX2500SY/700 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 117865 |
| Machine Control | Mori-Seiki M730BM w/MAPPS Conversational Programming |
| Chuck Sizes Main / Subspindle | 10" / 6" Hydraulic 3-Jaw |
| Maximum Turning Diameter | 14.4" |
| Maximum Swing over Bed | 36.4" |
| Maximum Swing Over Cross Slide | 23.2" |
| Maximum Cutting Length | 27.7" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | +/- 1.9" |
| Z-Axis Travel | 31.3" |
| B-Axis Travel (Subspindle) | 28.9" |
| C-Axis Rotation | .001 Degrees |
| Main & Subspindle Speeds | 4,000 rpm / 6,000 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.5" / 3" |
| Subspindle Nose / Bore / Bar Capacity | A2-5 / 1.7" / 1.25" |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 7.5 hp |
| Spindle Motor / Sub Spindle Motor | 25 hp / 15 hp |
| Number of Turret Positions | 12 |
| Rapid Traverse Rates | 1181 ipm |
| Machine Dimensions LxWxH | 122"x80"x84" |
| Machine Weight | 13,640 lbs |
