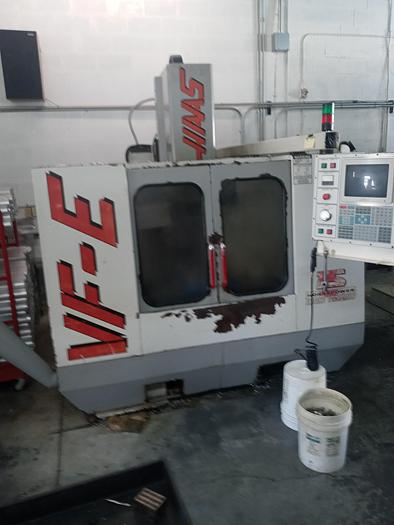

1997 Haas VF-E XT
No longer available
1997 Haas VF-E XT
$7,000 (USD)
Location:Florida
Description
Programmable Coolant Nozzle

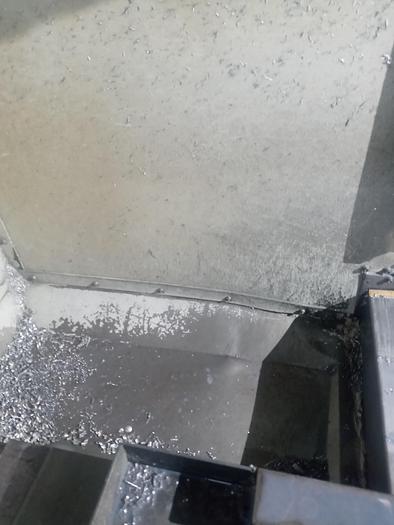

Chip Auger Style Conveyor
Visual Quick Code Programming
Upgraded USB Port Interface
RS 232 Port Interface
Flood Coolant System
Direct Drive Spindle
**Has the following work done on it in 2022**
-(2) new axis servo motors
-(3) new boards
-(1) new X axis cable
Specifications
| Manufacturer | Haas |
| Model | VF-E XT |
| Year | 1997 |
| Condition | Used |
| Stock Number | 117862 |
| Machine Control | Haas 32 BIT |
| Table Size | 26"x14" |
| Maximum Weight on Table | 3,000 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Distance Spindle Nose to Table Top | 4" to 24" |
| Spindle Speed | 7,500 rpm Direct Drive |
| Spindle taper | CAT 40 |
| Spindle motor | 15 HP |
| Rapid Traverse Rates | 500 IPM |
| Tool Magazine Capacity | 20 Position ATC |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x92.8"x90" |
| Machine Weight | 7,000 lbs |
