2004 Citizen L20 Type VIII
Sold
2004 Citizen L20 Type VIII
$64,500 (USD)
Pennsylvania
Description
C Axis Capability on both Main & Subspindle

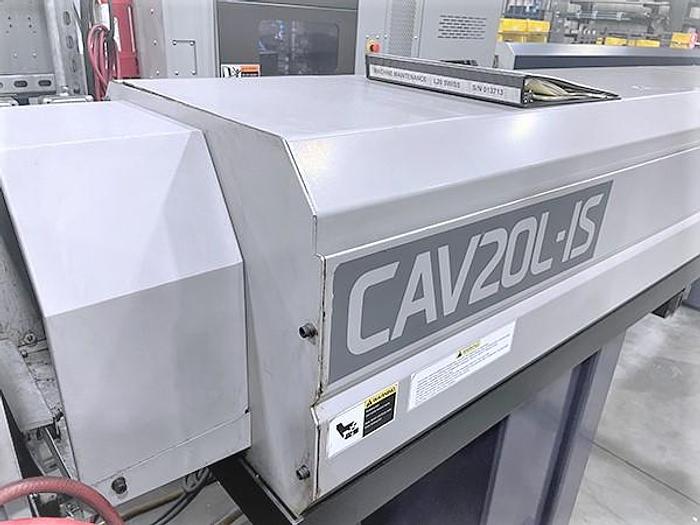

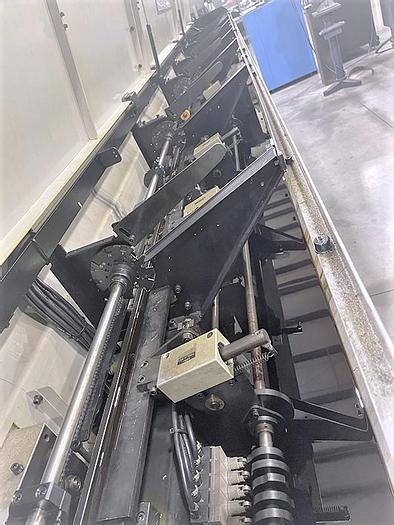

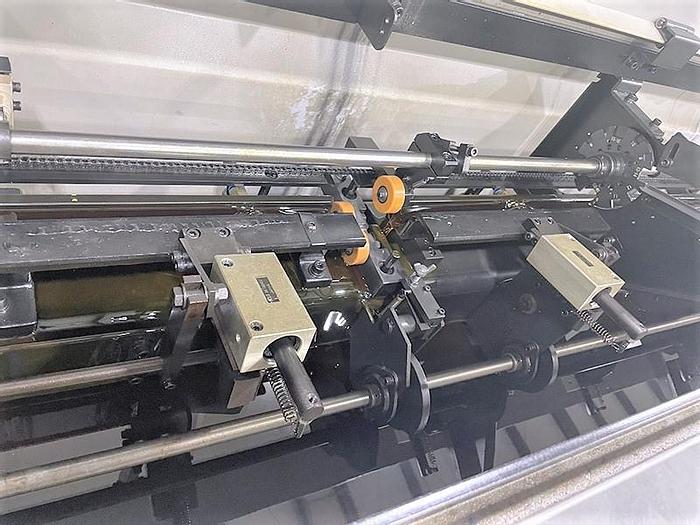

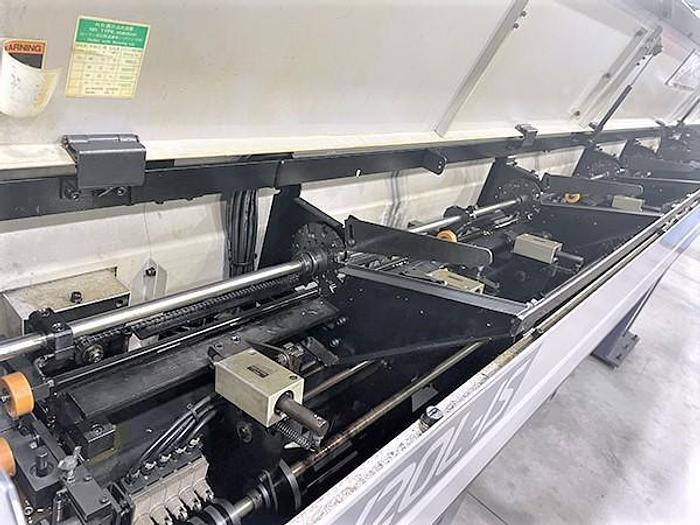

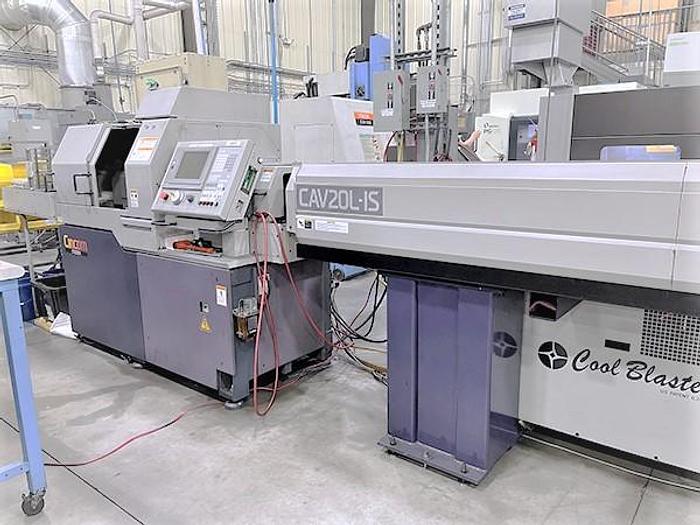

12' CAV 20L-IS Barfeeder

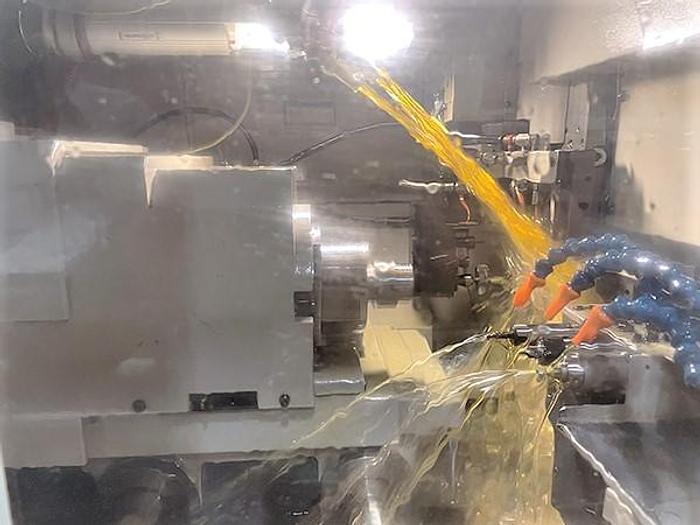

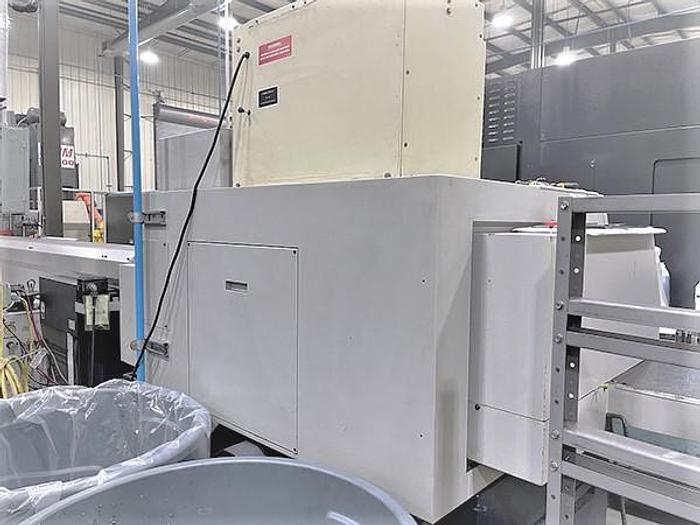

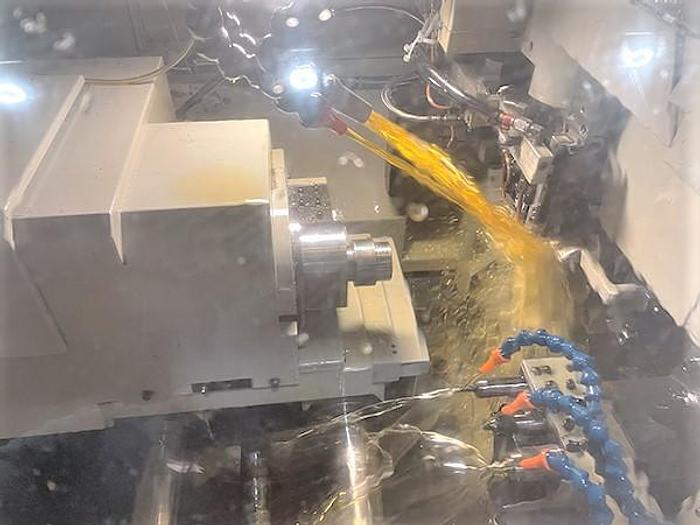

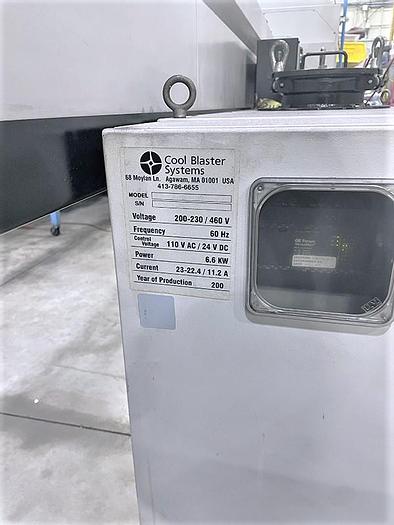

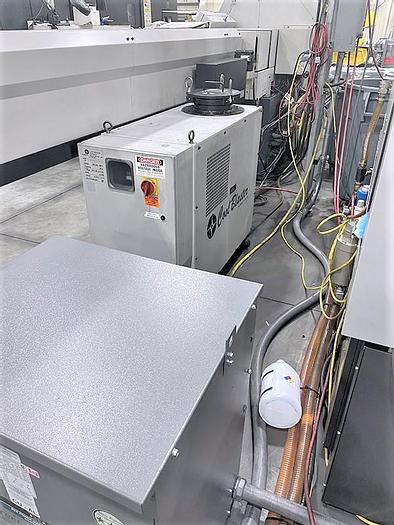

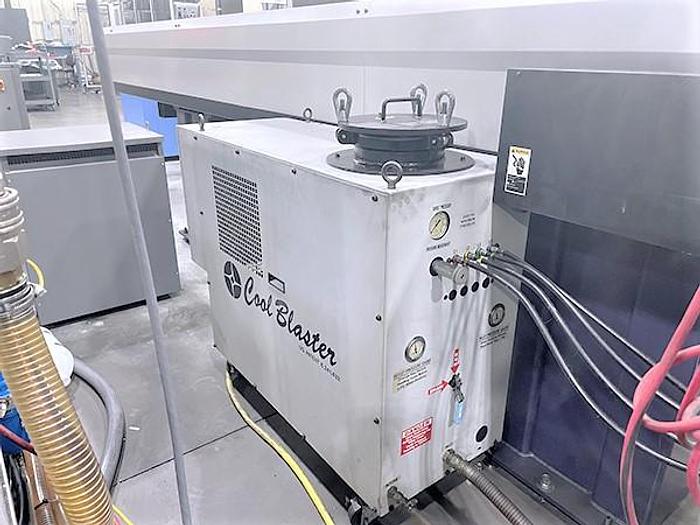

Cool Blaster High Pressure Coolant System

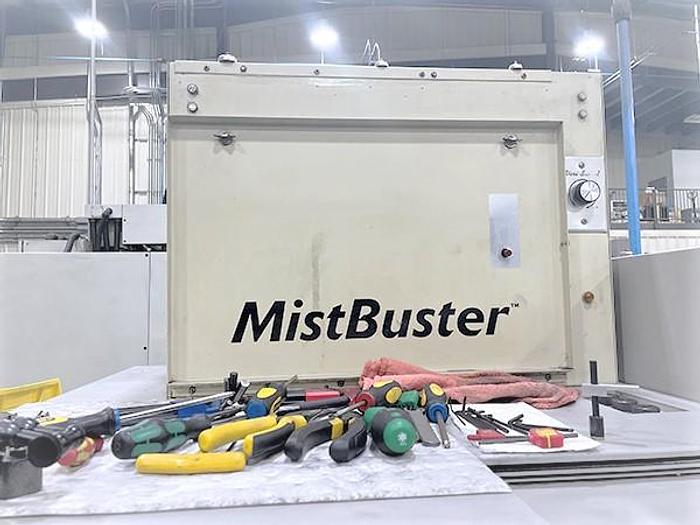

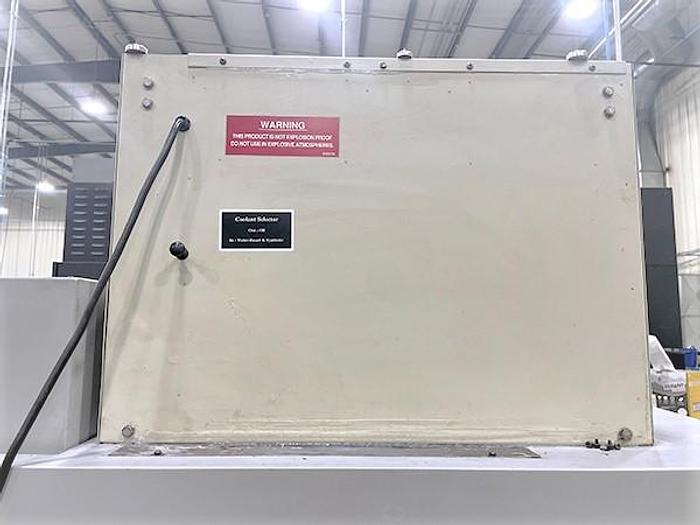

Cool Blaster Mist Collector
Parts Exit Conveyor
Parts Catcher

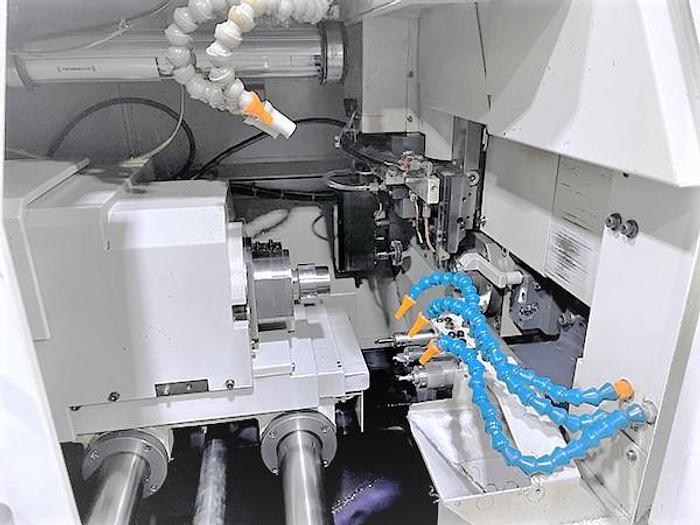

3 Station Live Tool Holder
All Available Manuals
Specifications
| Manufacturer | Citizen |
| Model | L20 Type VIII |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117962 |
| Machining Diameter | .813" |
| Maximum Bar Capacity | .813" |
| Maximum Cutting Length | 7.88" |
| Maximum Drilling Diameter | .375" |
| Main Spindle Indexing | C Axis |
| Subspindle Indexing | C Axis |
| Main & Subspindle Speeds | 10,000 rpm / 8,000 rpm |
| Main Spindle / Sub Spindle Motor | 5 HP / 2 HP |
| Number of Tool Positions | 18 Total / 7 Live Tool Positions |
| Gang Slide Tool Positions | 5 Turning Positions |
| Front / Back Work Tool Post Positions | 3 Front ID / 3 Back ID |
| Live Milling Speed / Motor | 4,500 RPM / 1.34 HP |
| Controllable Axes | 4 |
| Machine Dimensions LxWxH | 84"x47"x71" |
| Machine Weight | 5,070 lbs |
