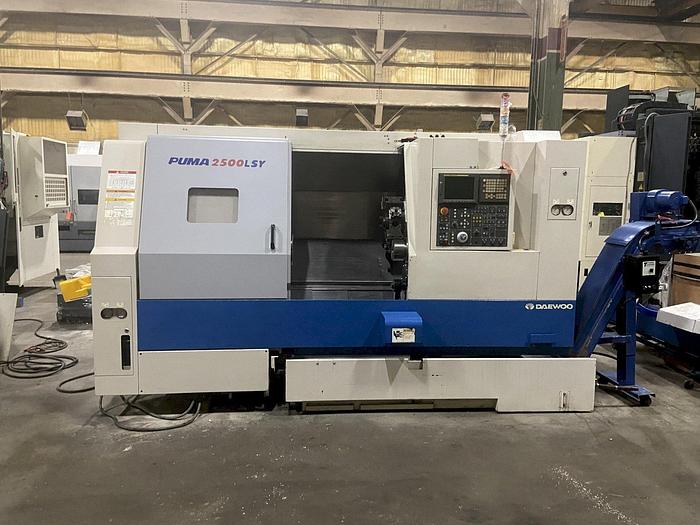

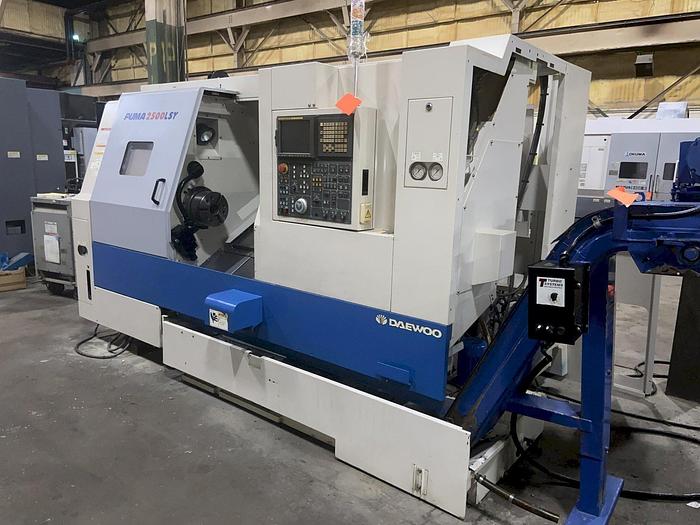

2005 Doosan/Daewoo Puma 2500LSY

No longer available

2005 Doosan/Daewoo Puma 2500LSY

$59,500 (USD)

Michigan

Description

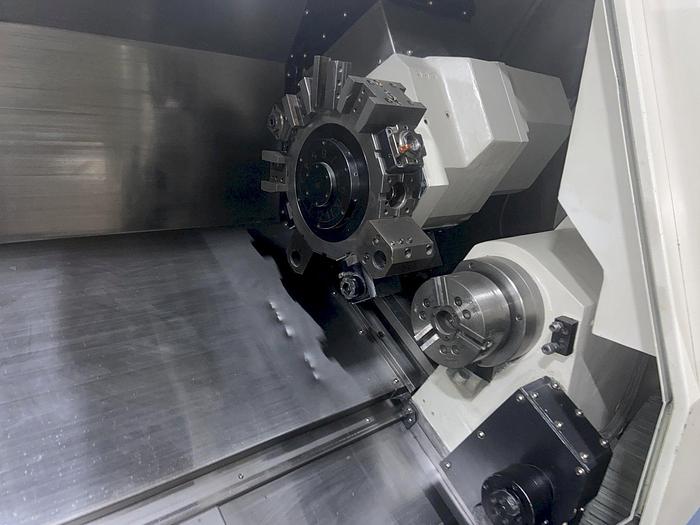

Subspindle Full C Axis Spindle Rotation - Both Spindles Live Milling/Drilling Capability Y Axis Capability

Chip Conveyor Parts Catcher Parts Exit Conveyor

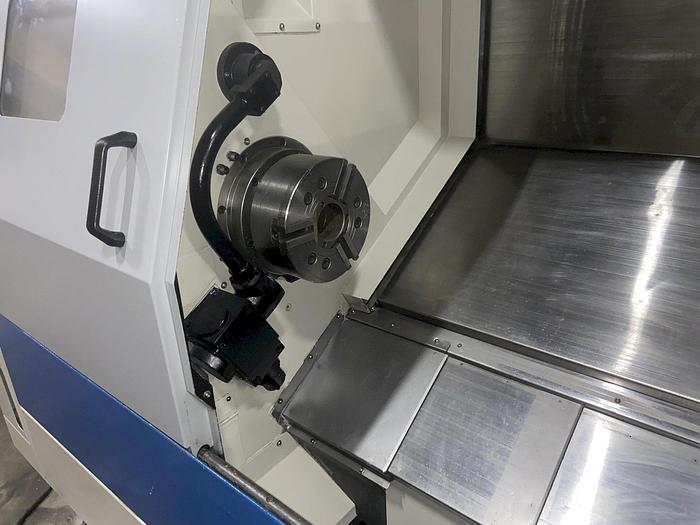

10" 3 Jaw Hydraulic Chuck on Main Spindle

6" 3 Jaw Hydraulic Chuck on Subspindle Long Bed Design Option PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways

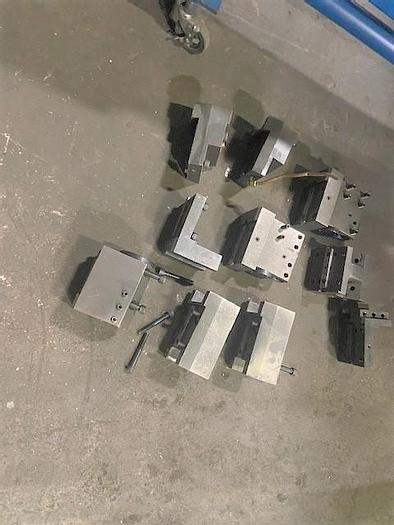

(2) Axial Live Holders and (2) Radial Live Holders

(2) Boring Bar Holders

14,891 Cutting Hours

Specifications

ManufacturerDoosan/Daewoo
ModelPuma 2500LSY
Year2005
ConditionUsed
Stock Number117860

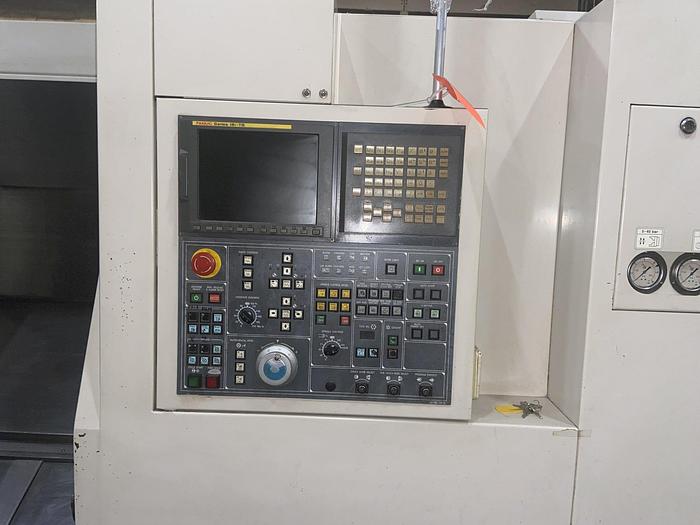

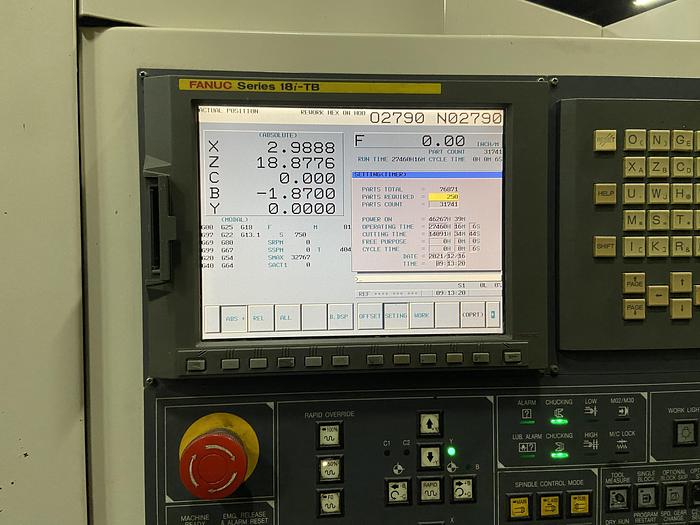

ControlFanuc 18i-TB
Chuck Sizes Main / Subspindle10" Hydraulic / 6" Hydraulic 3-Jaw
Maximum Swing over Bed23.6"
Maximum Cutting Diameter13"
Maximum Machining Length29.5"
Maximum Bar Capacity - Main / Subspindle2.99" / 1.375"
X-axis travel9.8"
Y-Axis Travel3.94"
Z-Axis Travel32.6"
B-Axis Travel (Subspindle)22.8"
C1 Axis Spindle Rotation/C2 Axis Spindle Rotation.001 / .001 Degree
Spindle Nose / Spindle BoreA2-8" / 3.54"
Spindle Speeds - Main35 - 3,500 RPM
Spindle Motor - Main30 HP
Subspindle Nose / Subspindle BoreA2-5" / 1.77"
Subspindle Speed / Subspindle Motor6,000 RPM / 10 HP
Rotary Tool Speed / Rotary Motor6,000 RPM / 5 HP

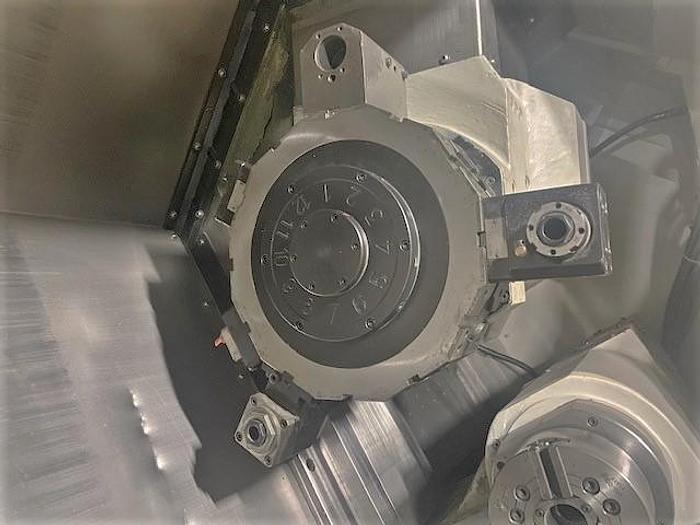

Number of Turret Positions12 Station Turret
Rapid Traverse Rates X/Z/Y/B790 / 945 / 295 / 787 IPM
Machine Dimensions125" x 67"
Machine Weight11,670 lbs.
