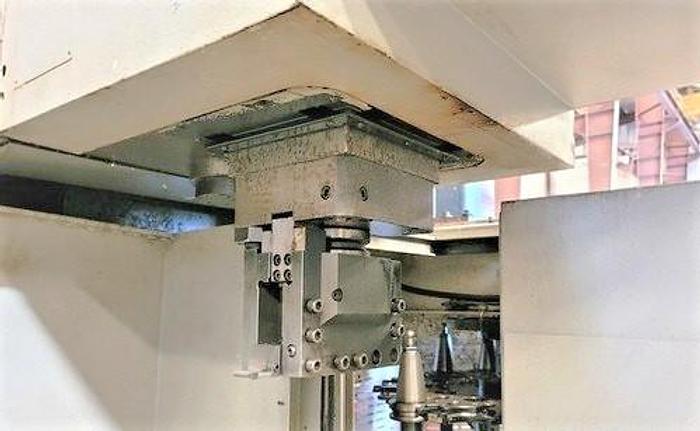

2006 You-Ji YV1200 ATC+C

2006 You-Ji YV1200 ATC+C

$139,500 (USD)

Louisiana

orCall (863) 439-6066

Description

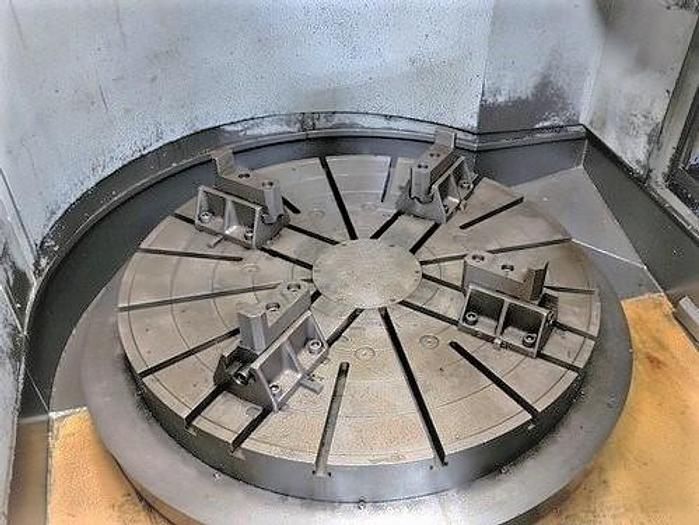

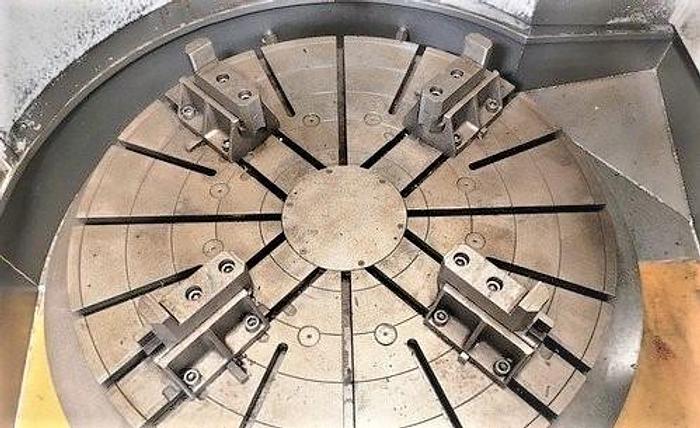

49.21" 4 Jaw Chuck

C Axis Chuck Rotation Live Milling Capability Coolant Through the RAM

Chip Conveyor

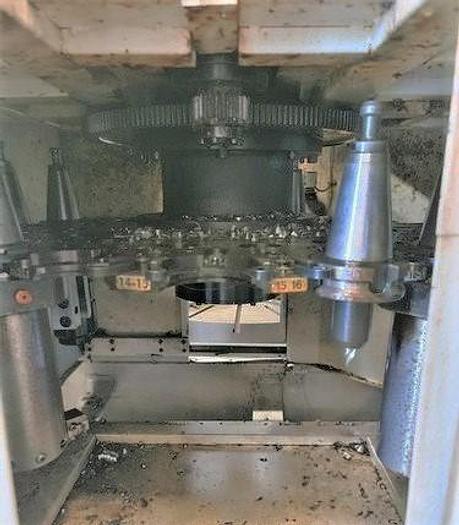

Coolant Through the Spindle 16 Station Tool Changer

Oil Chip Separator Unit

RS 232 Port Interface

Miscellaneous Tooling All Available Manuals

Specifications

ManufacturerYou-Ji
ModelYV1200 ATC+C
Year2006
ConditionUsed
Stock Number117858

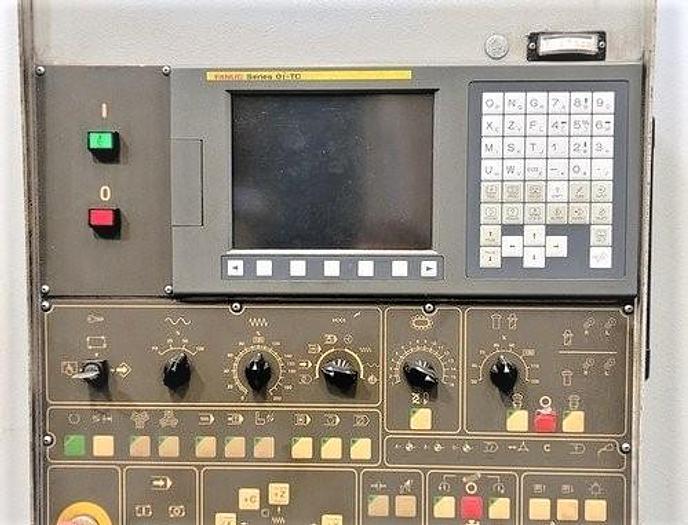

ControlFanuc 0i-TC
Table Diameter49.21"
Maximum Swing63"
Maximum Table Load11,023 lbs.
Maximum Turning Diameter53.15"
Maximum Turning Height47.2"
X-Axis Travel36.81"
Z-Axis Travel35.43"
C Axis Table Rotation0.001 Degree
Cross Rail Travel29.5"
Table Speed2 - 350 RPM
Table Motor60 HP
Milling Tool TaperBT 50
Live Milling Speed2 - 2,400 RPM
Transmission2 Speed Geared
Live Milling Motor15 HP
Number of Tool Positions9 Milling / 9 Turning
Cutting Feedrates.03 - 78.74"
Rapid Traverse Rates X/Z472 IPM / 393 IPM
Machine Dimensions157" x 236"
Machine Weight51,000 lbs.
