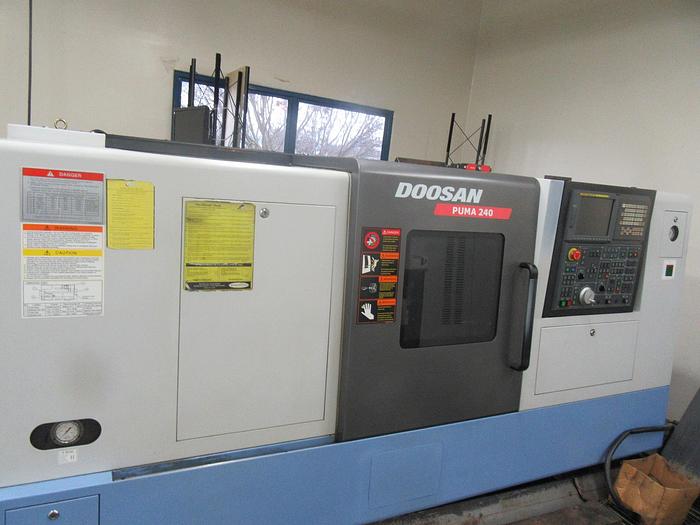

2007 Doosan/Daewoo Puma 240B
No longer available
2007 Doosan/Daewoo Puma 240B
$39,500 (USD)
Location:California
Description
8.25" 3 Jaw Hydraulic Chuck
Programmable Tailstock
Tool Setter
Chip Conveyor
RS-232 Interface
Coolant System with Tank & Pump
New November 2007
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 240B |
| Year | 2007 |
| Condition | Used |
| Stock Number | 117853 |

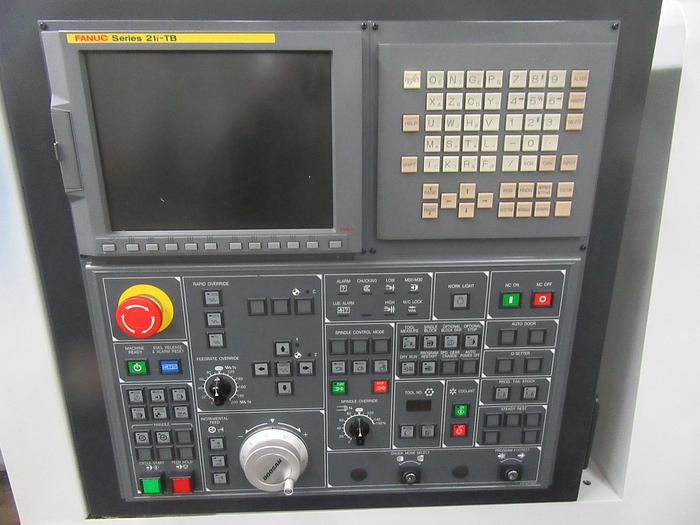

| Machine Control | Fanuc 21iTB w/9" LCD Screen |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 21.7" |
| Maximum Swing Over Cross Slide | 15.4" |
| Maximum Turning Diameter | 13.8" |
| Maximum Turning Length | 21.6" |
| X-Axis Travel | 9.25" |
| Z-Axis Travel | 22.8" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 2.99" / 2.5" |
| Spindle Speeds | 45-4,500 rpm |
| Spindle Motor | 25 hp |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 945 ipm / 1,200 ipm |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 3" / #4 MT |
| Floor Space Requirement | 124" x 63" |
| Machine Weight | 9,470 lbs |
