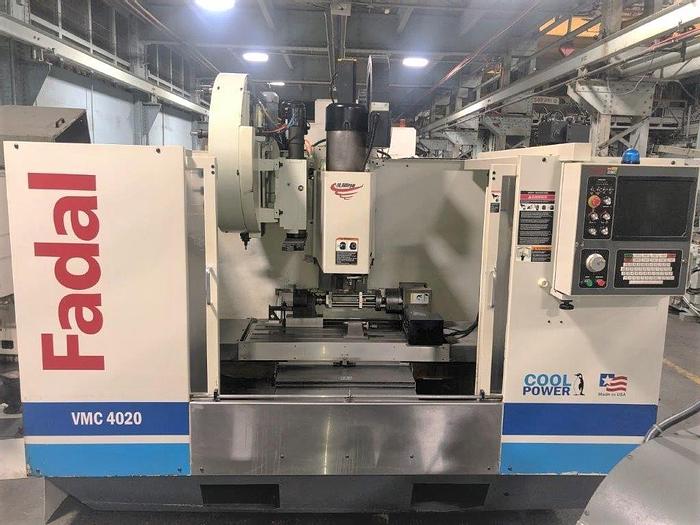

2006 Fadal VMC4020HT

2006 Fadal VMC4020HT

$29,500 (USD)

New Jersey

orCall (863) 439-6066


24 Station Side Mounted Tool Changer

4th Axis Drive

Fadal VH65 4th Axis Rotary Table

10,000 RPM Spindle

Boxed Ways

High Torque Spindle Motor 2 Speed Spindle Drive RS 232 Port Interface

Multi Processor Control

Coolant System with Tank & Pump

Miscellaneous Tool Holders

Wired 240V 3 Phase Electrics


Stock Number117845
ControlFadal Multi Processor Control
Table Size48" x 20"
Maximum Table Load3,000 lbs.
Distance Spindle Nose to Table Top4" - 24"
X-Axis Travel40"
Y-Axis Travel20"
Z-Axis Travel20"
Spindle TaperCAT 40
Spindle Speeds10,000 rpm
Spindle Motor22.5 HP
Tool Magazine Capacity24 Station Side Mounted Tool Changer
Maximum Tool Diameter / Length / Weight4.5" / 15" / 15 lbs
Rapid Traverse Rates (X, Y, Z)800 IPM
Machine Dimensions LxWxH116" x 87" x 104"
Machine Weight11,550 lbs.
