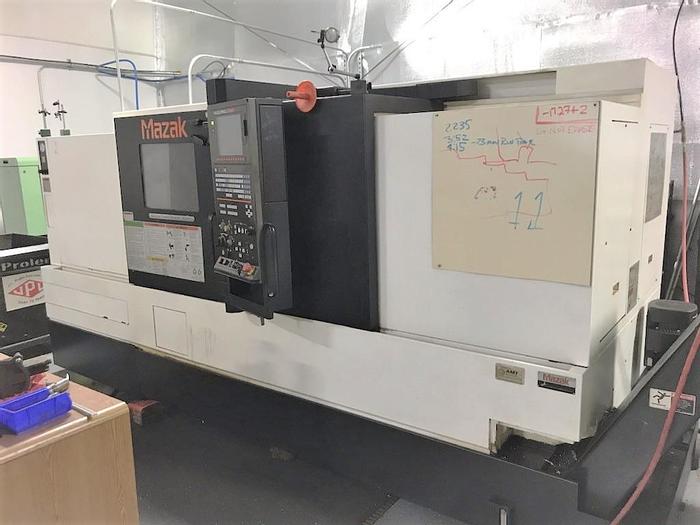

2012 Mazak Quickturn Smart 350M

2012 Mazak Quickturn Smart 350M

$99,500 (USD)


orCall (863) 439-6066


Live Milling/Drilling Capability

Full C Axis Spindle Rotation


Chip Conveyor

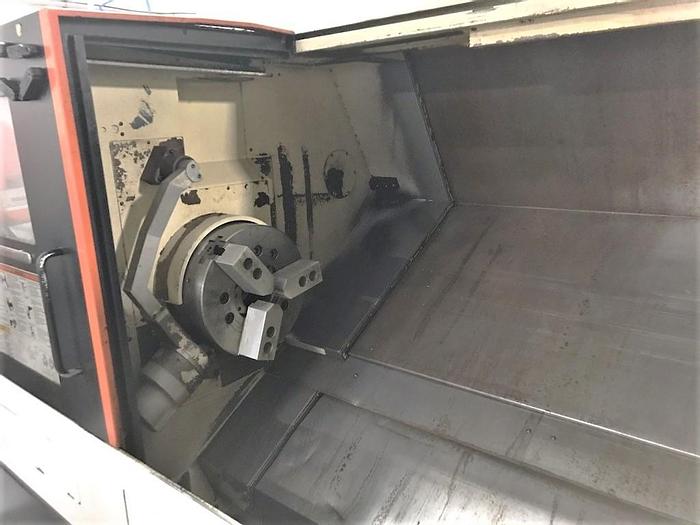

12" 3 Jaw Hydraulic Chuck with 4" Hole through

Automatic Tool Eye

Auto Chuck Jaws Open/Close Confirmation

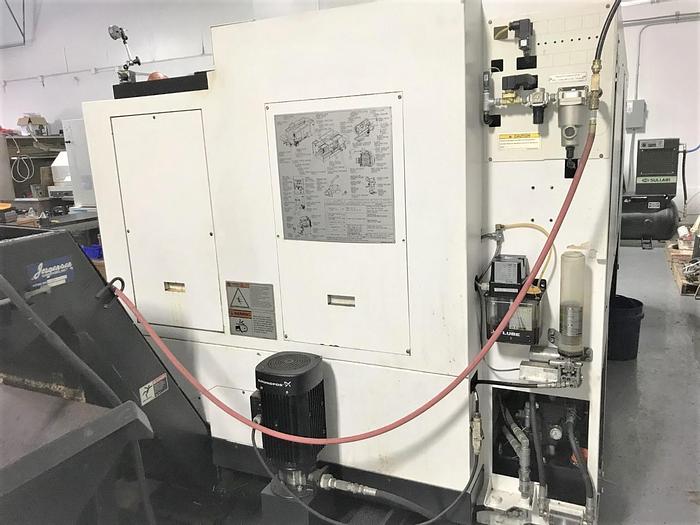

2132 PSI High Pressure Coolant

Re Threading

Thread Point Start

3.5" Floppy Disk Drive Interface

RS 232 Port Interface

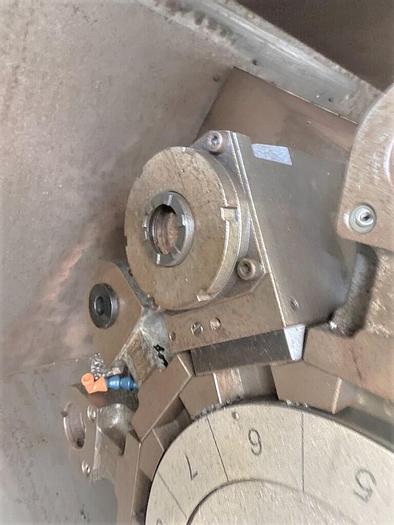

All Available Static Tooling on Turret

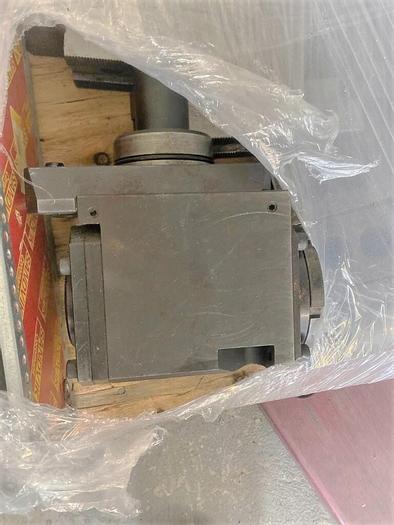

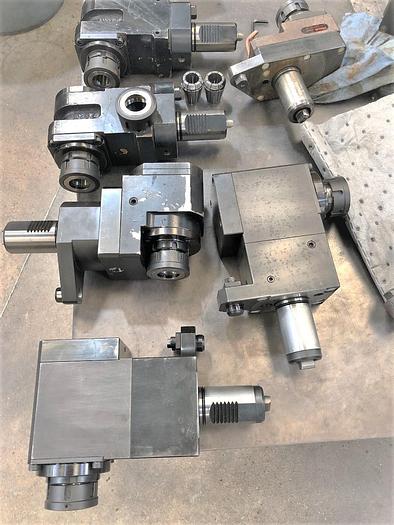

(3) Live Holders included with (2) Axial and (1) Radial Type (all live holders in pictures are NOT included)

All Available Manuals

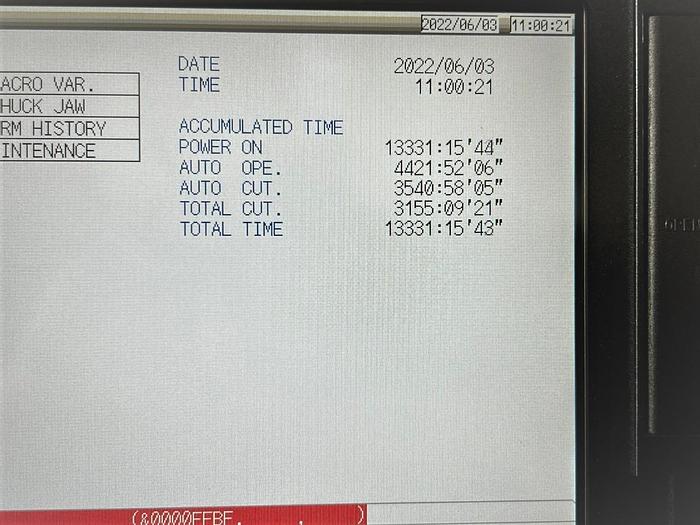

4,421 Auto Operation Hours

3,155 Total Cut Hours

New in March 2012


ModelQuickturn Smart 350M
Stock Number117844

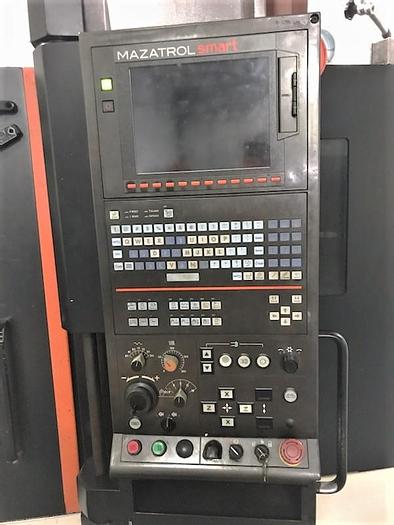

Machine ControlMazatrol Smart Control
Chuck Size12" 3 Jaw Hydraulic Chuck
Maximum Swing28.35"
Maximum Cutting Diameter16.5"
Maximum Turning Length48.67"
X-Axis Travel10.38"
Z-Axis Travel53.13"
Spindle Nose / Bore / Bar CapacityA2-11" / 4.4" / 4.00"
Spindle Motor40 HP
Spindle Speeds3,300 RPM
Rotary Tool Speed / Rotary Motor4,000 RPM / 10 HP
Rapid Traverse Rates1181 IPM

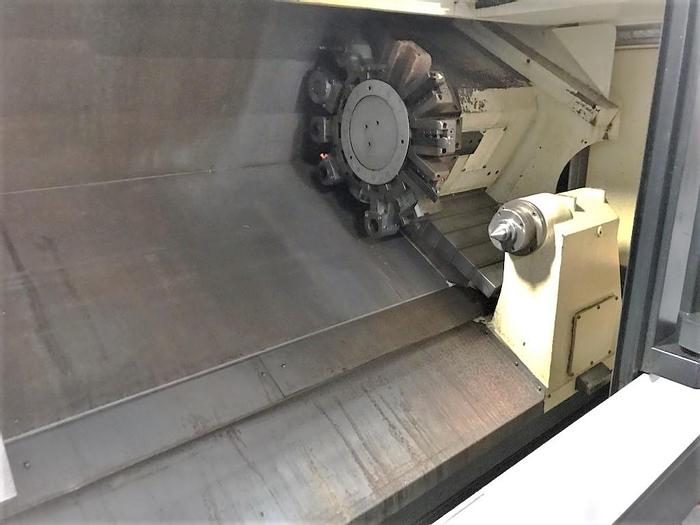

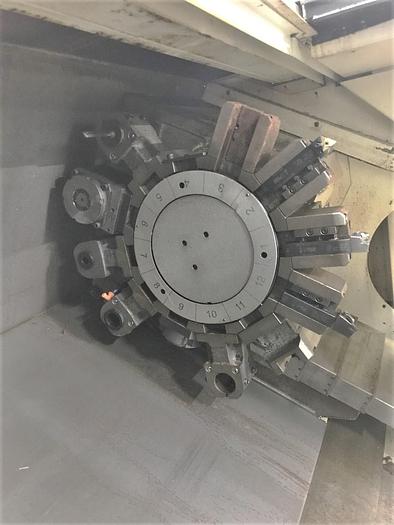

Number of Turret Positions12 Position Turret
Machine Dimensions LxWxHNot Available

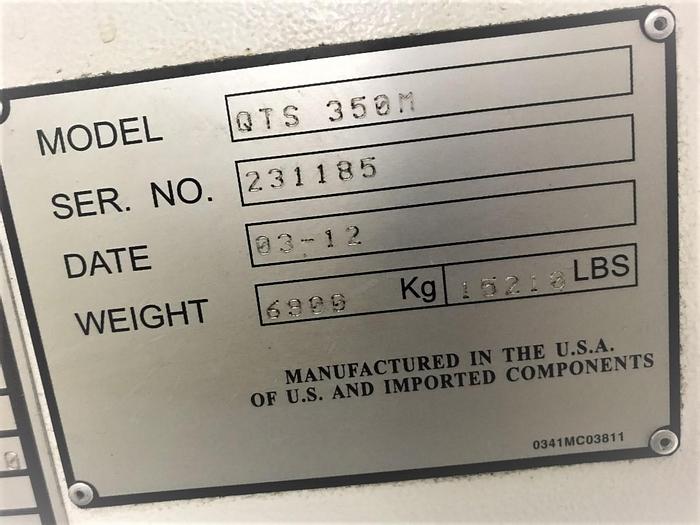

Machine Weight15,218 lbs.
