2013 Summit 16x60B Engine Lathe
No longer available
2013 Summit 16x60B Engine Lathe
$22,950 (USD)
Massachusetts
Description
Coolant System
Full Length Splash Cuard
Steady Rest
Follow Rest

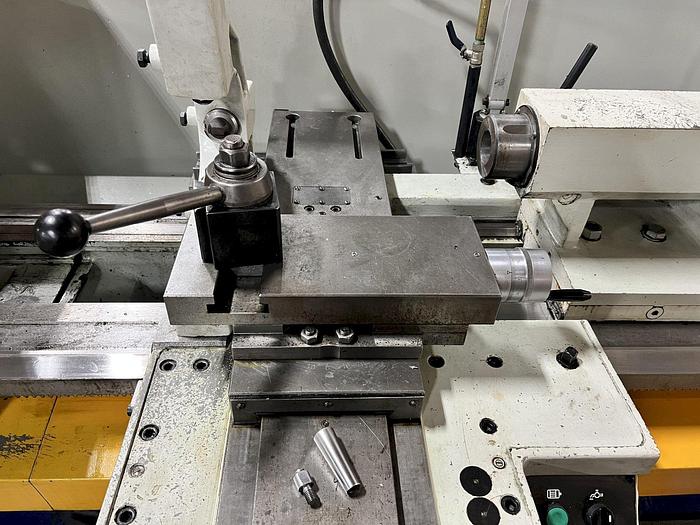

Aloris Style Tool Post
Taper Attachment
Extra Chuck Jaws
All Available Manuals

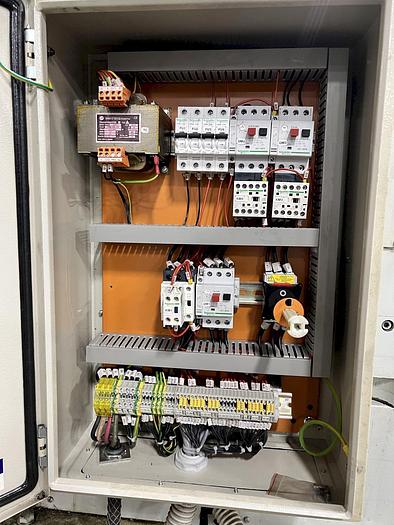

220V / 3 Phase
Specifications
| Manufacturer | Summit |
| Model | 16x60B Engine Lathe |
| Year | 2013 |
| Condition | Used |
| Stock Number | 117843 |

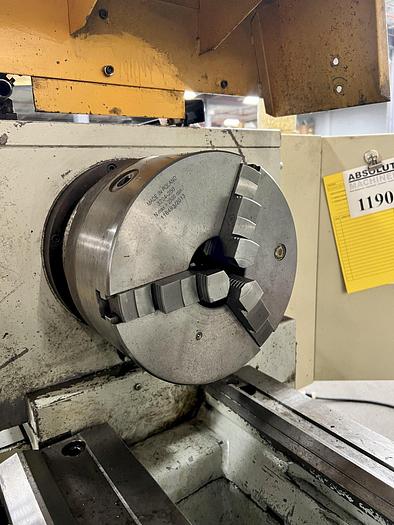

| Chuck Size | 10" 3-Jaw Manual |
| Maximum Swing over Bed | 18" |
| Maximum Swing Over Cross Slide | 9.3" |
| Maximum Swing over Gap | 25" |
| Spindle Nose / Bore / Bar Capacity | D1-8 / 3" / 3" |
| Spindle Speeds | 20-2,000 rpm |
| Spindle Motor | 10 hp |
| Threads Per Inch | .25-60 |
| Metric Threads | .5-120 |
| Tailstock Center | #5MT |
| Machine Weight | 6,200 lbs |
