2019 Mazak Nexus QTN 450M/1000
No longer available
2019 Mazak Nexus QTN 450M/1000
$234,950 (USD)
Texas
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

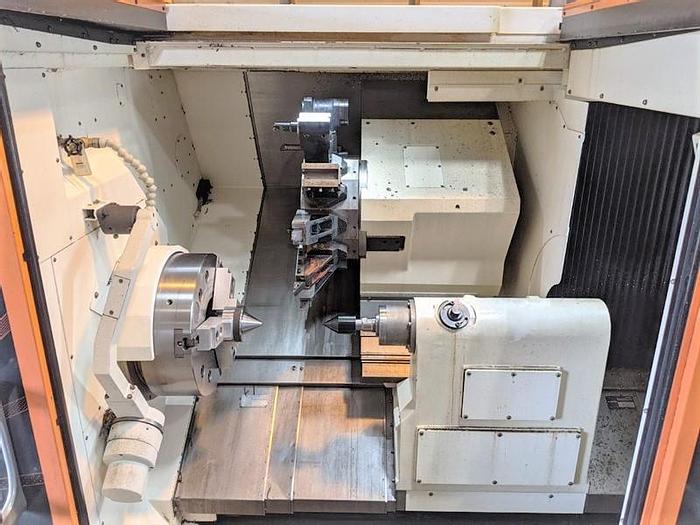

18" 3 Jaw Hydraulic Big Bore Chuck
213 PSI Coolant Thru Mill Head
Automatic Tool Eye
Programmable Tailstock
Chip Conveyor
Additional Coolant Head on Headstock
Auto Tool Life Management
Mill Synchronous Tapping
Auto Pecking Cycle
EIA/ISO Input Function
G54.1
Pitch Error Compensation
Re-Threading
Scaling EXT-Data Input/Output
Thread Point Compensation
Smooth Engraving Function
Coordinate Rotation & Scaling
Geometric Function
Polar Coordinates Input
Hydraulic Pressure Interlock
External Data Input/Output
Comparison Stop
All Available Manuals
All Available Tooling

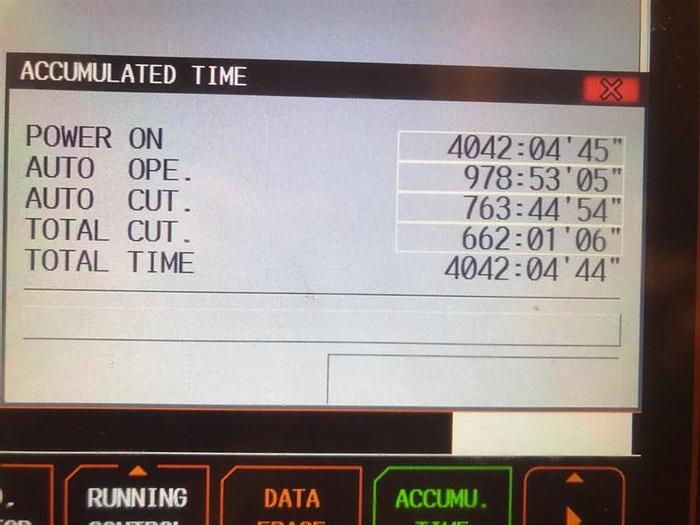

ONLY 4042 Power On Hours
Just 662 Total Cut Hours
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn 450M/1000 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 117842 |

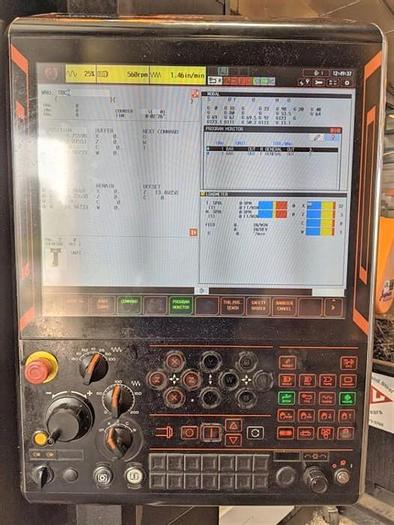

| Machine Control | Mazak Smooth G Control |
| Chuck Size | 18" 3-Jaw Hydraulic |
| Maximum Swing | 33.26" |
| Maximum Cutting Diameter | 22.83" |
| Maximum Turning Length | 43.2" |
| Distance Between Centers | 43.55" |
| X-Axis Travel | 13.38" |
| Z-Axis Travel | 43.2" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-15 / 7.23" / 6.5" |
| Spindle Motor | 50 HP |
| Spindle Torque | 1217 ft/lbs. |
| Spindle Speeds | 2,000 rpm |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 10 HP |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Quill Diameter / Center | 3.94" / #5 MT |
| Number of Turret Positions | 12 Sided / 24 Positions |
| Machine Dimensions LxWxH | 144"x90"x80" |
| Machine Weight | 22,266 lbs |
