2008 Mazak Integrex 400-IV S/1500
No longer available
2008 Mazak Integrex 400-IV S/1500
$157,500 (USD)
Location:Texas
Description

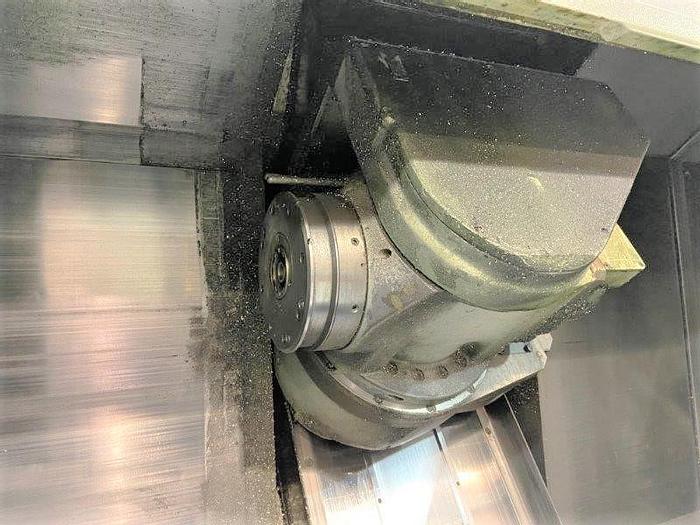

Y Axis Capability B Axis Pendulum Head Subspindle Full "C" Axis Main Spindle and Subspindle Live Milling/Drilling Capability 12" & 10" 3 Jaw Hydraulic Chucks 40 Tool Magazine

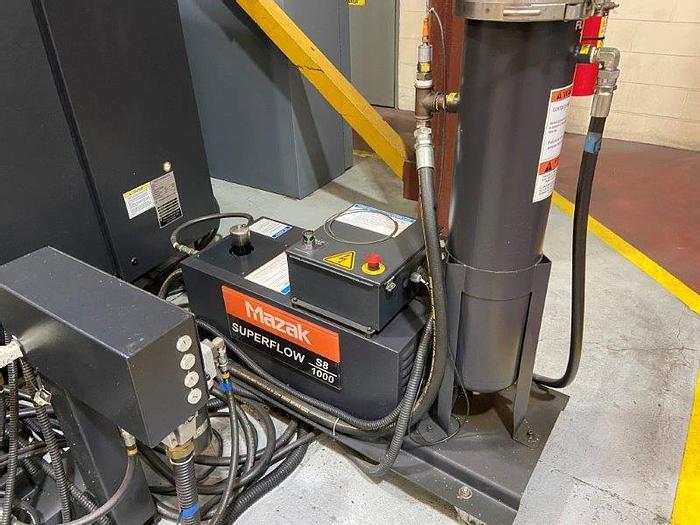

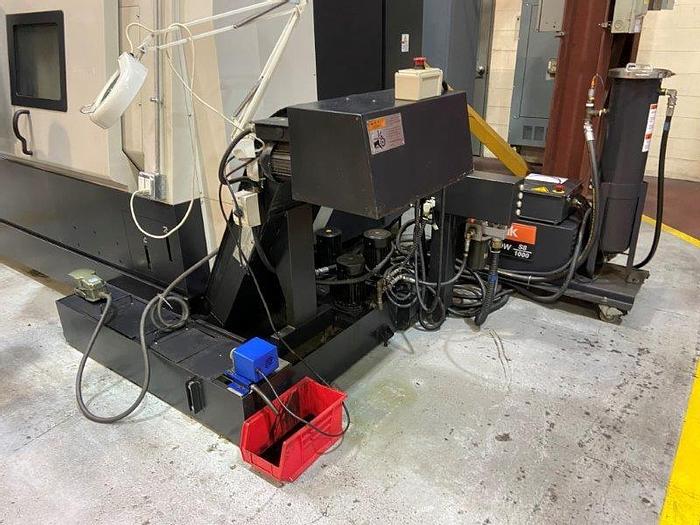

1000 PSI Mazak Super Flow S8/1000 High Pressure Coolant Coolant Thru Mill Head Chip Conveyor Automatic Tool Eye Chuck Air Blast Subspindle Main & Subspindle Synchronous Milling Synchronous Tapping IC Memory Card Interface Cardbus Interface - 2 Slots LAN Port Interface USB Port Interface Wired 400V Electrics All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Integrex 400-IV S/1500 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 117841 |

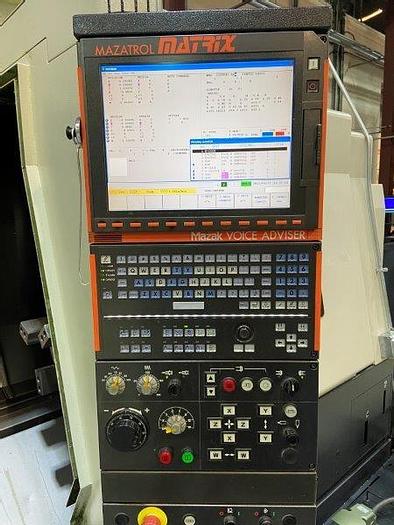

| Control | Mazatrol Matrix |

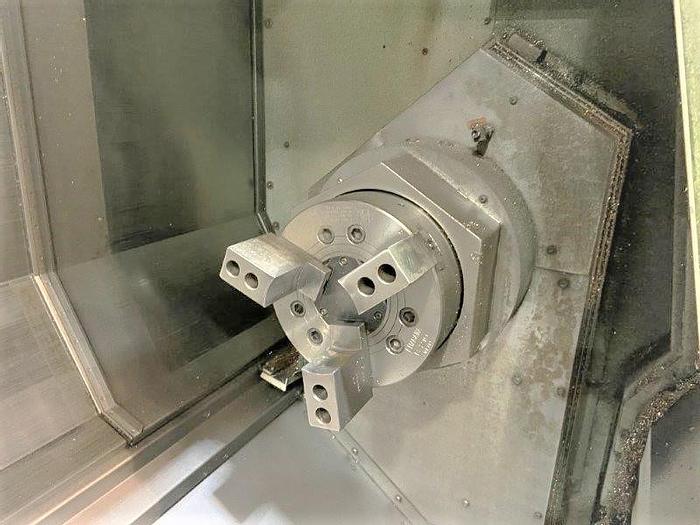

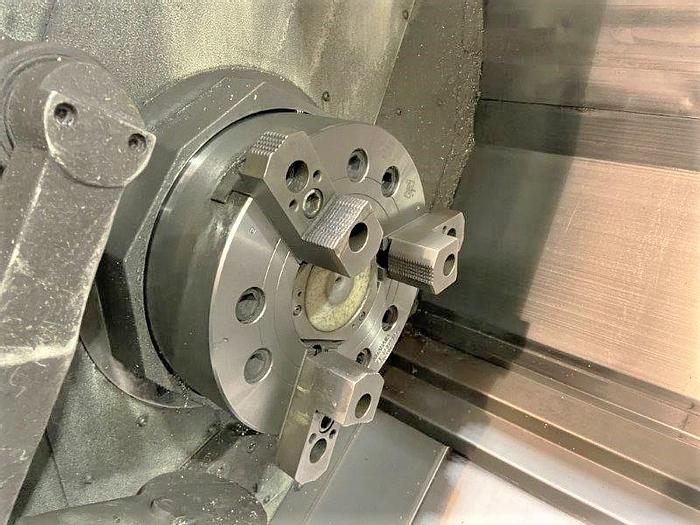

| Chuck Sizes Main / Subspindle | 12" Hydraulic / 10" Hydraulic |
| Maximum Swing / Using Y Axis | 34" / 26"-30" |
| Maximum Cutting Length | 60" |
| Distance Between Chuck Faces | 60.2" |
| X-Axis Travel | 24.8" |
| Y-Axis Travel | +/- 4.53" |
| Z-Axis Travel | 62.41" |
| B-Axis Tilt Movement | 225 Degrees in .001 Increment |
| C Axis Spindle Rotation Main & Subspindle | .0001 Degree |
| W-Axis Travel - Subspindle | 61.97" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 404" / 4.0" |
| Spindle Speeds | 35 - 3,300 RPM |
| Spindle Motor | 40 HP |
| Subspindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 12,000 RPM / 25 HP |
| Number of Tools in ATC - KM63 | 40 Station Tool Changer |
| Rapid Traverse Rates X, Z / Y / W | 1496 IPM / 1024 IPM / 1181 IPM |
| Machine Dimensions | 202" x 93" x 115" |
| Machine Weight | 28,600 lbs. |
