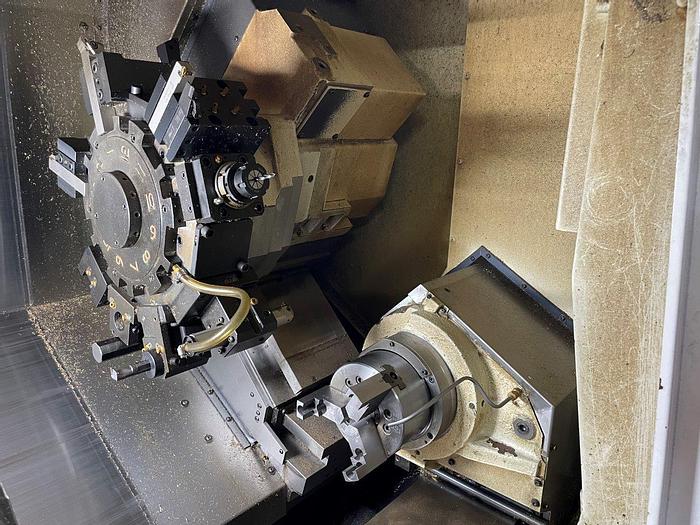

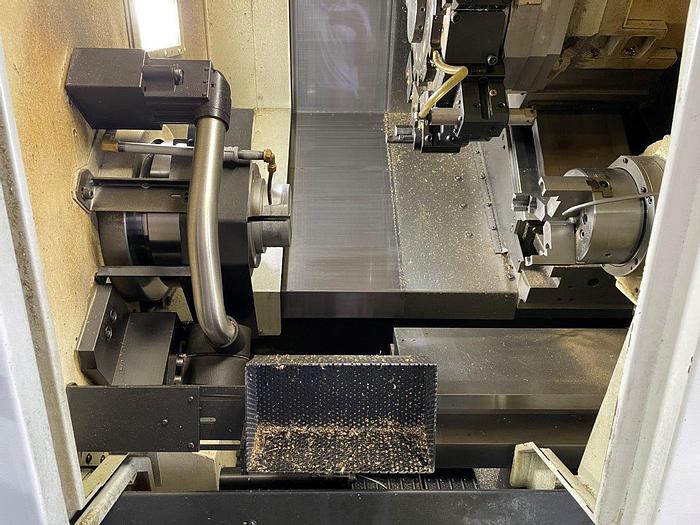

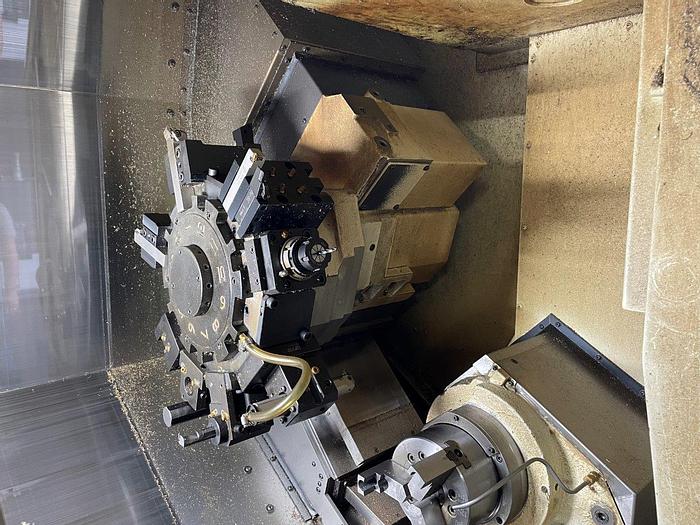

2018 Okuma Genos L300-MYW-e X500

2018 Okuma Genos L300-MYW-e X500

$129,500 (USD)

Location:Texas

orCall (863) 439-6066

Description

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

Subspindle

Y Axis Capability for off centerline work

10" Chuck

Parts Catcher

Chip Conveyor

Tool Presetter

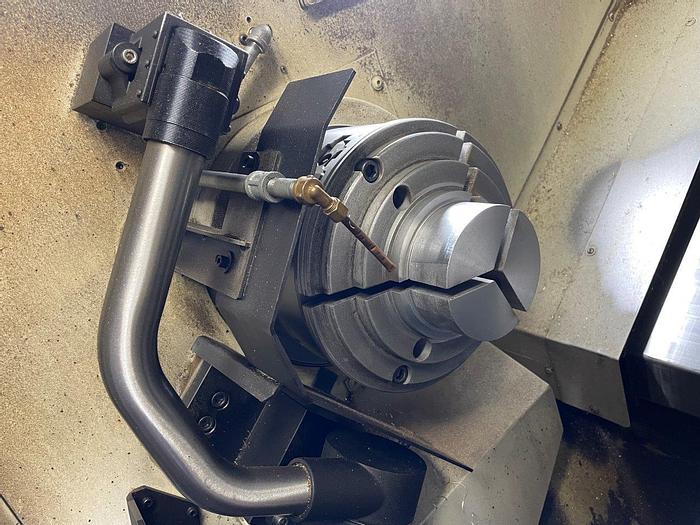

Collet Chuck on Main Spindle

3-Jaw Chuck on Subspindle

Barfeed Interface - Universal Type

AOT IGF P3-Inc M/W/Y

Helical Cutting for X, C and Z-Axes

Off Center Turning Function

Rapid Traverse Override Switch


**Only 781 Cutting Hours**


Tooling Included:

·     WTO EXTERNAL COOLANT RADIAL LIVE TOOL (QTY 4)

·     WTO EXTERNAL COOLANT AXIAL LIVE TOOL, SINGLE (QTY 3)

·     WTO EXTERNAL COOLANT AXIAL LIVE TOOL, DOUBLE (QTY 2)

·     WTO ER32 X ER32 EXTENSION ADAPTER (QTY 3)

·     WTO ER32 TOOL (QTY 1)

·     LYNDEX-NIKKEN STATIC DOUBLE O.D. TOOL HOLDER (QTY 2)

·     O.D. TOOLS (QTY 5)

·     FACE GROOVE TOOL (QTY 1)

·     I.D. BORING BARS (QTY 3)



Specifications

ManufacturerOkuma

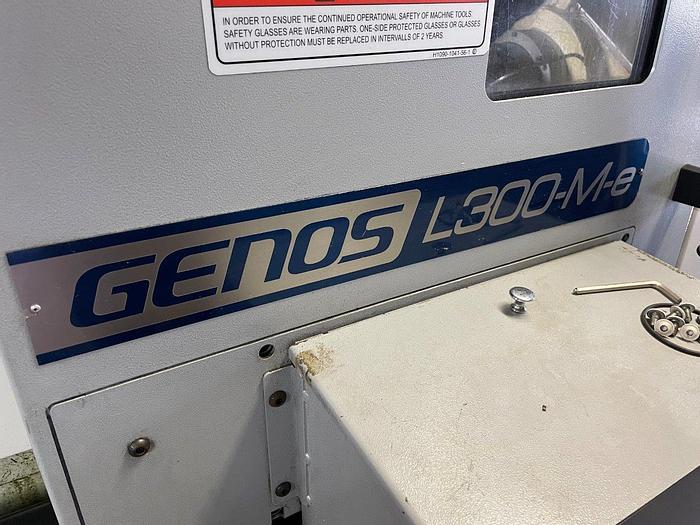

ModelGenos L300-MYW-e X500
Year2018
ConditionUsed
Stock Number117836

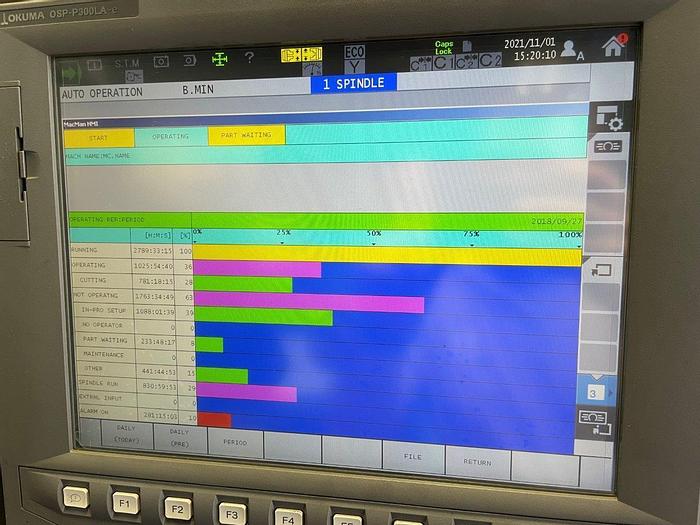

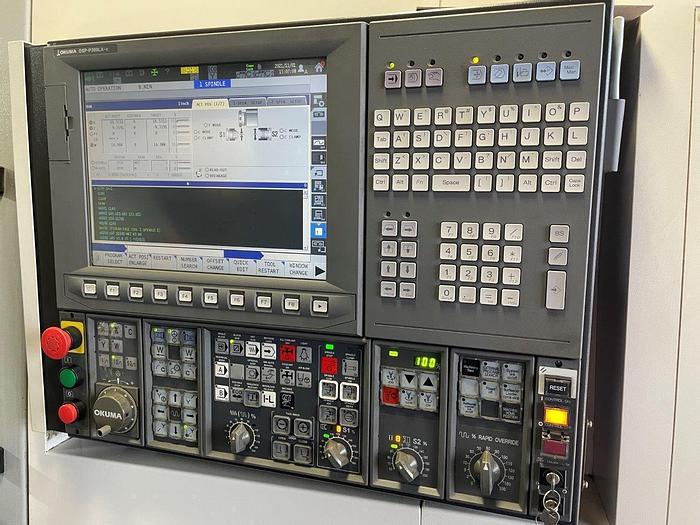

Machine ControlOSP P300LA
Chuck Size10" 3-Jaw Hydraulic
Maximum Swing20.4"
Maximum Turning Diameter11.81"
X-Axis Travel20.47"
Y-Axis Travel3.94"
Z-Axis Travel18.11"
Spindle Nose / Bore / Bar CapacityA2-8 / 3" / 2.75"
Spindle Speed3,000 rpm
Spindle Motor20 hp
Number of Turret Positions12
Subspindle Speed6,000 rpm
Subspindle Motor10 hp
Rotary Tool Speed / Rotary Motor6,000 rpm / 7.5 hp
Machine Dimensions LxWxH131"x95"x87"
Machine Weight13,600 lbs
