2006 Mori Seiki NL2000Y/500
No longer available
2006 Mori Seiki NL2000Y/500
$62,500 (USD)
Maine
Description
8" Hydraulic 3-Jaw & Collet Chuck
Full "C" Axis
Tool Eye

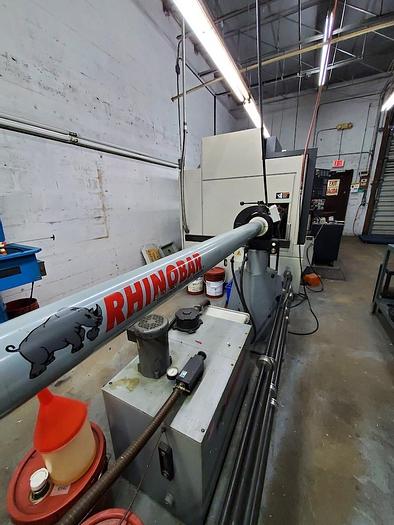

12' Rhino RB 2.5" Barfeed
Parts Catcher
Tailstock
Chip Conveyor

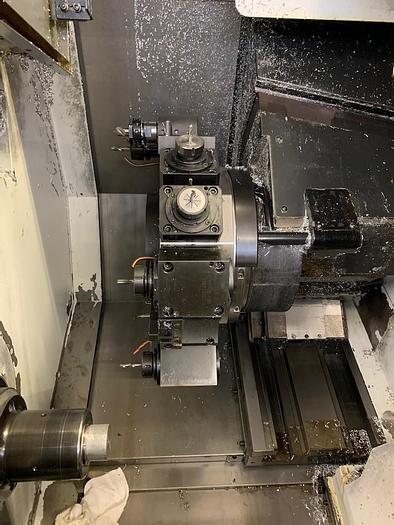

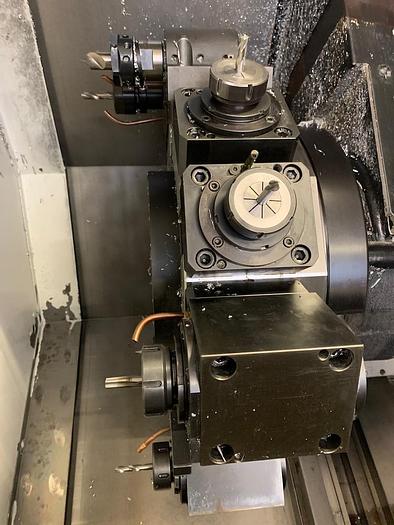

12 Rotary Tools
All Available Manuals
Only Cut Aluminum
Specifications
| Manufacturer | Mori Seiki |
| Model | NL2000Y/500 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 117832 |
| Machine Control | Fanuc MSX-850 III |
| Chuck Size | 8" |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 14" |
| Maximum Turning Length | 20" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | +/-2" |
| Z-Axis Travel | 23.2" |
| C-Axis Rotation | .001 Degrees |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6/ 2.9" / 2.5" |
| Spindle Speed | 5,000 rpm |
| Spindle Motor | 25 hp |
| Number of Turret Positions | 12 |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 7.5 hp |
| Rapid Traverse Rates X, Z / Y | 1181 ipm, 1181 ipm / 393 ipm |
| Machine Dimensions LxWxH | 106"x76"x84" |
| Machine Weight | 112,760 lbs |
