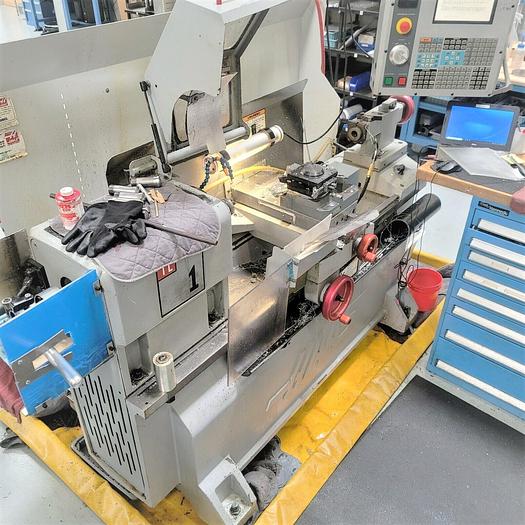

2004 Haas TL-1
No longer available
2004 Haas TL-1
$25,000 (USD)
California
Description
4 Way Indexable Turret Collet Chuck
Tailstock Rigid Tapping Integral Chip-Flow Channel Flip Down Safety Enclosure 1 MB Program Memory Manual Hand Wheels RS 232 Port Interface Haas Intuitive Turning System Vector Drive Spindle
Work Light Able to be wired 208V Three Phase Power or 240V Single Phase Power
Mfg New September 2004
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117831 |

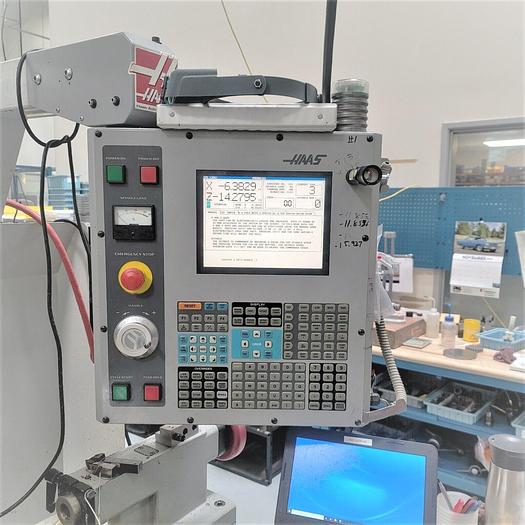

| Control | Haas 32 BIT |
| Chuck Size | Collet Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 7.5 HP |
| Number of Turret Positions | 4 Station Turret |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 84" x 55" x 78" |
| Machine Weight | 4,000 lbs. |
