1999 Haas SL-20T
No longer available
1999 Haas SL-20T
$16,950 (USD)
Location:California
Description

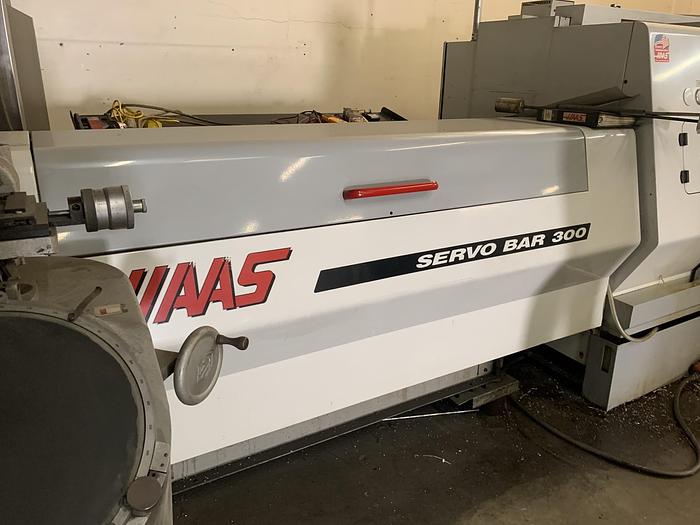

Servo 300 Barfeed w/Spindle Liners
Big Bore Option
Parts Catcher
1MB Memory
Rigid Tapping
Floppy Disk
Chip Conveyor
Status Lights
208/230 V 3 phase
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | SL-20T |
| Year | 1999 |
| Condition | Used |
| Stock Number | 117829 |

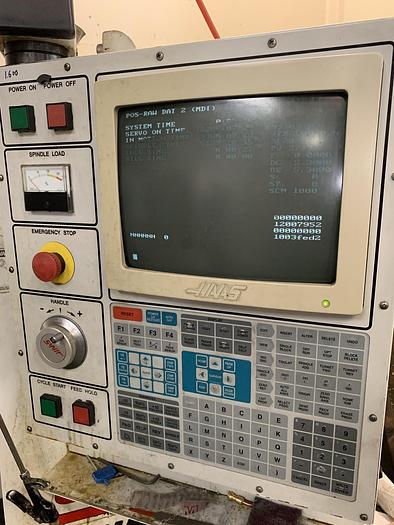

| Machine Control | Haas 32 BIT |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 10" |
| Distance Between Centers | 20" |
| X-Axis Travel | 8.45" |
| Z-Axis Travel | 20" |
| Spindle Speeds | 0-4,000 rpm |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 2.99" / 2.5" |
| Spindle Motor | 20 hp |
| Spindle Torque | 120 ft/lbs |

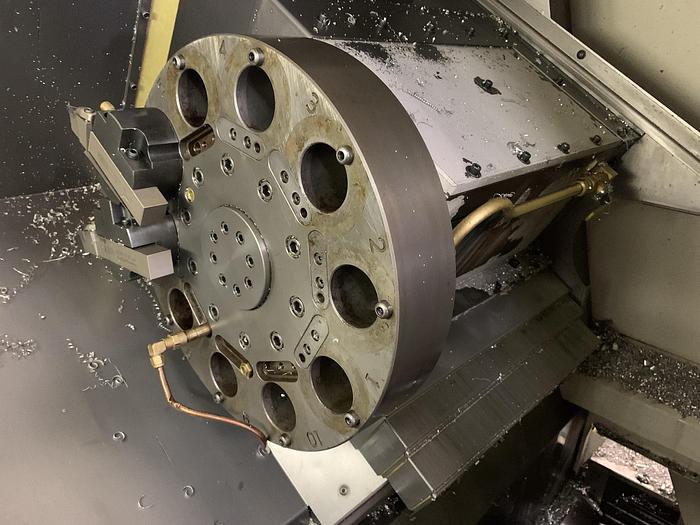

| Number of Turret Positions | 10 |
| Rapid Traverse Rates | 710 ipm |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.9" / 4.7" / #4MT |
| Machine Dimensions LxWxH | 126.5"x62"x72" |
| Machine Weight | 9,000 lbs |
