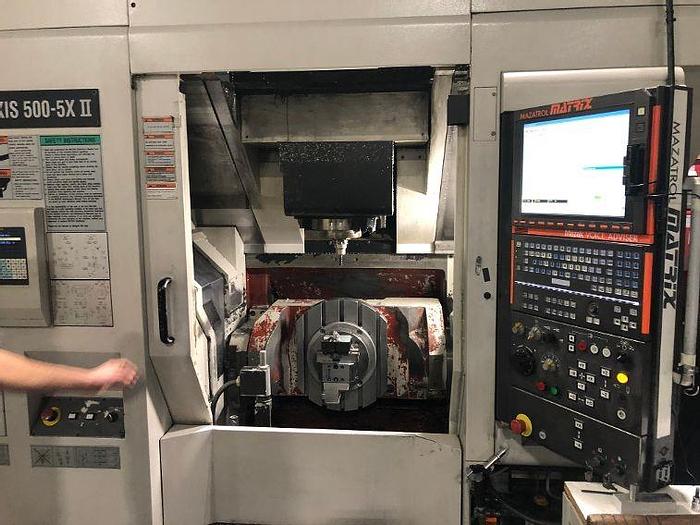

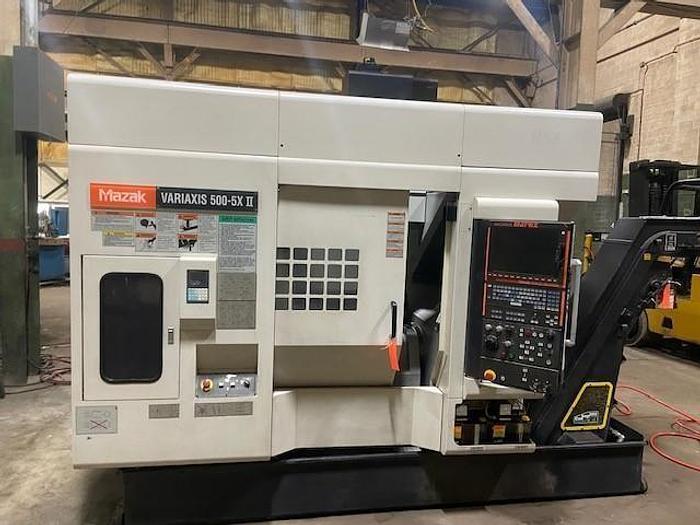

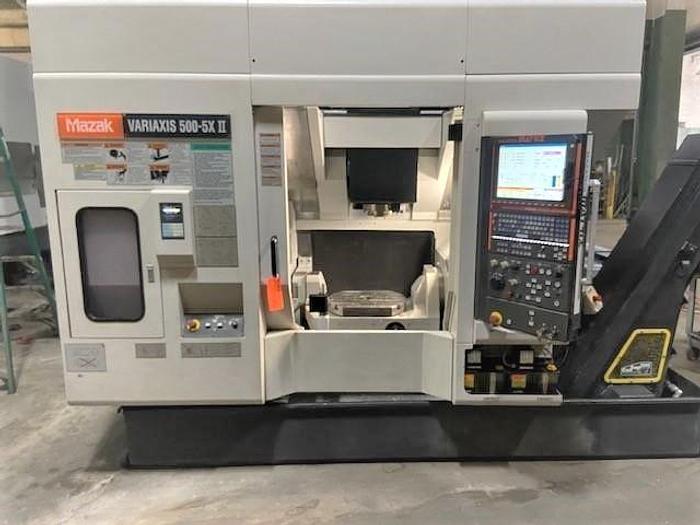

2007 Mazak Variaxis 500-5X II
No longer available
2007 Mazak Variaxis 500-5X II
$79,950 (USD)
Location:Michigan
Description
5 Axis Simultaneous Machining

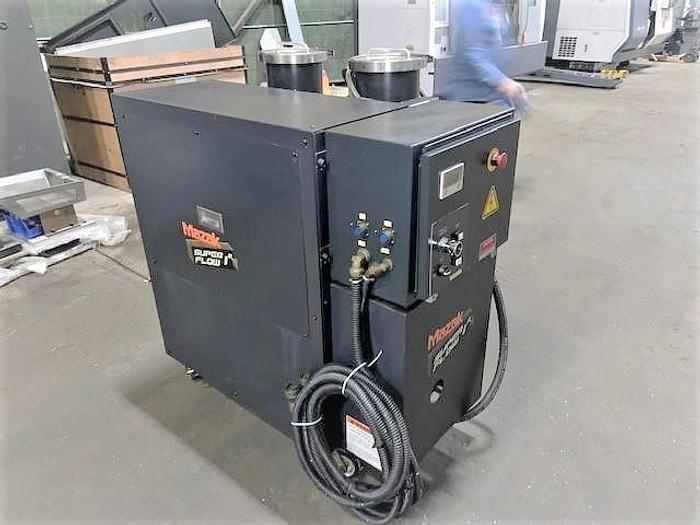

1,000 PSI Mazak Super Flow High Pressure Coolant thru the Spindle
Auto Tool Length Measurement Probe

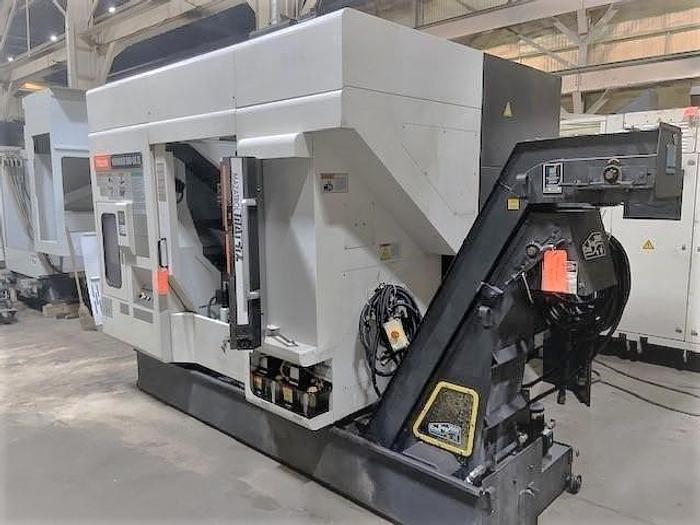

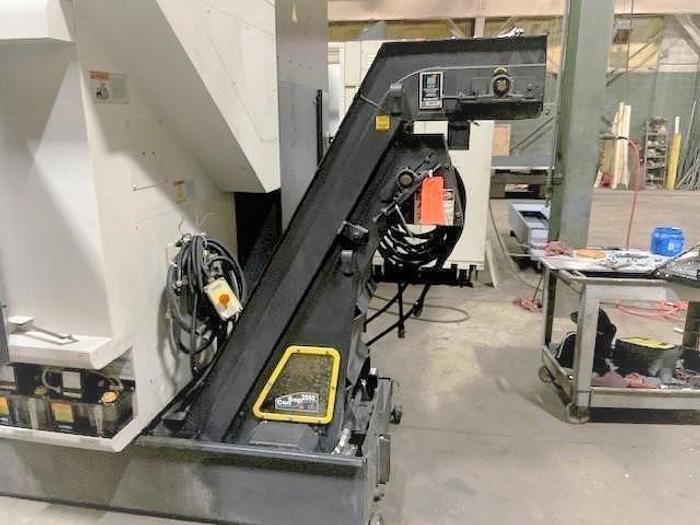

Chip Conveyor - ConSep 2000
Mazak Monitoring System B Part Probing Prepped - Probe itself is NOT included
EIA/ISO Function
EIA Dynamic Compensation
High Smoothing Control
8 MB Program Memory
G00 Slope Constant
Cylindrical Interpolation
Rigid Tapping
Shape Compensation
USB Port Interface
LAN Port Interface

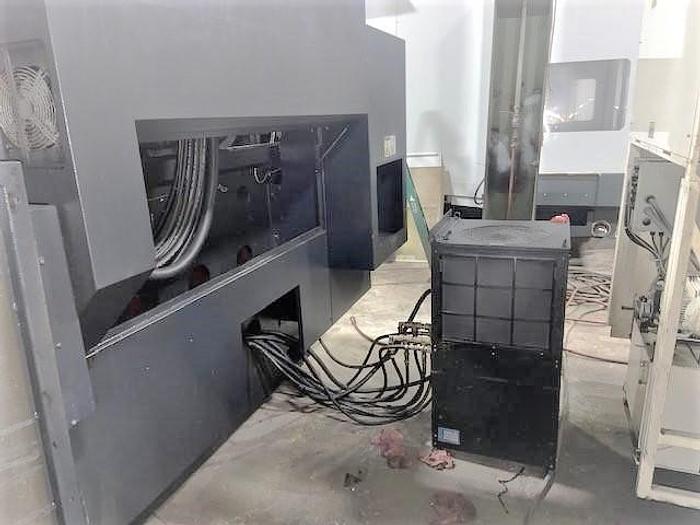

Chiller Unit

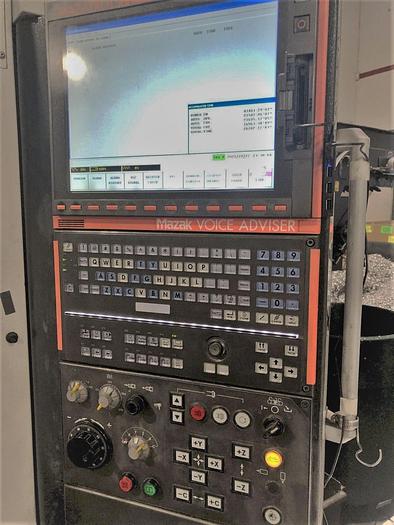

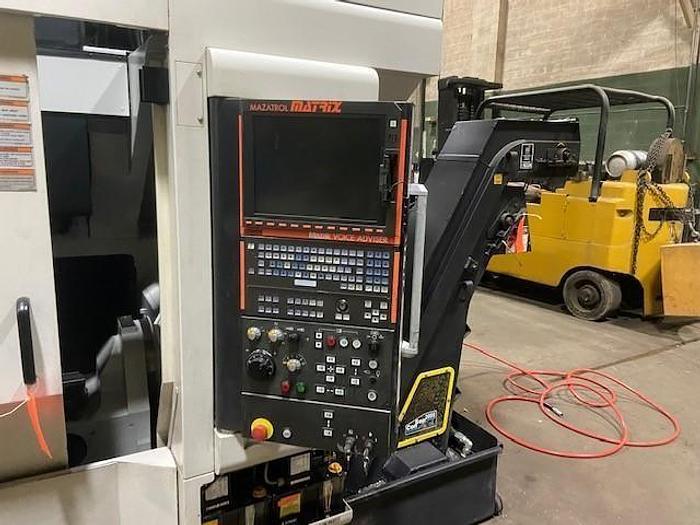

Mazatrol Matrix Control w/15" Color Display

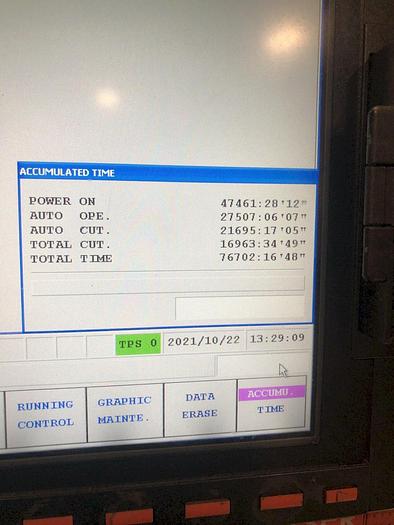

Auto Cut 21,695 hours
Total Cut 16,963 hours
Specifications
| Manufacturer | Mazak |
| Model | Variaxis 500-5X II |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118100 |
| Table Size | 19" x 15" |
| Maximum Table Load | 661 lbs |
| Maximum Workpiece Size | 19"x15"x15" |
| X-axis travel | 20" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 18" |

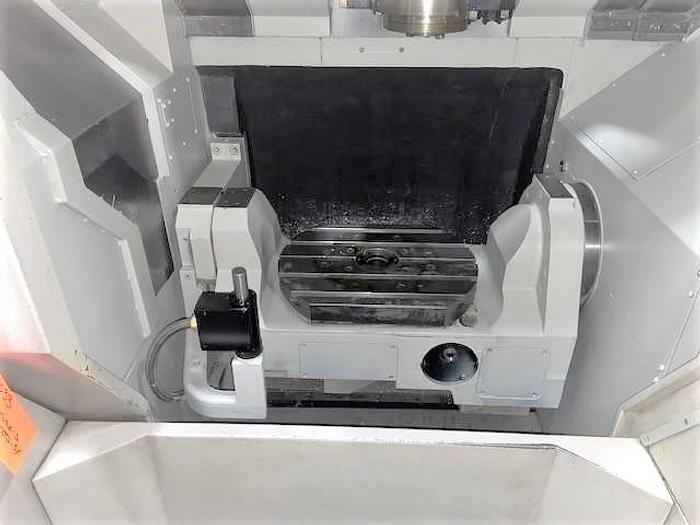

| A-Axis Travel | -120 Deg. to + 30 Deg. Table Tilt |
| C-Axis Rotation | 360,000 Degrees |
| Distance Spindle Nose to Table Top | 7.48" to 25.59" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 40 Position Tool Changer |
| Rapid Traverse Rates | 1,969 IPM |
| Machine Dimensions LxWxH | 110"x115"x109" |
| Machine Weight | 17,554 lbs |
