2019 Haas DS-30Y
No longer available
2019 Haas DS-30Y
$149,500 (USD)
Ontario, Canada
Description
Full C Axis Spindle Rotation
Live Milling (4,000 RPM)
Y-Axis
Subspindle

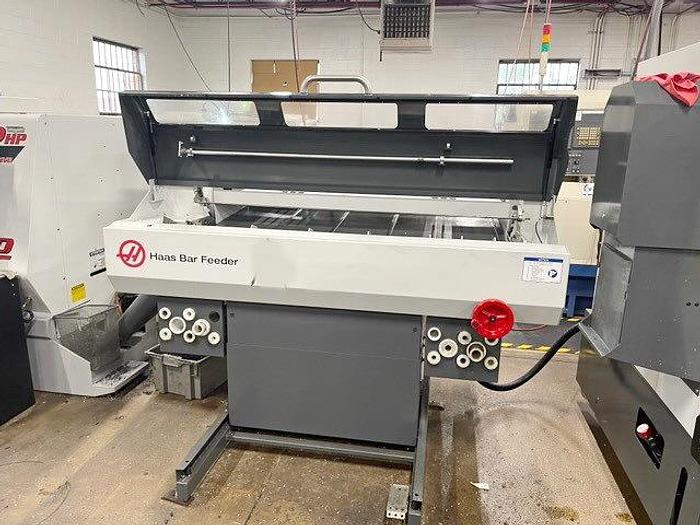

Haas Magazine Barfeed

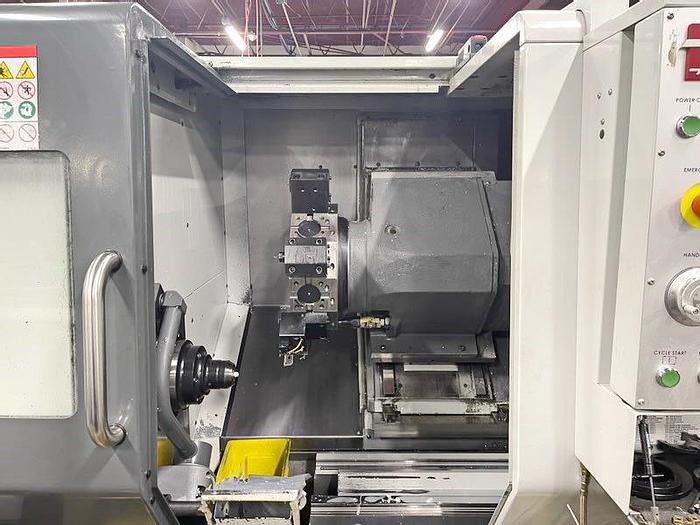

12 Position Turret w/Live Milling
10" 3-Jaw Chuck for Main Spindle
8" 3-Jaw Chuck for Subspindle
Tool Presetter
Parts Catcher

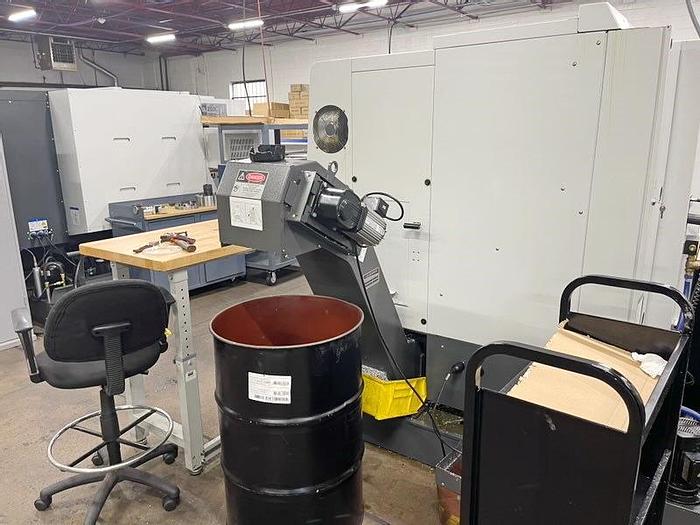

Belt Style Chip Conveyor
Spindle Orientation
Rigid Tapping
CNC Control Cabinet Cooler
Visual Part Programming System
USB Port Interface
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Haas |
| Model | DS-30Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 117821 |
| Chuck Sizes Main / Subspindle | 10" / 8" Hyd Chucks |
| Maximum Swing over Bed | 31.75" |
| Maximum Swing Over Cross Slide | 20.75 |
| Maximum Cutting Diameter | 18" |
| Maximum Cutting Length | 23" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| C-Axis Rotation | .001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3" |
| Spindle Motor | 30 HP |
| Spindle Speeds | 0 - 4,500 rpm |
| Subspindle Nose / Bore / Bar Capcity | A2-5" / 2.4" / 2" |
| Subspindle Motor | 20 HP |
| Subspindle Speed | 4,800 rpm |
| Turret Type | 12 Position BMT65 |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1,200 IPM |
| Machine Dimensions LxWxH | 171" x 90" x 92" machine only |
| Machine Weight | 16,000 lbs |
