2015 DMG-Mori NLX2500SY/700
No longer available
2015 DMG-Mori NLX2500SY/700
$189,500 (USD)
Location:Illinois
Description
Celos Ergoline Touch Screen w/MAPPS V CNC Control

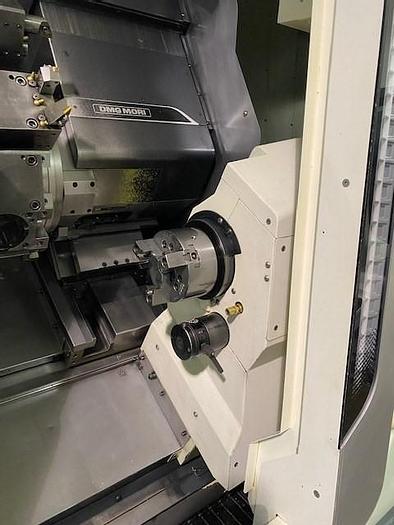

Subspindle Full C Axis Spindle Rotation Live Milling/Drilling Capability
Y Axis Capability Chip Conveyor Parts Catcher

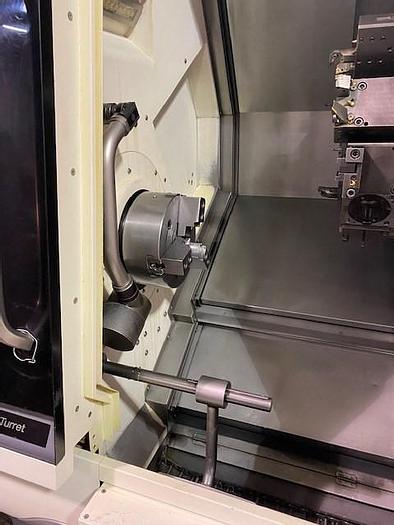

Tool Presetter on both Spindles
RS 232 Port Interface Coolant System with Tank & Pump
Full Compliment of Rotary Tools & Static Tool Holders
All Available Manuals
Specifications
| Manufacturer | DMG-Mori |
| Model | NLX2500SY/700 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 117815 |
| Machine Control | Mori-Seiki MSX-850 IV |
| Chuck Sizes Main / Subspindle | 10" Hyd. Chk / 6" Hyd. Chk |
| Maximum Turning Diameter | 14.4" |
| Maximum Swing over Bed | 36.4" |
| Maximum Swing Over Cross Slide | 23.2" |
| Maximum Cutting Length | 27.7" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | +/- 1.9" |
| Z-Axis Travel | 31.3" |
| B-Axis Travel (Subspindle) | 28.9" |
| C-Axis Rotation | .001 Degrees |
| Main & Subspindle Speeds | 4,000 RPM / 6,000 RPM |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.5" / 3" |
| Subspindle Nose / Bore / Bar Capacity | A2-5" / 1.7" / 1.25" |
| Rotary Tool Speed / Rotary Motor | 10,000 RPM / 7.5 HP |
| Spindle Motor / Sub Spindle Motor | 25 HP / 15 HP |

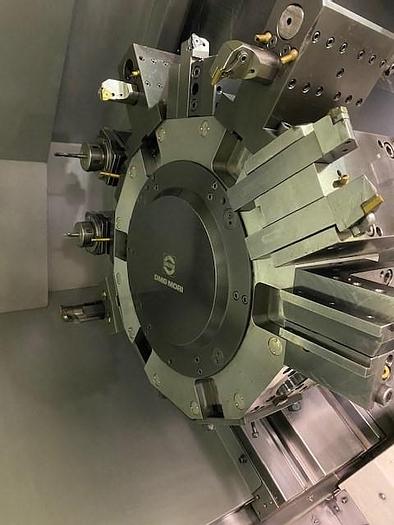

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions LxWxH | 122" x 80" x 84" |
| Machine Weight | 13,640 lbs |
