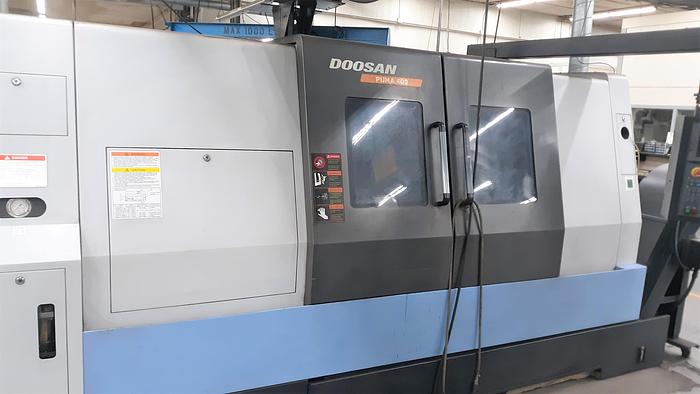

2009 Doosan Puma 400C
No longer available
2009 Doosan Puma 400C
$69,900 (USD)
Pennsylvania
Description
Tool Presetter
Tailstock
Chip Conveyor
Coolant System with Tank & Pump
Boxed Ways
Geared Headstock
RS 232 Port Interface
All Available Manuals
Miscellaneous Tooling

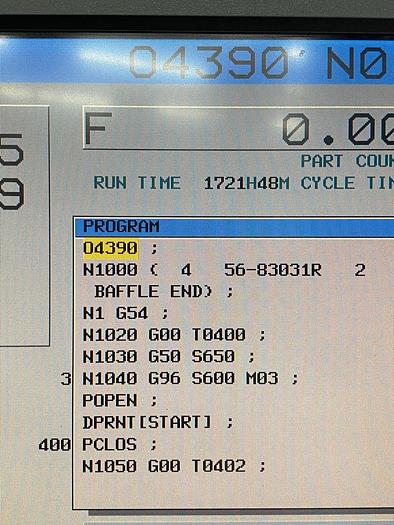

ONLY 1,721 Run Hours

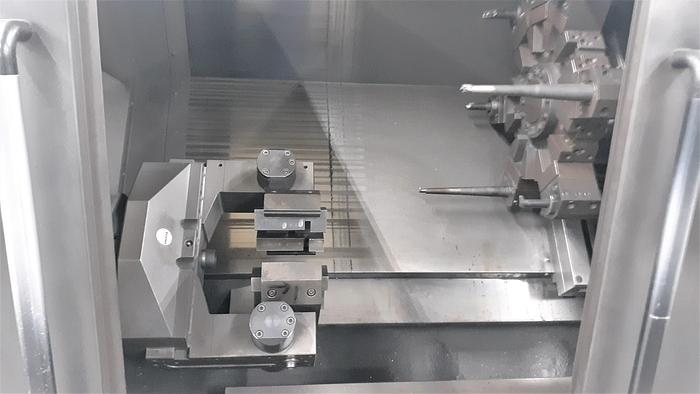

*The Chuck Seen in Photos is a Specialized Fixture that was used for their parts and is not included

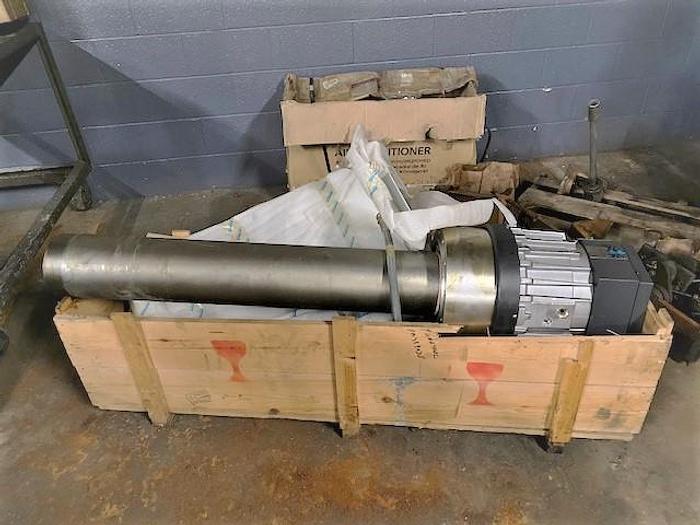

*The orginal machine acutator/drawtube assembly is present at the facility and could be reassembled on machine, will still need a 18" Samchully chuck
Specifications
| Manufacturer | Doosan |
| Model | Puma 400LC |
| Year | 2009 |
| Condition | Used |
| Stock Number | 117813 |

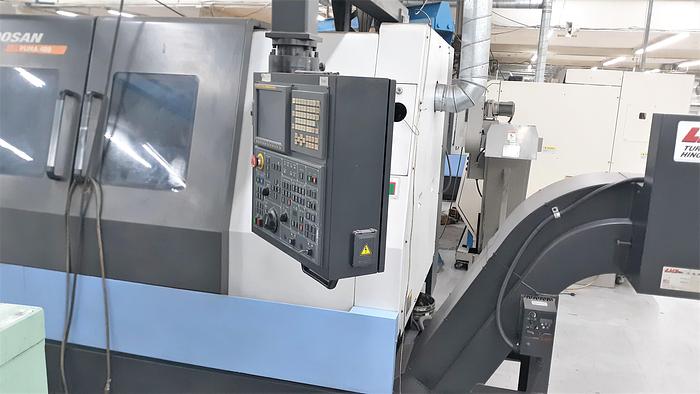

| Machine Control | Fanuc 21i-TC |
| Chuck Size | No Chuck |
| Maximum Swing over Bed | 30.3" |
| Maximum Turning Diameter | 22.4" |
| Maximum Turning Length | 44.7" |
| Distance Between Centers | 44.7" |
| X-axis travel | 14.3" |
| Z-Axis Travel | 43.5" |
| Spindle Nose / Bore / Bar Capacity | A1-15" / 7.1" / 6.5" |
| Spindle Speed | 15 - 1,500 RPM |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 550 IPM / 710 IPM |
| Tailstock Body Travel / Quill Travel | 40.3" / 4.72" |
| Machine Dimensions LxWxH | 160" x 86" x 92" |
| Machine Weight | 20,000 lbs |
