2008 Doosan/Daewoo Puma 300LC
No longer available
2008 Doosan/Daewoo Puma 300LC
$59,500 (USD)
Pennsylvania
Description
Programmable Tailstock Chip Conveyor
Tool Presetter
Geared Headstock Coolant Tank with Pump RS 232 Port Interface 3.5" Floppy Disk Drive Interface Wired 220V Electrics
Boxed Way Construction All Available Tooling All Available Manuals
ONLY 1,469 Cutting Hours
*The Chuck Seen In Pictures Was Specialized For Their Work And Will Not Be Included With Machine
*Machine has a non through hole actuator
Specifications
Manufacturer | Doosan/Daewoo |
Model | Puma 300LC |
Year | 2008 |
Condition | Used |
Stock Number | 117812 |

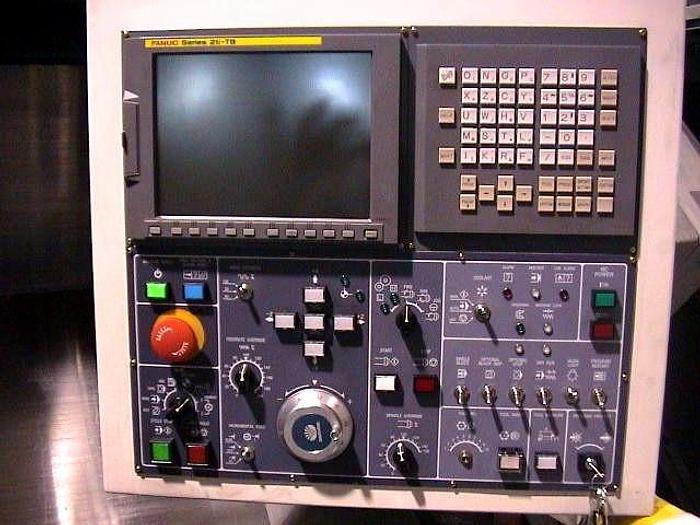

Control | Fanuc 21i-TB |
Chuck Size | No Chuck |
Maximum Swing over Bed | 23.2" |
Maximum Swing Over Cross Slide | 17.7" |
Maximum Turning Diameter | 15.7" |
Maximum Turning Length | 52.8" |
Maximum Bar Capacity | 4.05" |
X-Axis Travel | 11.1" |
Z-Axis Travel | 52.4" |
Spindle Nose / Spindle Bore | A2-11" / 4.53" |
Spindle Speeds | 28 - 2,800 RPM |
Spindle Motor | 35 HP |
Transmission | 2 Speed Gearbox |

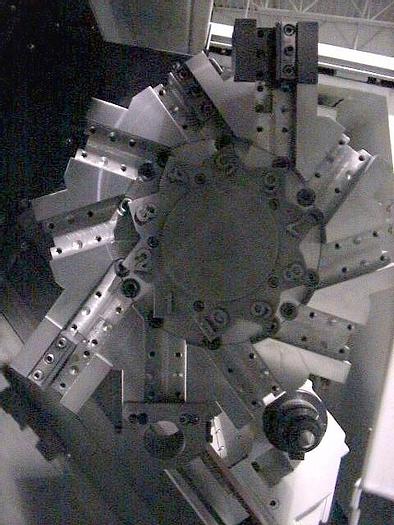

Number of Turret Positions | 12 Position Turret |
Rapid Traverse Rates X/Z | 787 IPM / 945 IPM |

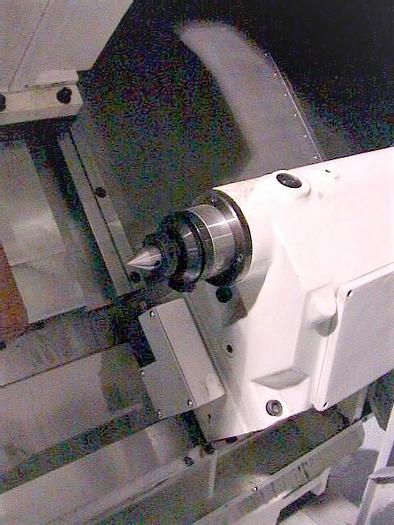

Tailstock Quill Diameter / Travel | 3.94" / 4.7" |
Machine Dimensions | 150" (168" with chip conveyor) x 77" x 80" |
Machine Weight | 15,000 lbs. |
