2014 Haas ST30Y
No longer available
2014 Haas ST30Y
$89,950 (USD)
Texas
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

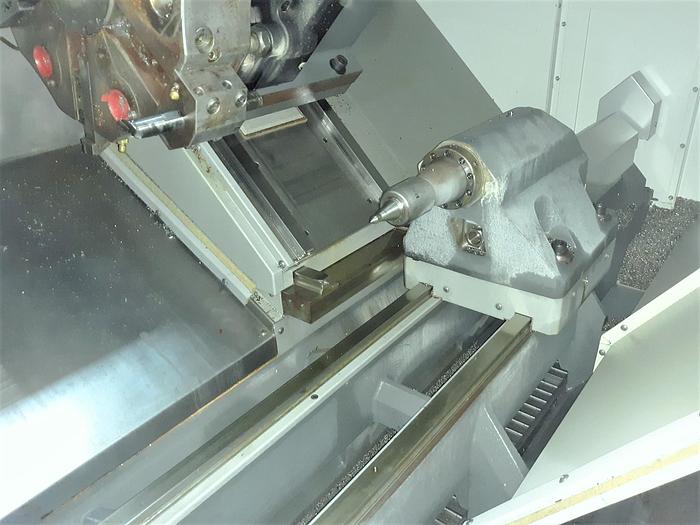

Programmable Tailstock
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tool Presetter
Parts Catcher
Visual Part Programming System
Spindle Orientation
Rigid Tapping
User Definable Macros
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Assortment of Static Tool Blocks
*As of July 2021 Feed Cutting Time of JUST 571 Hours
*Replacement Cost as Equipped $160,000
*Used Primarily on Aluminum, Plastic, Stainless
Specifications
| Manufacturer | Haas |
| Model | ST30Y |
| Year | 2014 |
| Condition | Used |
| Stock Number | 117810 |

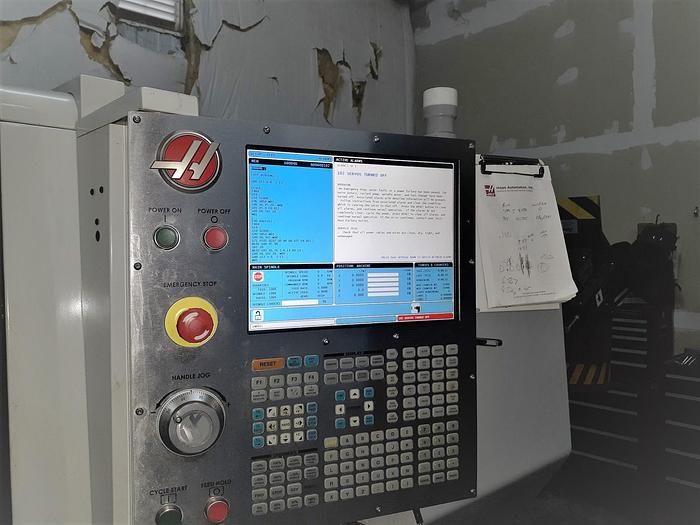

| Machine Control | Haas CNC Control |
| Chuck Size | 10" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 13.75" |
| Maximum Machining Length | 32.5" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 9.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 32.5" |
| C Axis Spindle Rotation | .001 Full C Axis Rotation |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 30 - 3,400 RPM |
| Spindle Motor | 30 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |

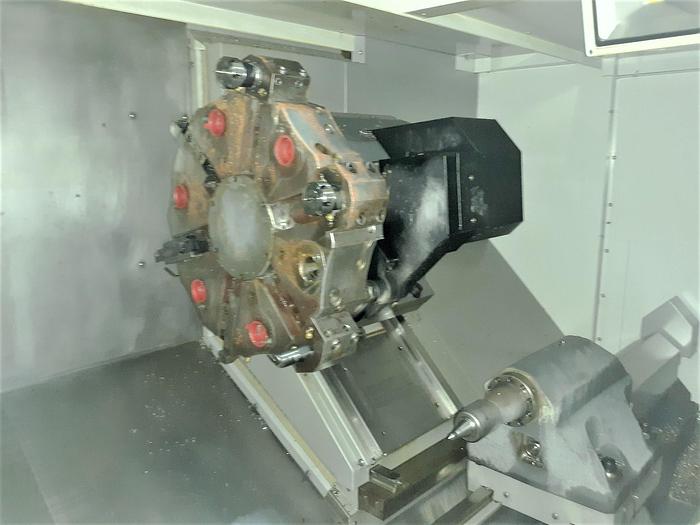

| Number of Turret Positions | 12 Station w/ BMT65 Type Holder type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Body Travel / Taper | na / MT #4 |
| Machine Dimensions | 171" x 90" x 98" |
| Machine Weight | 14,300 lbs. |
