2013 Haas EC-400
No longer available
2013 Haas EC-400
$119,750 (USD)
Iowa
Description
Full 4th Axis Rotary Table
30 Station Tool Changer
High Pressure Coolant Thru the Spindle - 1,000 PSI
Renishaw Wireless Intuitive Probing System
12,000 RPM Spindle
Auger Style Chip Conveyor
4th Axis Rotary Scales
Compensation Tables
Second Home Position
Remote Jog Handle
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Part Program Storage
Rigid Tapping
CNC Cabinet Cooler
Window Air Blast
HaasDrop
Haas Connect Remote Monitoring
Wifi Connection for Haas Control
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Wired 195-260V Electrics
All Available Manuals

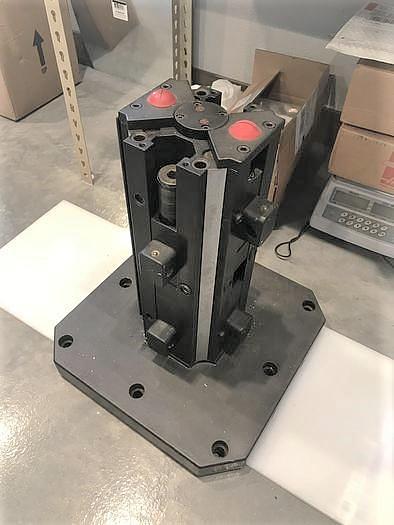

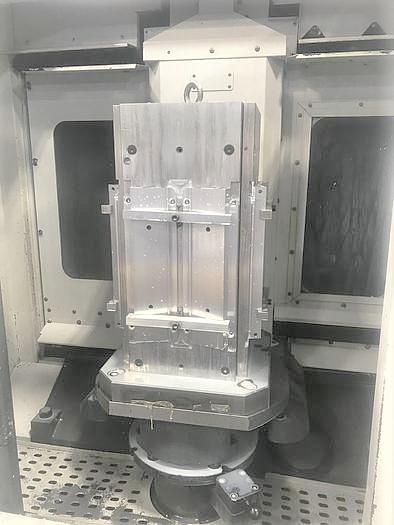

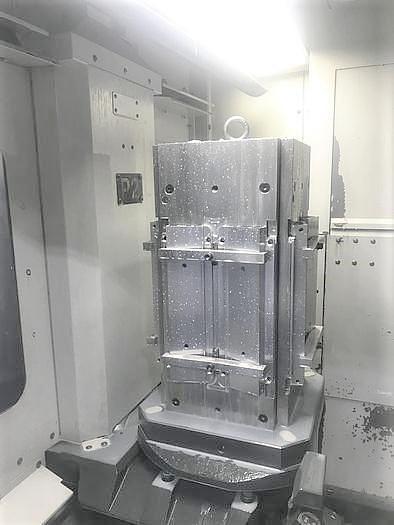

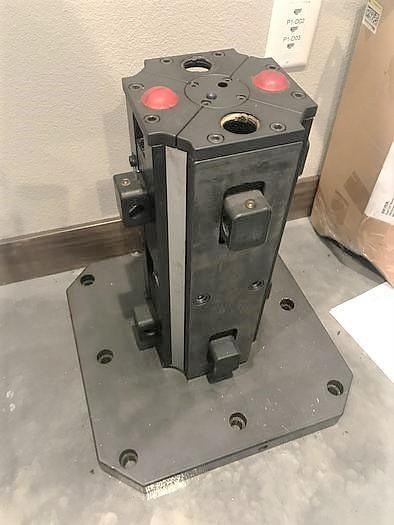

Includes Tombstones
New in August of 2013
ONLY 11,446 Cycle Start Hours
Just 4,985 Feed Cutting Hours
Specifications
Manufacturer | Haas |
Model | EC-400 |
Year | 2013 |
Condition | Used |
Stock Number | 117807 |
Machine Control | Haas NextGen Control |
Table Size / Number of Pallets | 15.75" x 15.75" / 2 Pallet Changer |
Maximum Table Load | 880 lbs |
Pallet Indexing | .001 Degrees Full 4th |
X-Axis Travel | 22" |
Y-Axis Travel | 25" |
Z-Axis Travel | 22" |
Spindle Speed | 12,000 RPM |
Spindle Taper | CAT 40 |
Spindle Motor | 30 HP Vector Direct Drive |
Tool Magazine Capacity | 30 Station Tool Changer - Side Mounted |
Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs |
Rapid Traverse Rates | 1,400 IPM |
Cutting Feedrates | 833 IPM |
Machine Dimensions LxWxH | 176" x 92" x 96" |
Machine Weight | 17,520 lbs all together |
